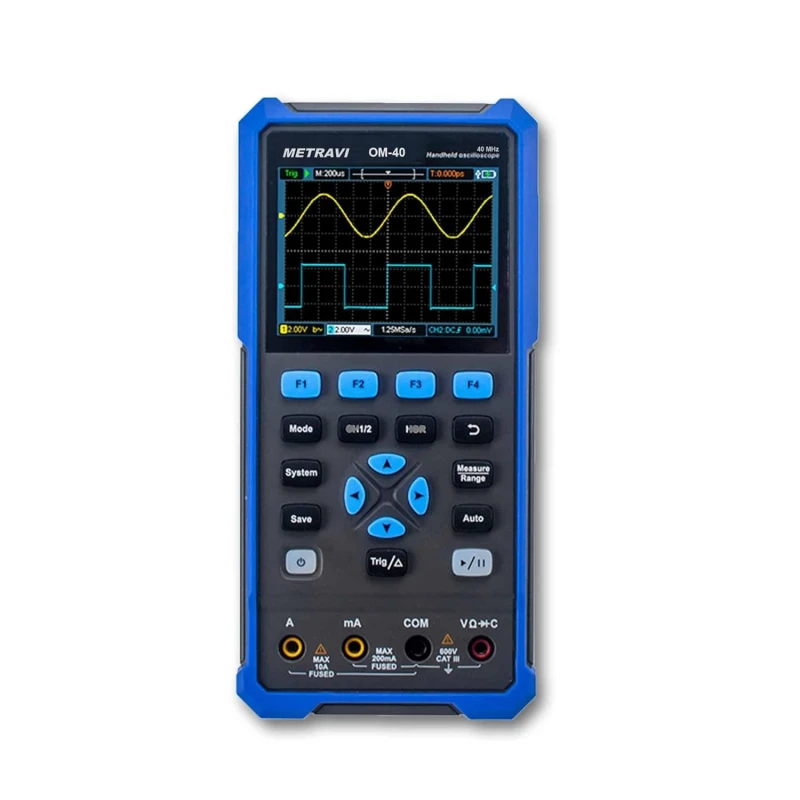

Metravi Handheld Oscilloscope OM-40
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi OM-40 Handheld Oscilloscope / USB Cable / Passive Probes / Crocodile Clip Cable / Multimeter Test Leads / Probe Correction Adjustment Knife / User Manual / Carrying Case |
| Max Input Voltage | 400V(DC+AC PK-PK 1MΩ input impedance 10 |
| Power Consumption | Less than 5W |
| Display Type | 3.5-inch color LCD |
| Brand | Metravi |
| Power Supply | 100–240VAC RMS 50/60Hz CAT II/DC input 5VDC 2A |
| Operating Temperature | 0°C–40°C |
| Dimensions | 198mm×96mm×38mm |
| Storage Temperature | -20°C–60°C |
| Battery | 2×2200mAh(3.7V 18650) |
| Calibration Interval | 1 year recommended |
| Humidity | ≤90% |
| Model | OM-40 |
| Weight | Approx.0.6kg(without battery) |
| Bandwidth | 40MHz |
| Communication Interface | USB Type-C |
| Display Resolution | 320×240 pixels |
| Input Impedance | 1MΩ±2% parallel with 16pF±10pF |
| Cooling Method | Natural Cooling |
| Operating Height | 3000m |
| Sample Rate | 250MSa/s |
| Channels | 2-CH oscilloscope |
| Record Length | 8K |
| Input Coupling | DC/AC/Ground |
| Trigger Modes | Auto/Normal/Single |
| Vertical Resolution | 8 bits |
| Trigger Type | Edge |
| Display Color | 65536 colors |
| Contrast | Adjustable |
| Non-Operating Height | 15000m |
| Acquisition Mode | Normal/Peak detect |
| Waveform Refresh Rate | 10000wfrms/s |
| Probe Attenuation Factors | 1X/10X/100X/1000X/10000X |
| Bandwidth Limit | 20MHz |
| Horizontal Scale | 5ns/div–1000s/div(step 1-2-5) |
| Vertical Sensitivity | 10mV/div–10V/div |
| Automatic Measurement | Frequency/Period/Amplitude/Max/Min/Mean/PK-PK |
| Cursor Measurement | ΔV/ΔT/ΔT&ΔV between cursors |
| Multimeter Max Resolution | 20000 counts |
| Multimeter Testing Mode | Voltage/Current/Resistance/Capacitance/Diode/Continuity test |
| Multimeter Input Impedance | 10MΩ |
| Multimeter Max Input Voltage | AC750V/DC1000V |
| Multimeter Max Input Current | AC10A/DC10A |
| Multimeter Diode Range | 0–2V |
Key Features
- Simultaneous monitoring and comparison of two signals.
- Portable and compact
- Intuitive controls and interface.
- Clear and vibrant display
- Various measurement functions to analyze signal characteristics.
- Trigger options for precise waveform captures.
- Recording and storing of data for further analysis.
Product Description
Metravi Handheld Oscilloscope OM-40, a compact, battery-powered digital oscilloscope ideal for field diagnostics and waveform analysis. It offers dual-channel input, real-time sampling, memory depth, and built-in multimeter functionality. Designed for engineers and technicians, the OM-40 delivers portability without compromising performance. Its clear color display, intuitive interface, and advanced triggering make it suitable for electronic servicing and embedded development. Reliable and easy to operate, directly from manufacturer at lowest price.
Available on EnvMart, these Oscilloscopes provide detailed visualization of electrical signals, essential for diagnostics, troubleshooting, and design in electronics and engineering. Metravi Oscilloscopes stand out for their accuracy, intuitive interface, and robust performance—ideal for labs, R&D, and field applications alike.
