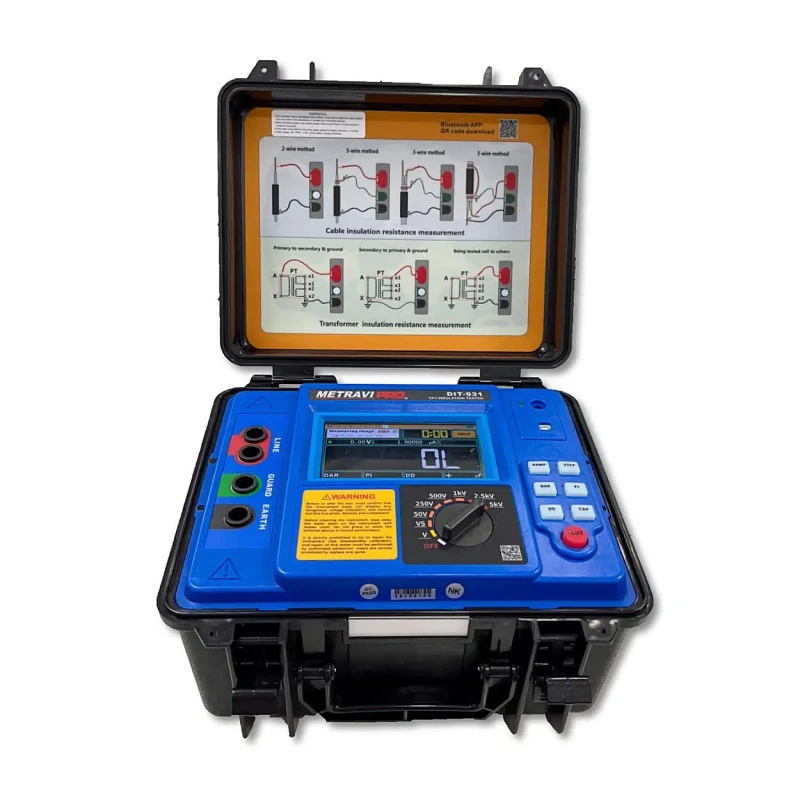

Metravi 5kV / 0.005M–10T Ohms High Voltage Digital Insulation Tester PRO DIT-931
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi PRO DIT-931 Digital Insulation Tester |
| Accuracy | ±5% |
| Current Range | 0.001nA–7.5mA |
| Capacitance Range | 10nF–200µF |
| Display | True Colour LCD Touchscreen |
| Brand | Metravi |
| Power | Rechargeable Li-Ion Battery 14.8V/6200mAh |
| Interface | USB |
| Product Type | Insulation Tester |
| Model | DIT-931 PRODIT931 |
| Certifications | IEC61010-1/IEC61326-1 |
| Functions | PI/DAR/DD/STEP/RAMP |
| Data Storage | 1000 Groups |
| Output Voltage Accuracy | (5%–10%)±10V |
| Rated Voltage | 50V/250V/500V/1000V/2500V/5000V |
| Insulation Resistance Range | 0.005MΩ–10TΩ |
| Automatic Discharge | Yes after test |
| Protection | IP65 Dust & Water Proof |
| Voltage Test Range | 10V–1000V DC/10V–700V AC |
| Short-Circuit Current | Greater than 7mA |
| Custom Voltage Output | 40V–5kV |
| Custom Setting Time | 10s–3600s |
| Test Timer Range | 0s–9999s with Auto Time Record |
Key Features
- Insulation resistance range up to 30TΩ (15kV)
- 20TΩ (10kV),10TΩ (5kV)
- Output rated voltage max reach 8 gears (50V,250V
- Max short circuit current 7mA
- Insulation resistance test (IR)
- Polarisation Index test (PI)
- Dielectric Absorption Ratio test (DAR)
- Ramp test mode (RAMP)
- Dielectric Absorption Ratio(DAR)
- Step Voltage(STEP) Measurement
- Dielectric Discharge Index(DD)
- Capacitance
- Voltage monitor function, automatically monitors the live voltage of the measured object
- Test timer function, automatically records the test time
- Automatic discharge function, the charge of the tested object is released automatically after the test
- utomatic shutdown function
Product Description
Metravi PRO DIT-931 is a high-accuracy 5kV insulation tester measuring from 0.005MΩ to 10TΩ, ideal for precise insulation resistance testing. It offers PI/DAR analysis, ramp testing, and programmable output voltages with real-time results on a large LCD. Auto-discharge and timer functions enhance operational safety. With built-in data storage, USB output, and durable build, it serves power utilities, electrical contractors, and R&D professionals conducting high-resistance and insulation quality tests. Available on EnvMart, these Insulation Testers are essential tools for verifying the integrity of electrical insulation in wiring, motors, and equipment—critical for ensuring operational safety and efficiency. Metravi Insulation Testers are respected for their high voltage testing capability, accuracy, and rugged design, making them a top pick for electrical professionals and maintenance engineers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The insulation resistance range of this model is from 0.005MΩ to 10TΩ.
It can provide programmable output voltages of 50V, 250V, 500V, 1000V, 2500V, and 5000V.
The accuracy of the insulation resistance measurements is ±5%.
The automatic discharge function releases the charge of the tested object automatically after the test is completed.
It features a true colour LCD touchscreen for displaying results.
The maximum short-circuit current is greater than 7mA.
Key functions include PI/DAR analysis, dielectric absorption ratio, ramp testing, and step voltage measurement.
It is powered by a rechargeable Li-Ion battery rated at 14.8V and 6200mAh.
The capacitance range is from 10nF to 200µF.
It is certified under IEC61010-1 and IEC61326-1 standards.
It has built-in data storage for up to 1000 groups of test data.
It has an IP65 rating, making it dust and water proof.
