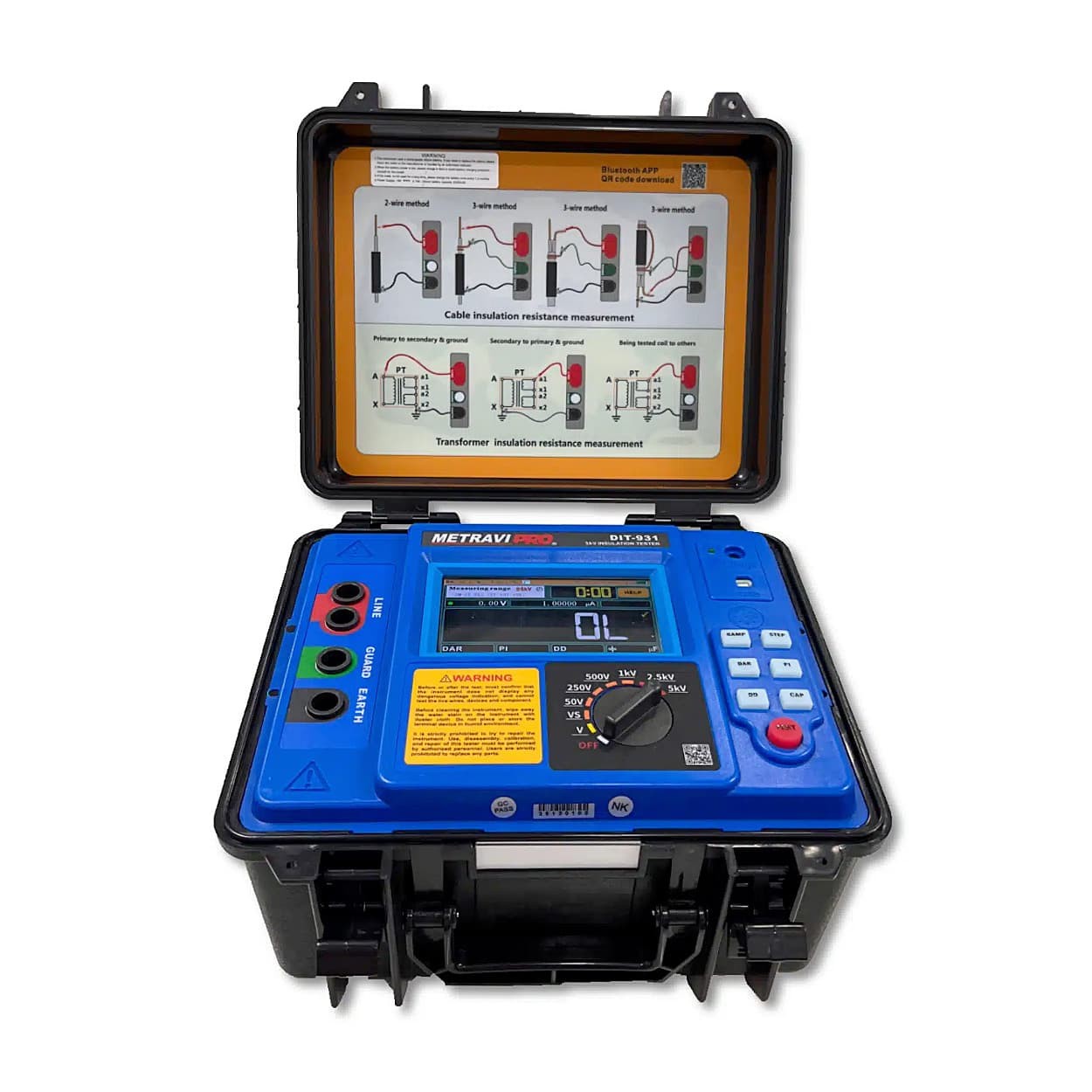

Metravi 5kV Digital Insulation Resistance Tester DIT-930
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi DIT-930 5kV Digital Insulation Resistance |
| Resolution | 0.01MΩ |
| Accuracy | ±3%rdg±5dgt |
| DC Voltage range | 0.1–1000V |
| AC Voltage Range | 0.1–750V |
| Capacitance Range | 10nF–50µF |
| Power Consumption | Standby30mA |
| Resistance Range | 0.01MΩ–10TΩ |
| Display | 4-digit large LCD with gray backlight |
| Brand | Metravi |
| Power | 12V Rechargeable Battery |
| Dimensions | 240×188×85mm |
| Alarm | Active when exceeding set threshold |
| Model | DIT-930 |
| Storage | -15°C~55°C Less than 90%RH |
| Weight | 2.72kg(incl.battery) |
| Insulation resistance | ≥50MΩ(between line & housing) |
| Functions | Insulation Resistance/Voltage/Current/Capacitance Test |
| Battery indicator | Low battery symbol display |
| DC Current range | 0.01nA–6mA |
| Safety Compliance | IEC61010-1 |
| Pressure Resistance | AC3kV/50Hz/1min |
| Auto Shutdown | After 15 minutes of inactivity |
| Rated Voltage | 100/250/500/1000/2500/5000V |
| Overflow Display | “OL” Symbol |
| Short-Circuit Current | ≥6mA |
| Absorption Ratio & Polarization Index | Available |
| Working Temp/Humidity | -10°C~50°C Less than 85%RH |
Key Features
- Multiple Test Voltages – 100 V to 5 kV.
- Wide Resistance Range – 0.01 MΩ to 10 TΩ.
- High Accuracy – ±3% ±5 digits.
- PI & DAR Testing – For insulation quality analysis.
- Data Storage – Stores up to 500 readings.
- USB Connectivity – For PC data transfer.
- Auto Discharge & Power Off – Enhances safety & saves battery.
- Multi-function – Measures voltage, current & capacitance too.
- Rugged Design – IP54-rated, shock and dust resistant.
- Certified Safe – CAT III 1000 V, IEC compliant.
Product Description
Metravi DIT-930 is a 5kV insulation tester designed to deliver accurate resistance measurements up to 1TΩ. It features programmable test voltages, PI and DAR functions, and auto-discharge safety. Ideal for motors, cables, and transformers, it includes a large LCD screen with real-time display and onboard memory for test logs. Rugged and portable, DIT-930 meets the needs of field engineers, maintenance teams, and QA labs requiring high-voltage insulation diagnostics.
Available on EnvMart, these Insulation Testers are essential tools for verifying the integrity of electrical insulation in wiring, motors, and equipment—critical for ensuring operational safety and efficiency. Metravi Insulation Testers are respected for their high voltage testing capability, accuracy, and rugged design, making them a top pick for electrical professionals and maintenance engineers.
