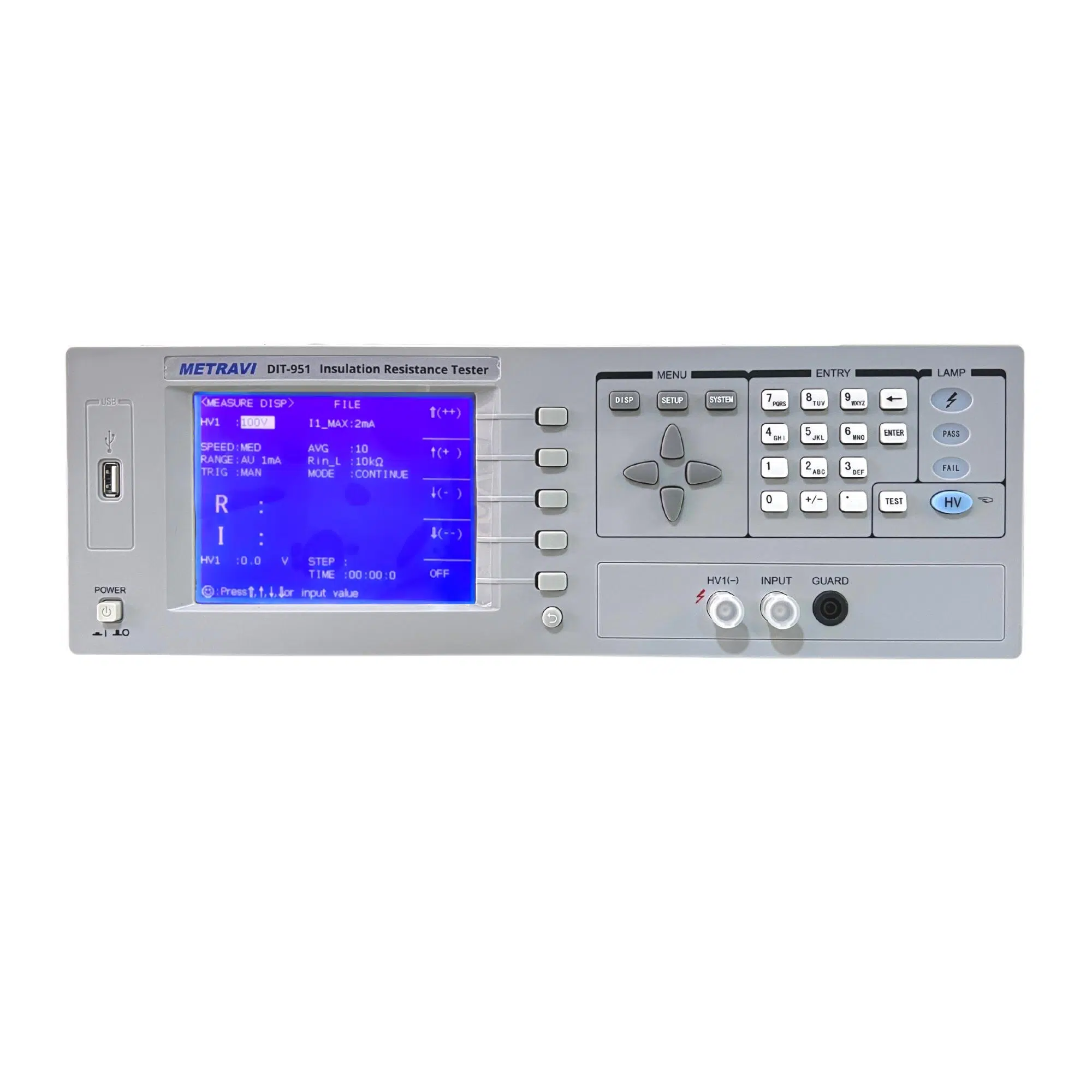

Metravi High-Precision Insulation Resistance Tester DIT-951
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi DIT-951 High-precision Insulation Resistance Tester |
| Power Consumption | DIT-950 250W |
| Brand | Metravi |
| Power Supply | 90–130V AC(60Hz)/198–260V AC(50Hz) |
| Operating Temperature and Humidity | 10°C–40°C≤90%RH |
| Dimensions | 430mm×400mm×130mm |
| Model | DIT-951 |
| Weight | DIT-950 14kg |
| Discharge Time | tequal to0.03×Cx(in μF) when Vtest falls to 1% of test level |
| Resistance Test Range | 10kΩ–100TΩ |
| Accuracy(Test Currentgreater Than 100Pa) | 2% |
| Accuracy(Test Current≤100Pa) | 2%±Vtest/2pA |
| Accuracy(General) | 2%±2pA |
| Measurement Voltage Range | 10–1000V 1V resolution |
| Measurement Voltage Accuracy | 2% of readout or ±1V |
| Source Resistance | 200Ω |
| Current Limit | 2/25/100mA |
| Timing Programmable Charge Time | 0–1000s |
| Measurement Delay | 0–1000s programmable |
| Discharge Resistance | 2kΩ |
| Comparator | 4 bins(3 PASS 1 FAIL) |
| Range Mode | Auto Hold |
| Average Times | 1–100 |
| Measurement Speed Trig Mode | Single measurement Less than 100ms(exclude charge time) |
| Average Mode | Up to 100 measurements Less than 100+(N–1)×100ms(exclude charge) |
| Continuous Mode | Direct readout 100ms–10000ms depending on average number |
Key Features
- 320×240 dot-matrix LCD
- Powerful charging function
- High speed measurement:100meas/sec
- High measurement accuracy:±2% (< 1TΩ )
- Contact detection function for capacitive components
- Measurement range: DIT-950 : 10kΩ to 50T
- Ultra-low leakage current test: minimum current is
- 10pA, accuracy: 2% ±2pA
- Programmable sequence test mode
- R-T and I-T Curve test and display mode
- Auto store setup parameters
- Screen hardcopy to be saved as a BMP file to a U disk
- Automatically upgrade firmware by a U disk
- Selectable Chinese and English operation interfaces
- Achieve automatic test system by Handler interface
- Achieve remote control by RS232C and USB Device interface
- Support scanning interface for mass tests
Product Description
Metravi DIT-951 offers advanced insulation resistance measurement with high precision, supporting voltages up to 1000V. It is designed for applications like testing motor windings, transformer coils, and high-voltage cables. It includes digital DAR/PI testing, automatic discharge, and accurate leakage current readings. Built with a strong housing, backlit LCD, and ergonomic design, it’s suitable for field and lab environments. The DIT-951 combines safety, durability, and measurement accuracy, fulfilling the demands of modern electrical testing environments.
Available on EnvMart, these Insulation Testers are essential tools for verifying the integrity of electrical insulation in wiring, motors, and equipment—critical for ensuring operational safety and efficiency. Metravi Insulation Testers are respected for their high voltage testing capability, accuracy, and rugged design, making them a top pick for electrical professionals and maintenance engineers.
