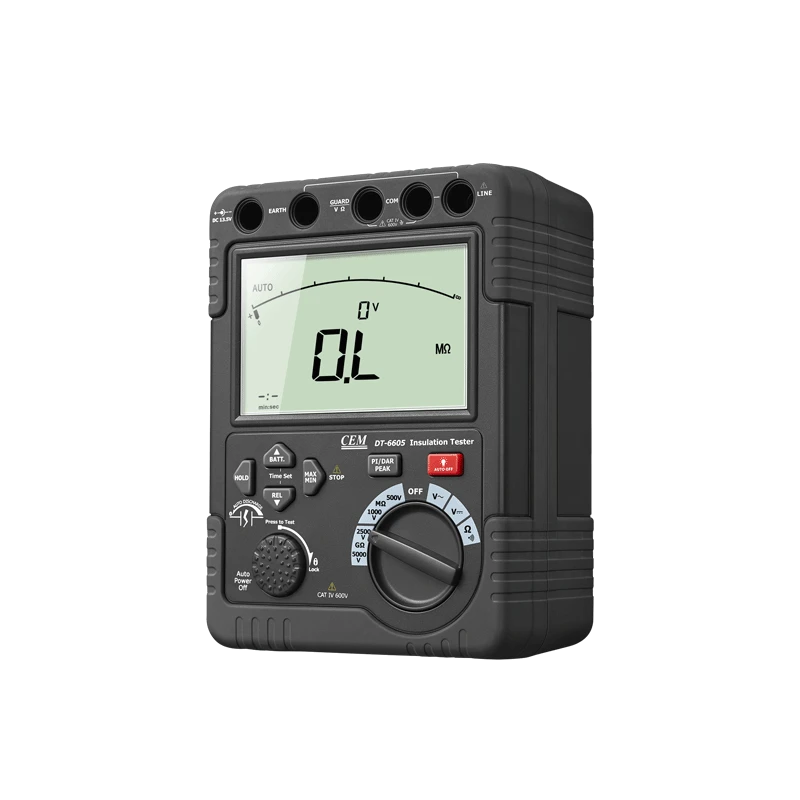

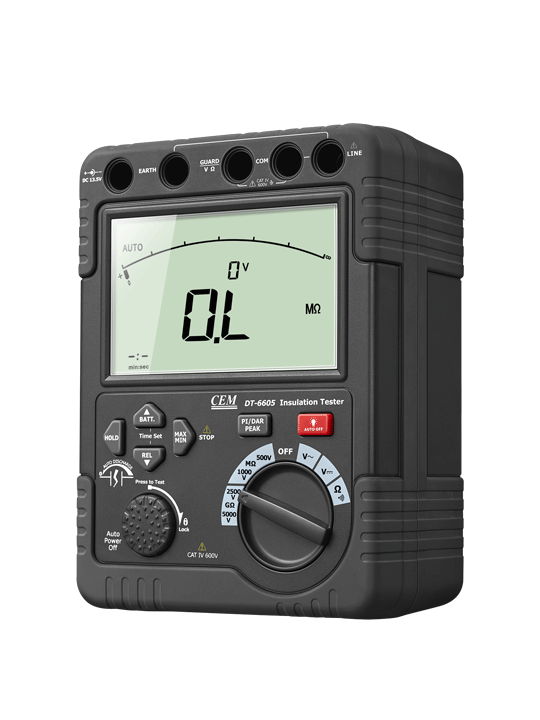

CEM Digital High Voltage Insulation Tester DT-6605
Specifications
| Country of Origin | China |
|---|---|
| Package Contents | CEM DT-6605 Digital High Voltage Insulation Tester / Test leads / Instruction Manual / 120V/250V AC adaptor |
| Accuracy | ±2.5%rdg±15d (0.005~600.0MΩ)/±3%rdg±15d (0.61~6.00GΩ)/±4%rdg±15d (6.1~60.0GΩ) |
| DC Voltage Range | 0.5~600.0V (Resolution |
| Display | 6000 Counts |
| Range | 500V/1000V/2500V/5000V |
| Brand | CEM |
| Power Supply | DC12V (R14x8) |
| Dimensions | 198x148x86 mm |
| Model | DT-6605 |
| Weight | Approx.1438 g |
| Safety Standard | IEC 61010-1 CAT IV 600V Pollution Degree 2 |
| Short Circuit Current | Approx.1mA |
| Rated current | 1~1.2mA (depending on load) |
| Current consumption | Approx.1000mA (during measurement) |
| Continuity Check | Buzzer sounds at 50Ω |
| Measuring range (Auto-ranging) | 500V-0.005~6.000MΩ 6.01~60.00MΩ 60.1~600.0MΩ 0.61~6.00GΩ 6.1~60.0GΩ/1000V-0.005~6.000MΩ 6.01~60.00MΩ 60.1~600.0MΩ 0.61~6.00GΩ 6.1~60.0GΩ/2500V-0.05~60.00MΩ 60.1~600.0MΩ 0.61~6.00GΩ 6.1~60.0GΩ/5000V-0.05~60.00MΩ 60.1~600.0MΩ 0.61~6.00GΩ 6.1~60.0GΩ |
| Withstand Voltage | 5320V AC for 5s |
| Open Circuit Voltage | DC 500V/1000V/2500V/5000V (+20% |
| Voltage Monitor Range | 5~6000VDC (Resolution |
| AC Voltage Range (40~400Hz) | 0.5~600.0V (Resolution |
Key Features
- n IEC 61010-1 (CATIV 600V Pollution degree 2)
- n IEC 61010-031 (Requirements for hand-held probes)
- 200mA Continuity
- Resistance : 0.1Ω to 6kΩ
- With auto-discharge function & voltage output warning function
- When insulation resistance like a capacitive load is measured, electric charges
- Stored in capacitive circuits are automatically discharged after measuring.
- Discharge can be checked with live voltage graph
- Backlight levels selector function to facilitate working at dimly illuminated
- location or at night time work
Product Description
CEM Digital High Voltage Insulation Tester DT-6605 is a high-performance insulation resistance meter for testing transformers, motors, and power cables. It offers multiple test voltages, a large backlit display, and superior accuracy. Built with industrial durability, it ensures long-term performance even under tough conditions. Essential for preventive maintenance, this insulation tester guarantees electrical safety, system reliability, and compliance with global insulation standards.
Available on EnvMart, these Insulation Testers are ideal for assessing insulation resistance in electrical installations and equipment. CEM Insulation Testers deliver high accuracy, safety, and reliability, making them essential tools for electricians, engineers, and maintenance professionals.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The CEM Digital High Voltage Insulation Tester DT-6605 has a measurement range of 0.005MΩ to 60.0GΩ across various test voltages: 500V, 1000V, 2500V, and 5000V.
The accuracy of the CEM DT-6605 is ±2.5%rdg±15d for the range of 0.005~600.0MΩ, ±3%rdg±15d for 0.61~6.00GΩ, and ±4%rdg±15d for 6.1~60.0GΩ.
The CEM DT-6605 complies with IEC 61010-1 CAT IV 600V and Pollution Degree 2 safety standards.
The CEM DT-6605 requires a DC 12V power supply, specifically using R14x8 batteries.
The dimensions of the CEM DT-6605 are 198x148x86 mm, and it weighs approximately 1438 g.
The CEM DT-6605 includes a continuity check feature that sounds a buzzer at 50Ω.
The open circuit voltage of the CEM DT-6605 is available at 500V, 1000V, 2500V, and 5000V, with a tolerance of +20%.
The package of the CEM DT-6605 includes the Digital High Voltage Insulation Tester, test leads, an instruction manual, and a 120V/250V AC adaptor.
The short circuit current of the CEM DT-6605 is approximately 1mA.
The voltage monitor range of the CEM DT-6605 is from 5 to 6000V DC.
The CEM DT-6605 features a display that can show up to 6000 counts.
The rated current for the CEM DT-6605 during measurements is between 1 to 1.2mA, depending on the load.
