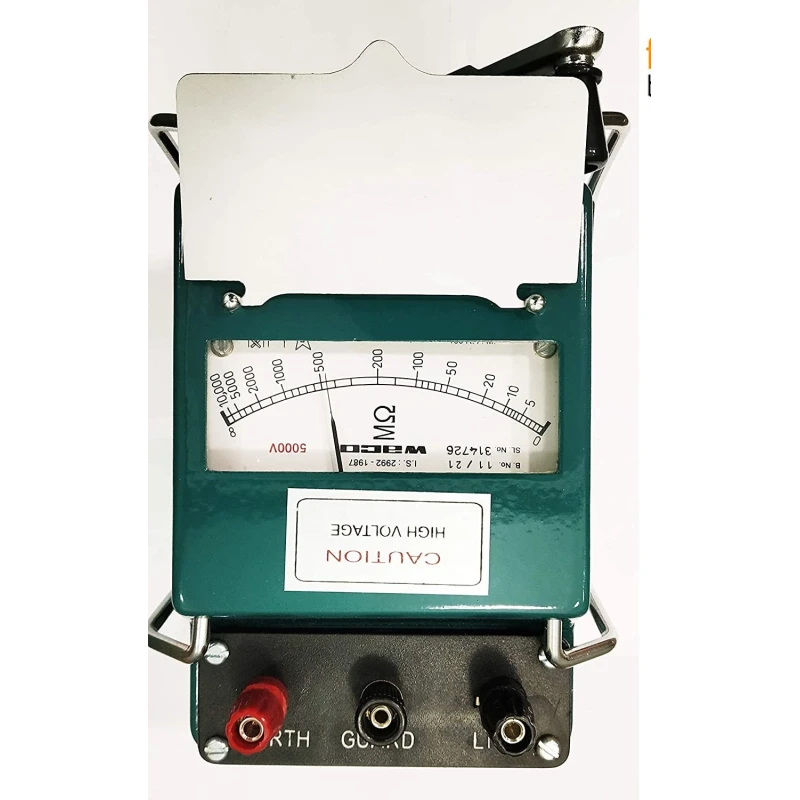

Waco 500 Volts Analogue Insulation Tester
Model
Ohms
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | As per ISS |
| Brand | Waco |
| Dimensions | 110x128x195 mm (Approx.) |
| Response time | 3 seconds |
| Weight | 2.5 Kg (Approx.) |
| Rotation Speed | 160 or more r.p.m. |
| Scale Length | 90 mm (Approx.) |
| High Voltage Test | Withstands minimum 2000 Volts or (Rated voltage+1000) Volts A.C. (rms) between the electrical circuit & handle for one minute |
| Insulation Resistance Test | Better than 50 Megohms at 5000 V D.C. between the electrical circuit & containing case |
Key Features
- Silent Generator
- Accurate & Quick response
- Confirms to ISS : 2992/1987
- Graceful Appearance
- High sensitive cross coil indicator
- Collapsible Driven Handle-fold back flush into casing when not in use
- Chuck nut locking arrangement to prevent anti Clock-Wise Rotation
- Centrifugal Clutch (Governor) For Constant Output Voltage
- Guard Terminal & an externally accessible infinity adjuster are provided for instrument having insulation range 1000 megohms & above.
- Housed in Anti- magnetic aluminium body
- Metallic Flap over Glass window
Product Description
The Waco WI-501 is a professional-grade analogue insulation tester designed for 500V applications. It is widely used for testing motor windings, switchgear, transformers, and other electrical apparatus. With a large analog display and rugged body, it offers consistent performance even in tough environments. The WI-501 ensures thorough insulation assessments and helps in preventing electrical hazards. Equipped with reliable internal circuits, it provides stable readings and fast response. Maintenance professionals appreciate its portability and ease of calibration, making it a staple in preventive maintenance kits. This tester supports insulation checks across a variety of electrical systems operating up to 500V.
Available on EnvMart, these Insulation Testers are perfect for checking the insulation resistance of electrical equipment. Waco Insulation Testers offer accuracy and reliability, making them ideal for both professional electricians and maintenance technicians.
