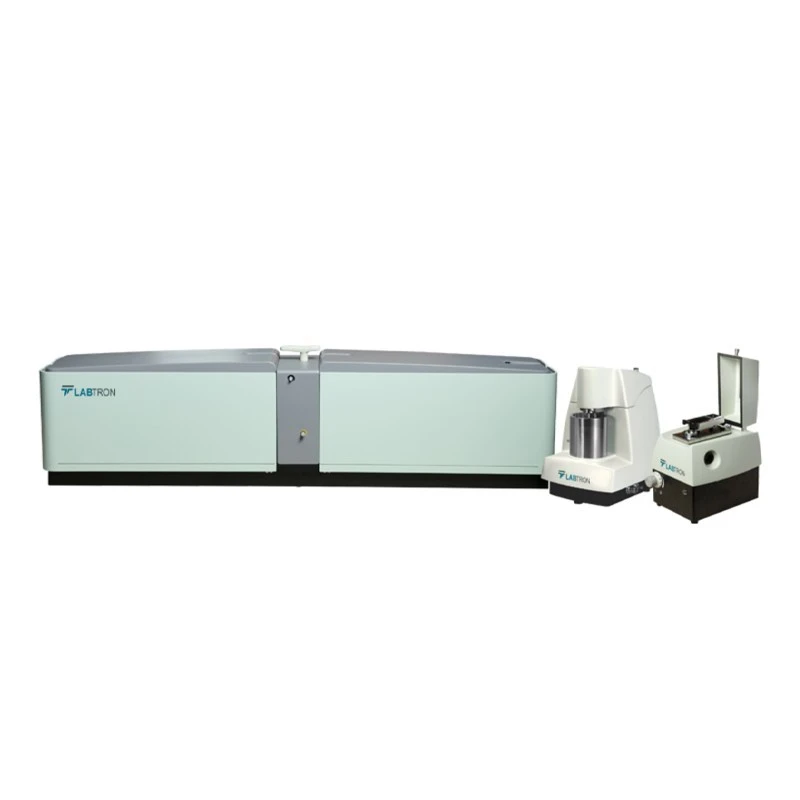

Labtron LLPA-C11 Laser Particle Size Analyzer
Specifications
| Country of Origin | UK |
|---|---|
| Repeatability | Less than 0.5% |
| Accuracy | Less than 0.6% |
| Measurement Range | Wet dispersion — 0.01 to 3600 µm / Dry dispersion — 0.1 to 3600 µm |
| Brand | Labtron |
| Net Weight | 178.60 kg |
| Light Source | Dual-color light source (red & blue) |
| Model | LLPA-C11 |
| Analysis Time | Within 10 seconds |
| Laser type | Imported red light He-Ne laser |
| Type of Product | Particle Size Analyzer |
| System | Three-dimensional system |
| Dispersion Type | Wet and Dry |
| Detection Angle Range | 0.016° to 140° |
| Number of Detection Channels | 103 |
| Particle Recognition | Nano / submicron / and other fine particles |
| Red Light Wavelength | 0.6328 µm |
| Blue Light Wavelength | 0.446 µm |
| Dry Dispersion Feeding System | Dispersive pressure — 0.05 to 0.5 MPa / Hopper volume — ≤30 ml / Sampling vibration — 0 to 12G / Motor Speed — 0 to 4000 r/min |
| Wet Dispersion Feeding System | Sample Volume — 500 ml / Circulation loop Flow rate — ≥2.5 L/min |
| Optical Bench Dimension (L×W×H) | 1570 × 415 × 450 mm |
| Sample Feeder Dimension (L×W×H) | Wet Dispersion — 520 × 340 × 435 mm / Dry Dispersion — 580 × 550 × 500 mm |
| Dust Collection Unit Dimension (L×W×H) | 420 × 420 × 760 mm |
| Air Compressor Dimension (L×W×H) | 800 × 490 × 870 mm |
Key Features
- Imported photoelectric detector
- Closed linear optical path design
- Wide measurement range and high-resolution
- Strong recognition ability
- Excellent repeatability and reproducibility
- Fully enclosed sample feeder
- Noise reduction function
Product Description
Laser Particle Size Analyzer LLPA-C11 features 103 detection channels and provides fast results within 10 seconds. Capable of measuring both dry and wet dispersion, allowing for easy and fast switching. Utilizing a dual-color light source, it enhances resolution, allowing accurate measurement from nano to submicron particles and larger ones. The system includes forward, lateral, and backward photodetectors in a three-dimensional setup. Built with a high-precision optical platform, the analyzer ensures exceptional stability and reliability.
Applications:
Our laser particle size analyzer measures the particle size distribution of powder, emulsion, and slurry. It is used in pharmaceuticals, chemical industries, food and beverage, cosmetics, mining and minerals, and others.
Standard Accessories:
- Mainframe × 1 piece
- Wet Dispersion Circulating sample feeding system × 1 piece
- Dry-dispersion sample feeding system × 1 piece
- Special test software × 1 piece
- Singal line × 2 pieces
- Mute pump × 1 piece
- Dust collection unit × 1 piece
- Power line × 2 pieces
- Polyethylene tube × 1 piece
- Rubber suction bulb × 1 piece
- Sampling spoon × 1 piece
- Lens paper × 1 piece
- User manual × 1 piece
- Transport package × 1 piece
- Air cleaning unit × 1 piece
Optional Accessories:
- Vacuum Cleaner
- Air Compressor
