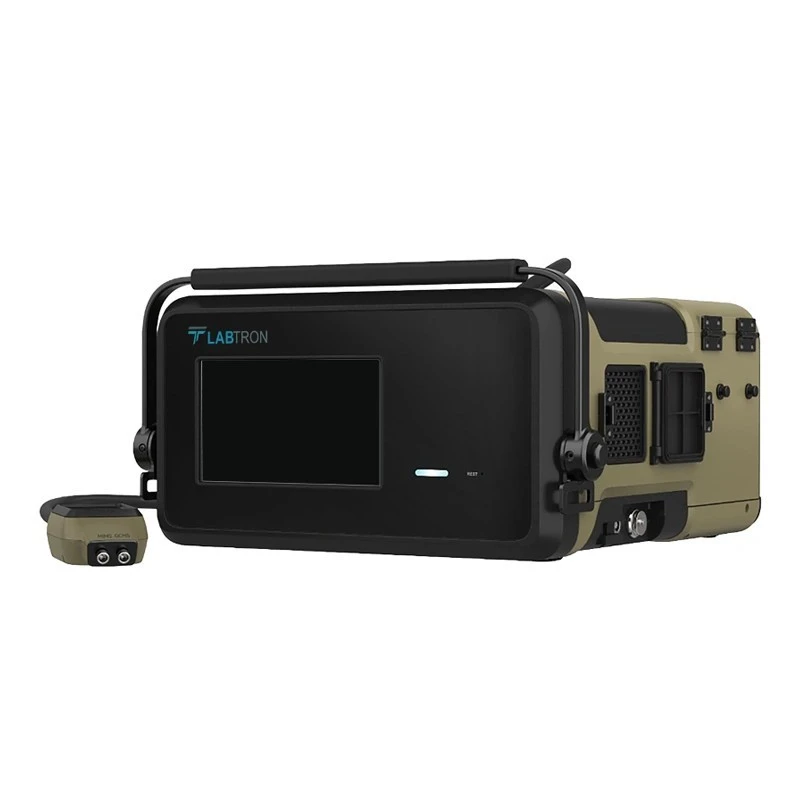

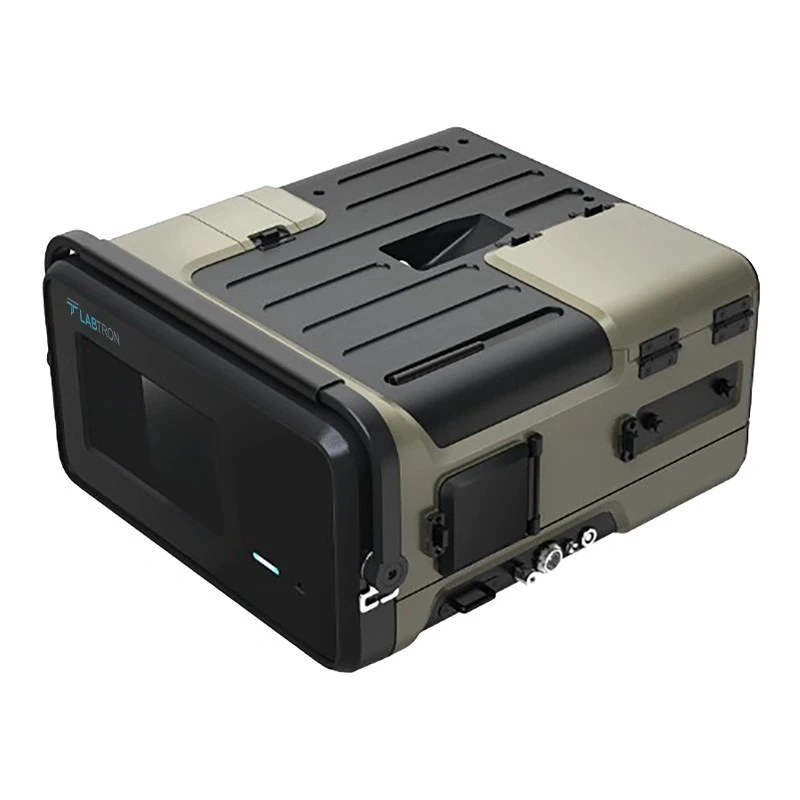

Labtron GC-MS-A10 Gas Chromatography Mass Spectrometry
Specifications
| Resolution | Greater than1 amu |
|---|---|
| Power Consumption | 140 W |
| Relative Humidity | 0% to 95% RH |
| Brand | Labtron |
| Power Supply | 220VAC ±10% / 50 Hz |
| Dimension | 221 × 429 × 440 mm |
| Net Weight | 19 Kg |
| Response time | ≤ 30s for 1 ppm Toluene |
| Storage Temperature | -20°C to 70°C |
| Detector | Electron multiplier tube |
| Recovery time | ≤ 30s for 1 ppm Toluene to minimize sample impact |
| Model | GC-MS-A10 |
| SENSITIVITY | Single MS - Toluene (5 mg/m³) S/N ≥ 10 / Sorbent Tube - Toluene (10 ppb) S/N ≥ 50 / Split Inlet - Octa fluor naphthalene (100 pg/µL) S/N ≥ 15 |
| Gross Weight | 21 Kg |
| Vacuum | ≤ 3000 µTorr |
| Environmental Temperature | -5°C to 45°C |
| Mass Range | 15 to 550 amu |
| Dynamic Range | 10⁷ |
| Database | NIST Standard Spectrum Library / AMDIS / NIOSH Database / Environmental Standards Reference Database |
| Ambient Pressure | Usable at 54 to 101.3 kPa / suitable for highlands |
| Packaging Dimension | 600 × 600 × 350 mm |
| Injection Modes | Single MS / sorbent tube / quantitative ring injection |
| Scanning Modes | Full Scan / SIM / and MS/MS |
| Ion Source | EI source with 70 eV ionization energy |
| Quality Analyzer | Ion trap mass analyzer |
| Anti-Vibration Grade | Yes |
| Waterproof Grade | Yes |
| Automatic Tuning | Auto-calibration on the main unit’s mass axis |
| Calibration Function | Real-time internal standard calibration |
| Pre-Sampling Function | Prevents dead volume impact on analysis |
| Blowback Function | Clears residue from sorbent tubes post-analysis |
| Carrier Gas | Built-in helium gas bottle |
| Sampling Flow | Electronically controlled and adjustable |
| Positioning System | GPS and BeiDou dual-mode / real-time tracking |
| Communication Mode | LAN and Wi-Fi enabled |
| Data Acquisition | Built-in IPC with touch screen human-machine interaction |
| Data Processing | Built-in IPC (touch screen) / External PC (keyboard and mouse interaction) |
Key Features
- Whole heat tracing technology
- Built-in battery and carrier gas
- Rapid VOC/SVOC analysis
- Fast MS direct injection response
- Parallel sorbent tube/loop design
- Trolley with shock-absorbing module
- Vehicle-ready with quick warm-up
- Multiple injection modes: sorbent tube, MS injection, headspace, and SPME
Product Description
Gas Chromatography Mass Spectrometry GC-MS-A10 operates with a mass range of 15 to 550 amu, ensuring precise analysis. It features a portable design, weighing under 19 kg, allowing easy on-site use. The intelligent wizard-operated software system and multiple injection modes, including sorbent tube and MS direct injection, provide versatility for varied analytical needs. Its waterproof, dustproof, and earthquake-resistant design ensures reliable performance. This GC-MS is ideal for rapid qualitative and quantitative analysis of organic compounds.
Applications:
Gas Chromatography Mass Spectrometry is widely used for the precise analysis of volatile and semi-volatile organic compounds in fields like environmental monitoring, forensic investigations, pharmaceutical research, and industrial quality control.
Standard Accessories:
- Built-in adsorption thermal desorption module host × 1 set
- sampling probe × 1 set
- single-shoulder strap × 1 set
- external tuning standard sample × 1 set
- host storage case × 1 set
- He gas (10pcs/box) × 1 box
- Tedlar gas bag (1L) × 5 pieces
- gas bottle anti-falling rack × 1 set
- SPME handle × 1 piece
- 20mL clear glass sample bottle × 7 pieces
- SPME fiber PDMS/DVB coating × 1 box (3 sticks/box)
- host installation acceptance package × 1 set
- engineering pre-installed accessories × 1 set
- SPME injection kit storage case × 1 set
- 0.5μL micro syringe × 1 piece
- 1.0mL gas-tight syringe × 1 piece
- syringe injection kit storage case × 1 set
Optional Accessories:
- SPME comprehensive pre-treatment instrument × 1 piece
- SPME comprehensive pre-treatment instrument consumables package × 1 piece
- headspace injection system × 1 piece
- headspace installation acceptance package × 1 piece
- 40 mL clear glass sample vial × 100 pieces
- portable GC-MS dynamic dilution instrument × 1 piece
- portable GC-MS dynamic dilution instrument engineering package × 1 piece
- air bag negative pressure sampling kit × 1 piece
- PTFE hydrophobic filter membrane × 50 pieces
- portable GCMS special car × 1 piece
- vehicle-mounted shock absorption platform × 1 piece
- mobile power × 1 piece
