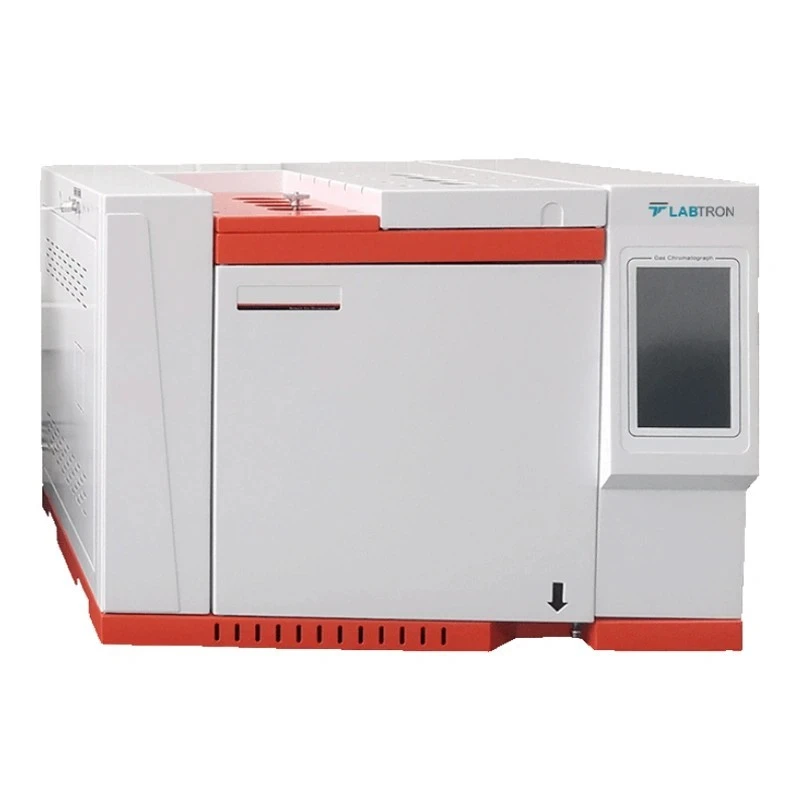

Gas Chromatography EGC-B13
Specifications
| Resolution | 0.001 psi |
|---|---|
| Temperature Accuracy | ± 0.1 °C |
| Brand | Generic Brand |
| Power Supply | 220V±10% |
| Dimension | 65 × 48 × 55 cm |
| Model | LGC-B13 |
| Weight | 50 Kg |
| Temperature Control | 200 °C |
| Temperature Control Range | Room Temperature to 450 °C |
| Display function | Fault Information / Power Failure Storage Protection / Keyboard Lock / Anti-Power Supply |
| Communication Interface | Ethernet / IEEE802.3 |
| Atmospheric pressure | 0 to 1035 kPa (0 to 150 psi) |
| Capillary Columns | 2 × 80m |
| Gas Types | He / N₂ / H₂ / Ar |
| Injection Pressure | Less than10Mpa |
| Temperature Increments | 1 °C |
| Temperature Program | 16 level |
| Temperature Rise Rate | 0.1 to 80 °C/min |
| Programmable Cooling | 450 °C to 50 °C |
| Network Interface | RJ45 |
| Hydrogen Flame Detector | Mt ≤ 3×10⁻¹² g/s (N-hexadecane) |
| Injection Systems | Filled Column / Capillary Split/Non-Split |
| Internet Connectivity | Long-Distance Data Transmission / Remote Control / Remote Diagnosis / Automated Program Upgrades |
| Main Frame Size | 510 × 500 × 540 mm |
| Column Oven Volume | 300 × 280 × 170 mm³ |
Key Features
- Integrates Internet communication technology
- Utilizes a new integrated digital electronic circuit
- Equipped with advanced flow controller carrier and autosampler
- Innovative inlet port design resolves inlet discrimination issues
- Double column compensation function mitigates background noise effects
- Incorporates a unique vapor chamber design with a smaller dead volume
- The back door system enables step-less variable control of inlet and outlet air volume
- Equipped with a robust power-on self-diagnostic function
Product Description
Gas Chromatography LGC-B13 is equipped with a spacious column oven measuring 300 × 280 × 170 mm³, allowing the simultaneous accommodation of two 80m capillary columns. It features comprehensive microcomputerized key operation with a 5.7-inch 13-line LCD display, ensuring user-friendly interactions. The network anti-control capabilities enable multifaceted network control, including network remote control. Additionally, it provides anti-control features for temperature, pressure, data, and bridge current, ensuring precision and protection against unauthorized manipulation.
Applications:
Ideal for analyzing trace toxic compounds, conducting environmental monitoring and research, and is extensively utilized in petrochemistry, environmental protection, epidemic prevention, pharmacology, and scientific research.
Standard Accessories:
- • FID Detector: Mt <1×10⁻¹²g/s (n-Hexadecane), Sensitivity drifting <0.2mv/h, Linearity >10⁶.
- • TCD Detector: S > 10000mv.ml/mg (N-hexadecane), Sensitivity drifting <20uv, Linearity >10⁴.
- • ECD Detector: Mt < 1 ×10⁻¹³g/ml (r-666), Sensitivity drifting <15uv, Linearity >10⁶.
- • FPD Detector: Mt < 2×10⁻¹¹g/s (S in thiophene), Mt < 1×10⁻¹¹g/s (P in methyl parathion), Sensitivity drifting 3% of full scale, Linearity >10³.
Optional Accessories:
- • Automatic/Manual Gas Six-Way Injection Valve Injector
- • Headspace Injector
- • Thermal Analysis Injector
- • Cracking Furnace Injector
- • Methane Conversion Furnace
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The temperature control range of this model is from Room Temperature to 450 °C.
This unit has dimensions of 65 × 48 × 55 cm and weighs 50 Kg.
It is compatible with helium (He), nitrogen (N₂), hydrogen (H₂), and argon (Ar) as carrier gases.
The maximum injection pressure for this gas chromatography system is less than 10 Mpa.
It can accommodate two 80m capillary columns simultaneously.
The resolution capability is 0.001 psi.
This unit features Ethernet and IEEE802.3 communication interfaces.
The temperature accuracy of this model is ± 0.1 °C.
The temperature rise rate can be set between 0.1 to 80 °C/min.
It can cool from 450 °C to 50 °C programmably.
It incorporates internet connectivity for long-distance data transmission, remote control, remote diagnosis, and automated program upgrades.
