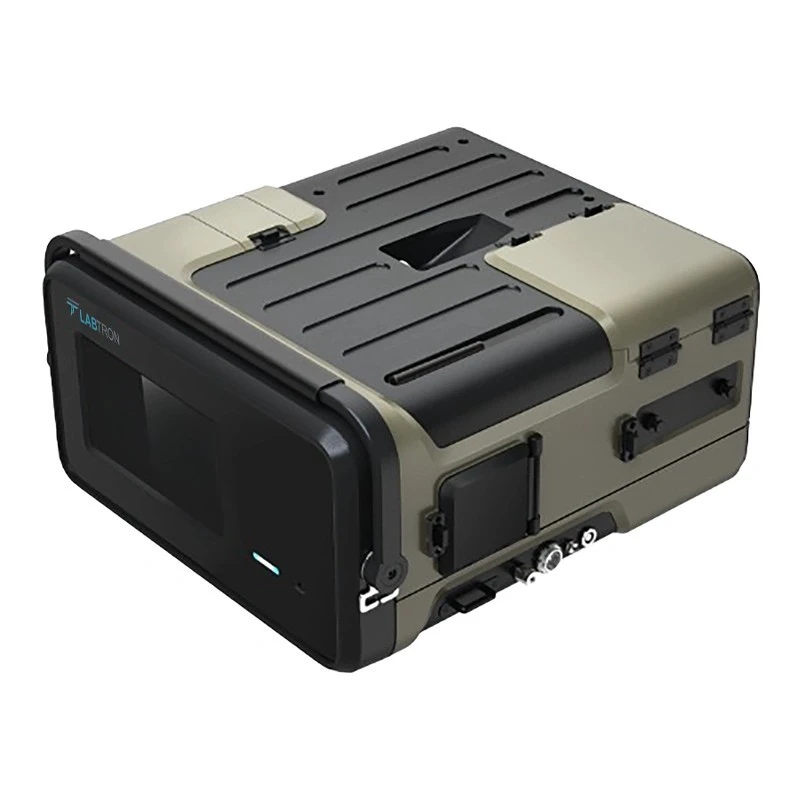

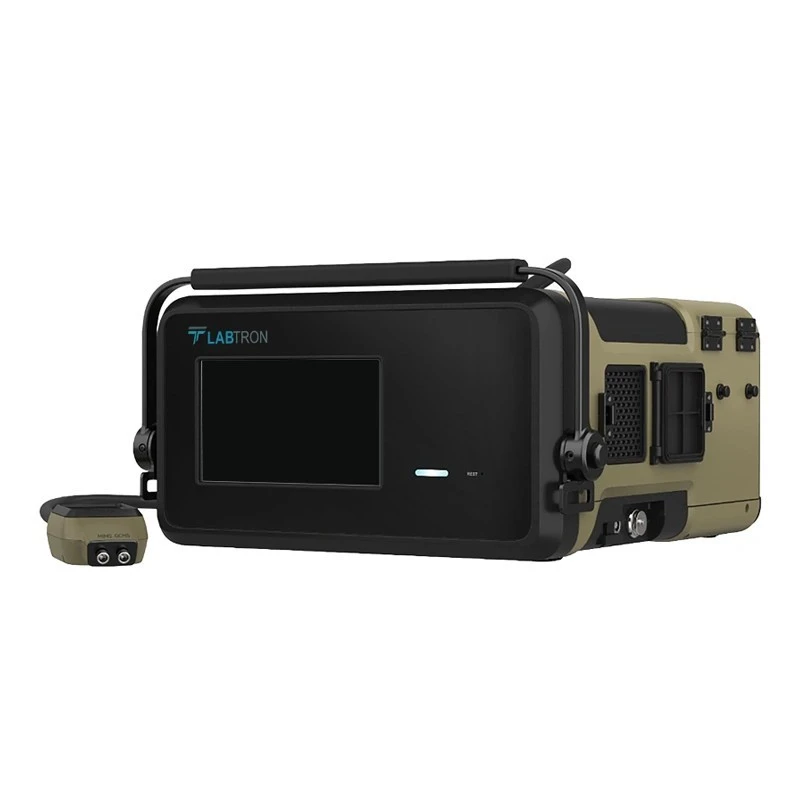

Gas Chromatography Mass Spectrometry GC-MS-A10
Specifications
| Resolution | Greater than1 amu |
|---|---|
| Power Consumption | 140 W |
| Relative Humidity | 0% to 95% RH |
| Brand | Generic Brand |
| Power Supply | 220VAC ±10% / 50 Hz |
| Dimension | 221 × 429 × 440 mm |
| Net Weight | 19 Kg |
| Response time | ≤ 30s for 1 ppm Toluene |
| Storage Temperature | -20°C to 70°C |
| Detector | Electron multiplier tube |
| Recovery time | ≤ 30s for 1 ppm Toluene to minimize sample impact |
| Model | GC-MS-A10 |
| SENSITIVITY | Single MS - Toluene (5 mg/m³) S/N ≥ 10 / Sorbent Tube - Toluene (10 ppb) S/N ≥ 50 / Split Inlet - Octa fluor naphthalene (100 pg/µL) S/N ≥ 15 |
| Gross Weight | 21 Kg |
| Vacuum | ≤ 3000 µTorr |
| Environmental Temperature | -5°C to 45°C |
| Mass Range | 15 to 550 amu |
| Dynamic Range | 10⁷ |
| Database | NIST Standard Spectrum Library / AMDIS / NIOSH Database / Environmental Standards Reference Database |
| Ambient Pressure | Usable at 54 to 101.3 kPa / suitable for highlands |
| Packaging Dimension | 600 × 600 × 350 mm |
| Injection Modes | Single MS / sorbent tube / quantitative ring injection |
| Scanning Modes | Full Scan / SIM / and MS/MS |
| Ion Source | EI source with 70 eV ionization energy |
| Quality Analyzer | Ion trap mass analyzer |
| Anti-Vibration Grade | Yes |
| Waterproof Grade | Yes |
| Automatic Tuning | Auto-calibration on the main unit’s mass axis |
| Calibration Function | Real-time internal standard calibration |
| Pre-Sampling Function | Prevents dead volume impact on analysis |
| Blowback Function | Clears residue from sorbent tubes post-analysis |
| Carrier Gas | Built-in helium gas bottle |
| Sampling Flow | Electronically controlled and adjustable |
| Positioning System | GPS and BeiDou dual-mode / real-time tracking |
| Communication Mode | LAN and Wi-Fi enabled |
| Data Acquisition | Built-in IPC with touch screen human-machine interaction |
| Data Processing | Built-in IPC (touch screen) / External PC (keyboard and mouse interaction) |
Key Features
- Whole heat tracing technology
- Built-in battery and carrier gas
- Rapid VOC/SVOC analysis
- Fast MS direct injection response
- Parallel sorbent tube/loop design
- Trolley with shock-absorbing module
- Vehicle-ready with quick warm-up
- Multiple injection modes: sorbent tube, MS injection, headspace, and SPME
Product Description
Gas Chromatography Mass Spectrometry GC-MS-A10 operates with a mass range of 15 to 550 amu, ensuring precise analysis. It features a portable design, weighing under 19 kg, allowing easy on-site use. The intelligent wizard-operated software system and multiple injection modes, including sorbent tube and MS direct injection, provide versatility for varied analytical needs. Its waterproof, dustproof, and earthquake-resistant design ensures reliable performance. This GC-MS is ideal for rapid qualitative and quantitative analysis of organic compounds.
Applications:
Gas Chromatography Mass Spectrometry is widely used for the precise analysis of volatile and semi-volatile organic compounds in fields like environmental monitoring, forensic investigations, pharmaceutical research, and industrial quality control.
Standard Accessories:
- Built-in adsorption thermal desorption module host × 1 set
- sampling probe × 1 set
- single-shoulder strap × 1 set
- external tuning standard sample × 1 set
- host storage case × 1 set
- He gas (10pcs/box) × 1 box
- Tedlar gas bag (1L) × 5 pieces
- gas bottle anti-falling rack × 1 set
- SPME handle × 1 piece
- 20mL clear glass sample bottle × 7 pieces
- SPME fiber PDMS/DVB coating × 1 box (3 sticks/box)
- host installation acceptance package × 1 set
- engineering pre-installed accessories × 1 set
- SPME injection kit storage case × 1 set
- 0.5μL micro syringe × 1 piece
- 1.0mL gas-tight syringe × 1 piece
- syringe injection kit storage case × 1 set
Optional Accessories:
- SPME comprehensive pre-treatment instrument × 1 piece
- SPME comprehensive pre-treatment instrument consumables package × 1 piece
- headspace injection system × 1 piece
- headspace installation acceptance package × 1 piece
- 40 mL clear glass sample vial × 100 pieces
- portable GC-MS dynamic dilution instrument × 1 piece
- portable GC-MS dynamic dilution instrument engineering package × 1 piece
- air bag negative pressure sampling kit × 1 piece
- PTFE hydrophobic filter membrane × 50 pieces
- portable GCMS special car × 1 piece
- vehicle-mounted shock absorption platform × 1 piece
- mobile power × 1 piece
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The mass range of this model is from 15 to 550 amu, allowing for precise analysis of various compounds.
It has dimensions of 221 × 429 × 440 mm and weighs 19 kg, which supports its portability for on-site use.
This unit supports multiple injection modes including single MS, sorbent tube, and quantitative ring injection.
The GC-MS-A10 requires a power supply of 220VAC ±10% at 50 Hz.
The response time for 1 ppm Toluene is ≤ 30 seconds, ensuring quick analysis.
It can function in temperatures ranging from -5°C to 45°C and relative humidity levels of 0% to 95% RH.
Included accessories are a built-in adsorption thermal desorption module, sampling probe, external tuning standard sample, and several syringes and sample bottles.
It utilizes the NIST Standard Spectrum Library, AMDIS, NIOSH Database, and Environmental Standards Reference Database for data analysis.
The sensitivity for Toluene is 5 mg/m³ for single MS and 10 ppb for the sorbent tube, with signal-to-noise ratios of ≥ 10 and ≥ 50 respectively.
This model supports LAN and Wi-Fi communication modes, enhancing connectivity options for data transfer and control.
It features real-time internal standard calibration and automatic tuning for maintaining accuracy during analysis.
