TDS Mini Controller BL983324-12VDC, 0.0-49.9 ppm, Panel Mounted, LCD, 12 VDC | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

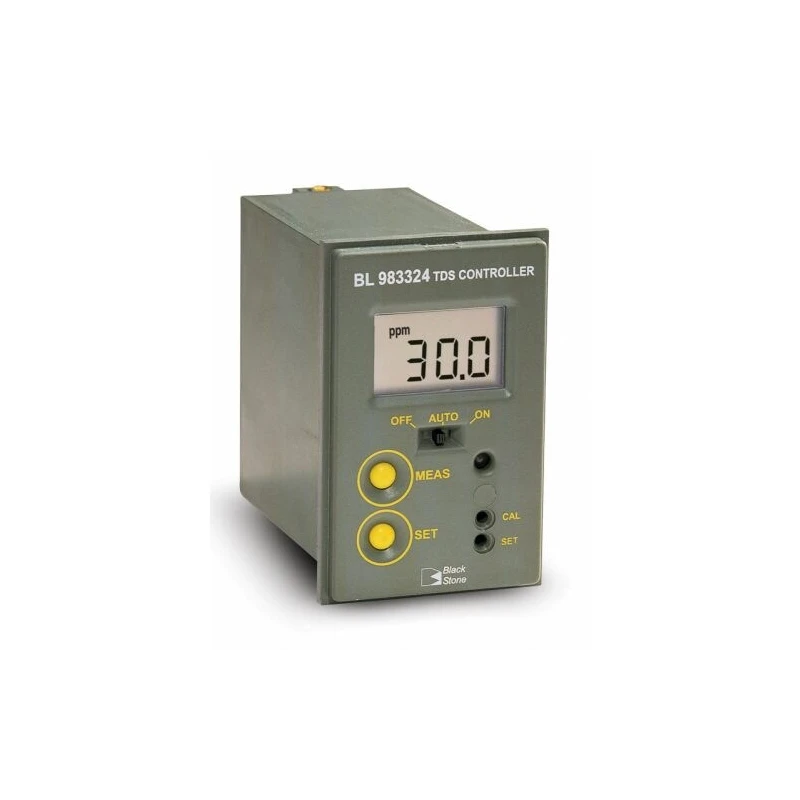

Hanna TDS Mini Controller (0.0 to 49.9 ppm) - BL983324-12VDC

Name: Hanna TDS Mini Controller (0.0 to 49.9 ppm) - BL983324-12VDC
Brand: Hanna
SKU: 73042
Price: 257.74 USD
Availability: InStock



Category Mini Controllers Brand Hanna

Specifications

TDS Range	0.0 to 49.9 ppm (mg/L)
TDS Accuracy	±2% F.S.
TDS Resolution	0.1 mg/L ppm (mg/L)
Model	BL983324-12VDC

Key Features

BL983324-12VDC TDS Mini Controller designed for precise measurement and control of total dissolved solids (TDS) in process streams within a 0.0 to 49.9 ppm range.

Compact panel-mounted design suitable for industrial and laboratory applications.
Microprocessor-based controller measures TDS from 0.0 to 49.9 ppm (mg/L) with a high accuracy of ±2% f.s.
Large LCD with protective cover ensures easy readability and reliability in harsh environments.
Supports both automatic and manual dosing modes for flexible process control.
Features a multicolor LED indicator for clear system status.

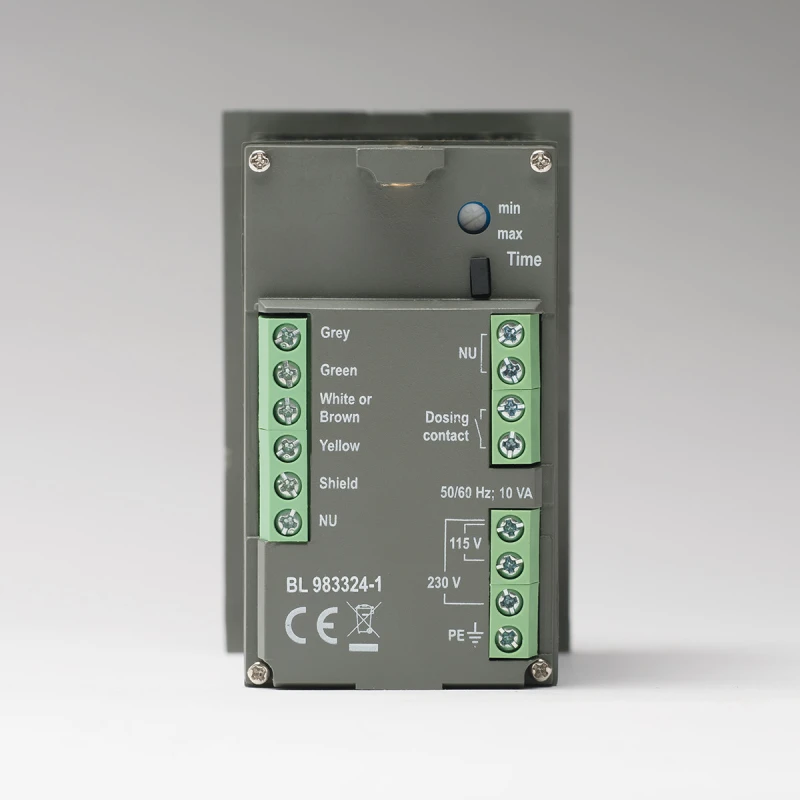

Equipped with a dosing relay: max 2A, 250 Vac / 30 VDC (fuse protected).
Automatic temperature compensation from 5°C to 50°C with β =2%/oC for enhanced accuracy.
Manual calibration available via front panel CAL trimmer for user convenience.
Fire retardant casing increases operational safety.
Ideal for monitoring water quality from ion exchange, RO, or distillation sources.

Product Description

The BL983324-12VDC TDS Mini Controller is a compact, panel-mounted process controller engineered to deliver accurate measurements of total dissolved solids (TDS) in the range of 0.0 to 49.9 ppm (mg/L). This unit is designed for industrial, laboratory, and water treatment applications where precise monitoring and dosing control is critical, such as in reverse osmosis (RO) systems, ion exchange units, and distillation plants.

Featuring a large LCD display with a protective cover, the controller enables clear and at-a-glance readouts in challenging environments. The device supports both automatic and manual dosing, activating a dry contact relay when TDS levels exceed the set point—ideal for driving dosing pumps or opening solenoid valves. The fire-retardant casing and multicolor LED indicator reflect a commitment to operational safety and simple status verification.

Panel-mounted, microcontroller-driven process controller for 0.0–49.9 ppm (mg/L) TDS measurement.
Large, clear LCD with integrated dust and splash protection cover for robust performance.
Selectable automatic/manual dosing operation, with emergency over-dosing control from 5–30 min.
0.5 EC-to-TDS conversion factor (1.0 µS/cm = 0.5 ppm/mg/L) for accurate, application-specific readings.
Dosing relay specification: max 2A, 250 Vac, 30 VDC, with integrated fuse protection.
Automatic temperature compensation range: 5–50°C (41–122°F), β = 2%/°C.
Manual calibration via front CAL trimmer for straightforward operator adjustments.
Protective, fire-retardant enclosure ensures safe, long-term operation in demanding environments.
Supports high-purity water quality monitoring in RO, DI, and other critical water preparation systems.
Package includes 12 VDC adapter, mounting hardware, and quick-start guide.

The BL983324-12VDC is suitable for industrial, laboratory, water treatment, and commercial water treatment systems. Explore more laboratory mini controllers in the EnvMart catalog for diverse process control solutions.
