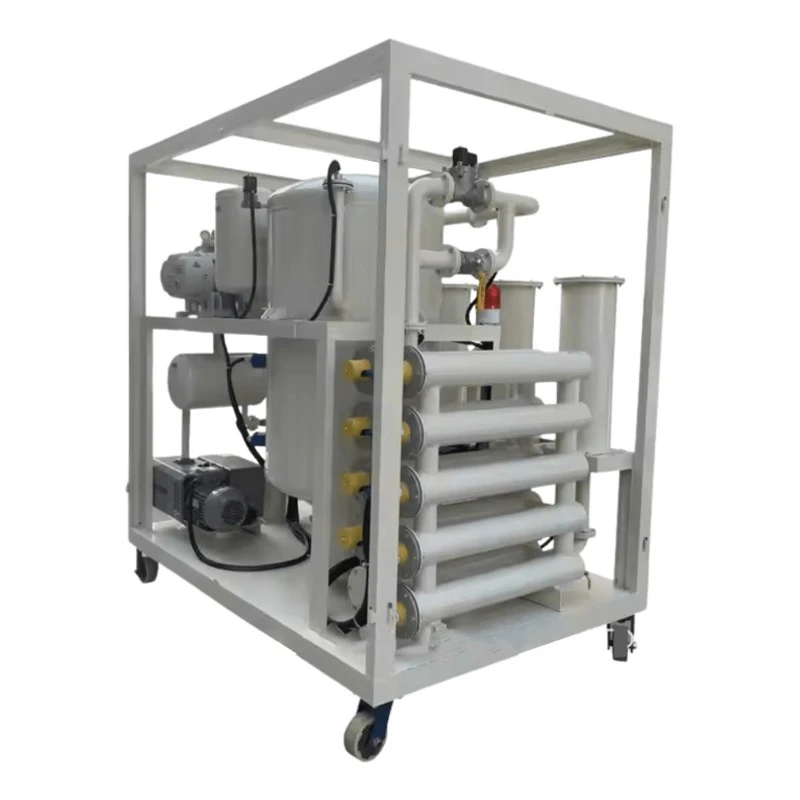

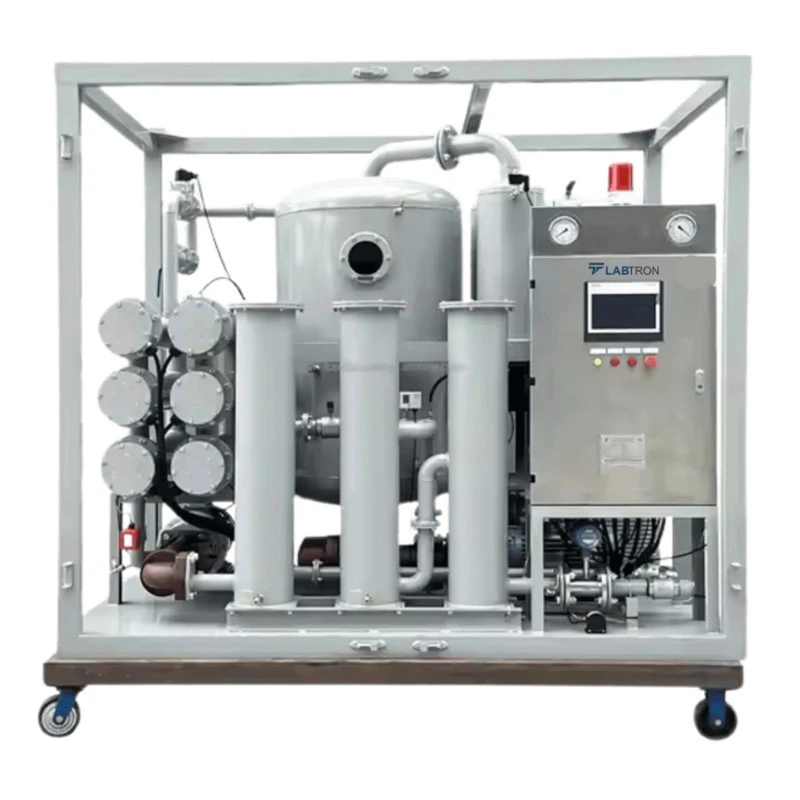

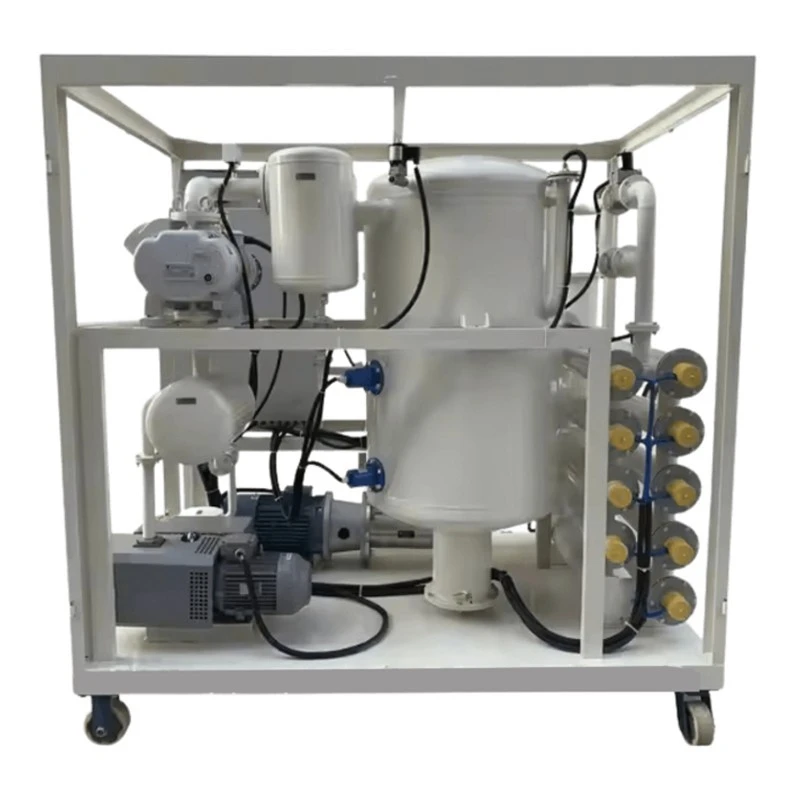

Double-Stage Vacuum Transformer Oil Purifier EDOP-A13
Specifications
| Country of Origin | UK |
|---|---|
| Power Consumption | 104000 W |
| Brand | Generic Brand |
| Power Supply | AC380V/50Hz/3 |
| Flow Rate | 9000 L/H |
| Temperature range | 20 to 80°C |
| Model | LDOP-A13 |
| Weight | 1400 KG |
| Vacuum Degree | -0.08 to -0.099 MPa |
| Moisture Content | ≤3 PPM |
| Type of Product | Oil Purification System |
| Vacuum Pressure | ≤ 0.3 MPa |
| Heating Power | 96000 W |
| Dimensions (L×W×H) | 2000 × 1400 × 2050 mm |
| Working Noise | 75 dB(A) |
| Gas Content | 0.1 % |
| Impurity Size | ≤1 µm |
| Oil Outlet/Inlet | Φ 45 mm |
| Value β | 98 % |
| Cleanness | ≤ 6 |
Key Features
- Flexible filtration cartridge options
- Reliable built-in safety devices
- Continuous oil cleanliness monitoring
- Efficient impurity removal process
- Robust weatherproof enclosure option
Product Description
Double-Stage Vacuum Transformer Oil Purifier LDOP-A13 has a flow rate of 9000 L/H, efficiently removing contaminants and moisture from transformer oil. Equipped with two vacuum pumps for enhanced efficiency, ensuring optimal water content reduction in the oil. This offers fully automatic operation with Siemens PLC control for efficient performance. Our Transformer Oil Purifier includes a protection mechanism that shuts down the unit in case of faults.
Applications:
Double-Stage Vacuum Transformer Oil Purifier LDOP-A13 is crafted to purify transformer oils and insulating liquids, enhancing their performance and lifespan. It is applied in transformer maintenance, oil regeneration, and other electrical equipment across the globe.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range for this unit is between 20 to 80°C, suitable for various oil purification processes.
The power consumption of the Double-Stage Vacuum Transformer Oil Purifier is 104,000 watts (W).
It requires an AC power supply of 380V at 50Hz with a three-phase connection.
This model weighs 1400 kilograms (KG), which is important for installation considerations.
The vacuum degree of this purifier can reach between -0.08 to -0.099 MPa, facilitating effective moisture removal.
It can filter impurities as small as 1 micrometer (µm), ensuring high oil cleanliness.
It can reduce moisture content to 3 parts per million (PPM) or less, enhancing the quality of transformer oil.
The dimensions of this unit are 2000 mm in length, 1400 mm in width, and 2050 mm in height.
The working noise level of this unit is 75 dB(A), which is important for operational environments.
This model can achieve a cleanness level of 6 or lower, indicating effective filtration performance.
It includes built-in safety devices that automatically shut down the unit in case of faults, ensuring operational safety.
