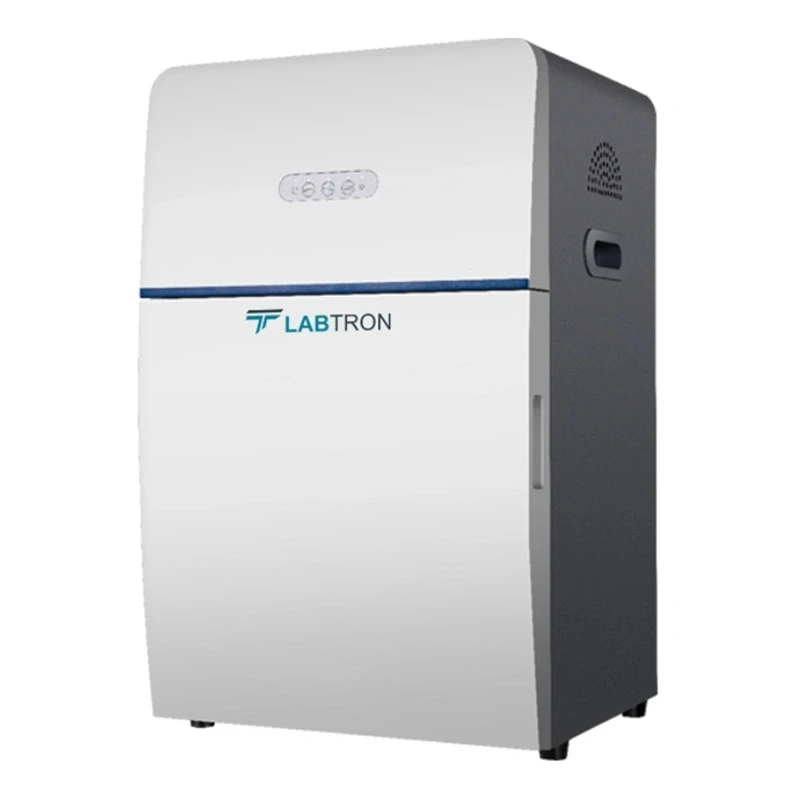

Labtron LCIS-A21 Chemiluminescence Imaging System
Specifications
| Resolution | 6.05 Megapixels / 2750 × 2200 |
|---|---|
| Display | NA |
| Brand | Labtron |
| Dimension | 560 × 480 × 780 mm + 380 × 350 × 490 mm |
| Light Source | LED Epi-White light × 2 / UV-Transilluminator (302 nm) / White-LED Transilluminator |
| Model | LCIS-A21 |
| SOFTWARE | Image acquisition and analysis software |
| Gross Weight | 39 kg |
| Lens | F0.8 motorized lens |
| Dynamic Range | 4 order of magnitude |
| Pixel Density | 16-bit (65536 Grey scales) |
| Readout Noise | Less than 5.5e- RMS |
| Pixel Size | 4.54 × 4.54 µm |
| Quantum Efficiency | ≥ 75% |
| Filter Wheel | 8 Sockets Filter Wheel |
| Dark Current | 0.0003 e/p/s |
| Standard Filter | 590 nm filter |
| Max Image Area | 260 × 210 mm |
| Cooling Temperature | -30°C |
| CCD Sensor Size | 12.49 × 9.99 mm |
Key Features
- ≥ 75 % High Quantum efficiency of the CCD camera
- CCD Sensor Size offered is 12.49 × 9.99 mm, with a 6.05 MP resolution
- Offers convenient image navigation and browsing
- Optional attachment of different fluorescent light sources and filters
- Automatic pixel binning technology
- Marker image capture and composition with objective bands
- Small footprint - takes up minimal bench space
- Configured for maximum sensitivity to ensure even the faintest band on a blot can be captured
- Optional full configuration system Analysis System (DNA, RNA, Protein,
- Chemiluminescence, Fluorescence)
Product Description
Chemiluminescence Imaging System LCIS-A21 is a new generation integrated device designed for imaging chemiluminescence gels with exceptionally high quantum efficiency. It features a 12.49 × 9.99 mm CCD sensor size, 6.05 MP resolution, F0.95 motorized lens, and -30˚C cooling temperature. The 16-bit (65536 Grey Scales) CCD camera reduces background noise during long exposure times, ensuring high sensitivity and a wider linear range for detecting weak signals. This system is ideal for RNA, DNA, protein, and chemiluminescence imaging, providing advanced functionality for precise and efficient documentation.
Applications
Chemiluminescence Imaging System is used in genetic engineering, biotechnology, and molecular biology for obtaining high-quality images of DNA/RNA bands. It is also widely applied in protein detection, ELISA plate reading, and chemiluminescence analysis for research and diagnostic purposes.
Optional Accessories
- Optional System Configuration of RNA, DNA, Protein, Chemiluminescence, Fluorescence System.
Chemiluminescence Image System Software
- High-precision automatic exposure and automatic recognition of gel bands.
- One-touch image acquisition and saving.
- Marker image capture and composition with objective bands.
- Automatic access of capture parameters and calculation of the density and peak value of each band.
- Convenient image navigation and browsing.
- Supports image rotation, cropping, and counter color processing.
- Advanced pixel binning technology.
- Option to save analysis results as Excel files.
- Calculation of optical density for quantitative analysis.
- Optimization of visual effects using background wiping mode.
