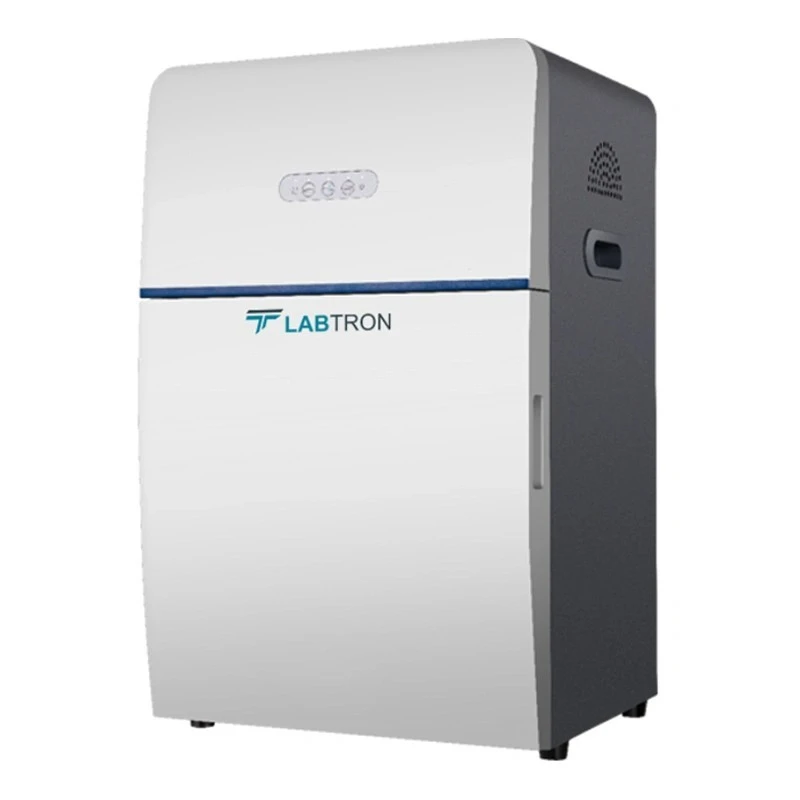

Chemiluminescence Imaging System ECIS-A20
Specifications
| Resolution | 6.05 Megapixels / 2750 × 2200 |
|---|---|
| Display | NA |
| Brand | Generic Brand |
| Dimension | 560 × 480 × 780 mm + 380 × 350 × 490 mm |
| Light Source | LED Epi-White light × 2 / UV-Transilluminator (302 nm) / White-LED Transilluminator |
| Model | LCIS-A20 |
| SOFTWARE | Image acquisition and analysis software |
| Gross Weight | 39 kg |
| Lens | F0.8 motorized lens |
| Dynamic Range | 4 order of magnitude |
| Pixel Density | 16-bit (65536 Grey scales) |
| Readout Noise | Less than 5.5e- RMS |
| Pixel Size | 4.54 × 4.54 µm |
| Quantum Efficiency | ≥ 75% |
| Filter Wheel | 8 Sockets Filter Wheel |
| Dark Current | 0.0003 e/p/s |
| Standard Filter | 590 nm filter |
| Max Image Area | 260 × 210 mm |
| Cooling Temperature | -30°C |
| CCD Sensor Size | 12.49 × 9.99 mm |
Key Features
- ≥ 75 % High Quantum efficiency of the CCD camera
- CCD Sensor Size offered is 12.49 × 9.99 mm, with a 6.05 MP resolution
- Offers convenient image navigation and browsing
- Optional attachment of different fluorescent light sources and filters
- Automatic pixel binning technology
- Marker image capture and composition with objective bands
- Small footprint - takes up minimal bench space
- Configured for maximum sensitivity to ensure even the faintest band on a blot can be captured
- Optional full configuration system Analysis System (DNA, RNA, Protein,
- Chemiluminescence, Fluorescence)
Product Description
LCIS-A20 is a next-generation, fully integrated system designed for chemiluminescence imaging with an exceptionally high quantum efficiency CCD camera for greater sensitivity and dynamic range. It features a 12.49 × 9.99 mm CCD sensor, 6.05 MP resolution, F0.8 motorized lens, and a -30˚C cooling temperature. The 16-bit (65536 Grey Scales) CCD camera significantly reduces background noise during long exposure times, enabling the detection of weak signals with high sensitivity and a wide linear range. This system is configured for RNA, DNA, Protein documentation, and Chemiluminescence imaging applications.
Applications:
The Chemiluminescence Imaging System is widely used in genetic engineering, biotechnology, and molecular biology for high-quality imaging of DNA/RNA bands. It is also applied in protein detection, ELISA plate reading, and chemiluminescence analysis.
Optional Accessories:
- Optional System Configuration of RNA, DNA, Protein, Chemiluminescence, Fluorescence System.
Chemiluminescence Image System Software:
- High-precision automatic exposure and automatic recognition of the gel bands.
- Offers one-touch image acquisition and save.
- Marker image capture and composition with objective bands.
- Automatic access of capture parameters and calculation of the density and the peak value of each band.
- Convenient image navigation and browsing.
- Supports image rotation, cropping, and counter color processing.
- Advanced pixel binning technology.
- Optional save of analysis results as Excel files.
- Calculation of the optical density for quantitative analysis.
- Offers optimization of the visual effects by wiping background mode.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resolution of this model is 6.05 Megapixels, with an image size of 2750 × 2200 pixels.
The dimensions of the Chemiluminescence Imaging System are 560 × 480 × 780 mm and an additional component measuring 380 × 350 × 490 mm.
The CCD camera in the system has a quantum efficiency of ≥ 75%.
It can utilize LED Epi-White light, UV-Transilluminator (302 nm), and White-LED Transilluminator as light sources.
The cooling temperature of the CCD camera is -30°C.
The gross weight of this unit is 39 kg.
The system features an F0.8 motorized lens.
It comes with image acquisition and analysis software designed for high-precision automatic exposure and gel band recognition.
The maximum image area that can be captured is 260 × 210 mm.
The pixel density of the CCD camera is 16-bit, allowing for 65536 grey scales.
This model is designed for applications in genetic engineering, biotechnology, molecular biology, DNA/RNA documentation, protein detection, and chemiluminescence analysis.
Yes, it supports optional system configurations for RNA, DNA, Protein, Chemiluminescence, and Fluorescence imaging.
