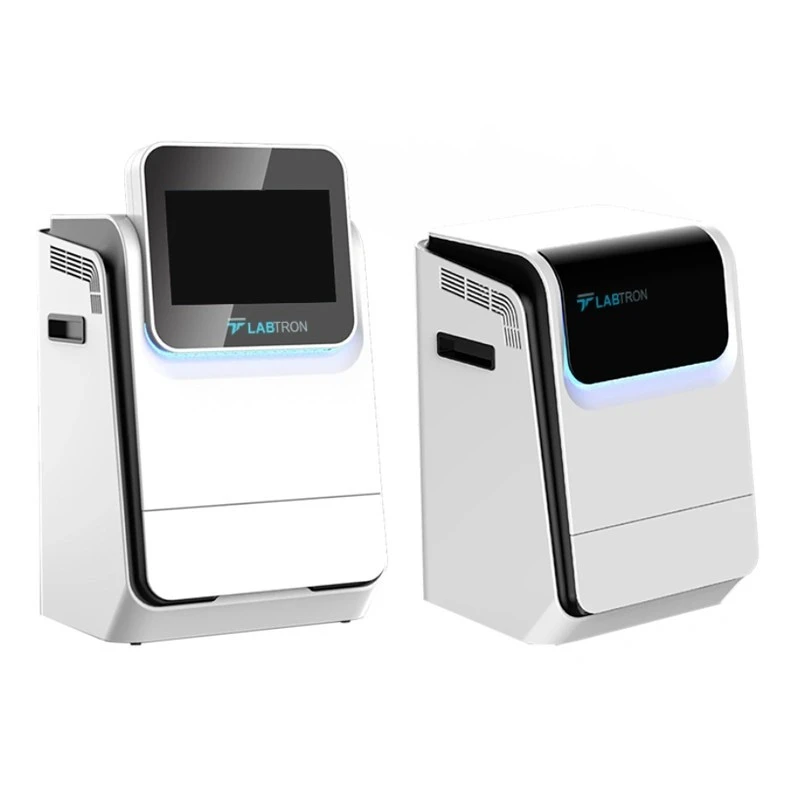

Gel Documentation System EBGD-A13
Specifications
| Brand | Generic Brand |
|---|---|
| Net Weight | 14kg |
| Light Source | Epi-White LED × 2 |
| Model | LBGD-A13 |
| Gross Weight | 21kg |
| Frame | 350mm × 320mm × 500mm |
| Camera | CCD Camera / Resolution - 6.3 Megapixels / 3072×2048 (600 DP) / A/D - 16 bit (65536 Grey Scales) / High QE - 97% / Dynamic range - 4.6 OD / Sensitivity - Lower than 5pg EtBr Stained DNA |
| Lens | F1.2 lens |
| Touch Screen | 10.1 Inch / CPU - Intel i5 / RAM - 4GB / SSD - 256GB / Resolution - 1280 × 800 |
| Sample Tray | UV LED Transmission 302mm (or 365nm) - 17cm × 13cm / White LED Transmission - 17cm × 13cm |
| Device Dimensions (W×D×H) | 440mm × 450mm × 760mm |
Key Features
- Optimized for DNA/RNA and protein gel analysis
- Intuitive user interface
- Compact and efficient design
- Expandable with optional fluorescence applications
- Unlimited software user licenses
Product Description
LBGD-A13 provides high-resolution imaging with 6.3-megapixel clarity for precise gel analysis. It is equipped with UV and LED transillumination options, ensuring accurate visualization of stained samples. Advanced imaging software supports various gel types and fluorescence detection applications. A large viewing screen enables detailed gel band display, making it a cost-effective solution for recording, evaluating, and sharing results in research settings.
Applications:
This Gel Documentation System accurately captures, analyzes, and documents gel electrophoresis results for DNA, RNA, and protein studies, ensuring efficient data management, reproducibility, and high-quality imaging for molecular research.
Standard Accessories:
- • Camera - 1 unit
- • Lens - 1 pc
- • Sample tray - 1 pc
- • Software
Optional Accessories:
- • Removable PC with touch screen
- • Blue transmission
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The camera in this model has a resolution of 6.3 megapixels, with an image size of 3072×2048 pixels.
The device dimensions are 440mm in width, 450mm in depth, and 760mm in height.
It is equipped with two Epi-White LEDs for illumination during gel analysis.
The net weight of this unit is 14 kg, while the gross weight is 21 kg.
The sample tray measures 17cm × 13cm and is compatible with both UV LED and White LED transmission.
The system comes with advanced imaging software that supports various gel types and fluorescence detection applications.
The camera has a dynamic range of 4.6 OD, allowing for detailed imaging of gel bands.
It features a 10.1-inch touch screen with a resolution of 1280 × 800, powered by an Intel i5 CPU with 4GB RAM and a 256GB SSD.
It provides both UV and LED transillumination options for precise visualization of stained samples during gel analysis.
This model is designed for accurate capturing, analyzing, and documenting gel electrophoresis results for DNA, RNA, and protein studies.
Included accessories are one CCD camera, one F1.2 lens, and one sample tray.
Yes, it can be expanded with optional fluorescence applications and a removable PC with a touch screen.
