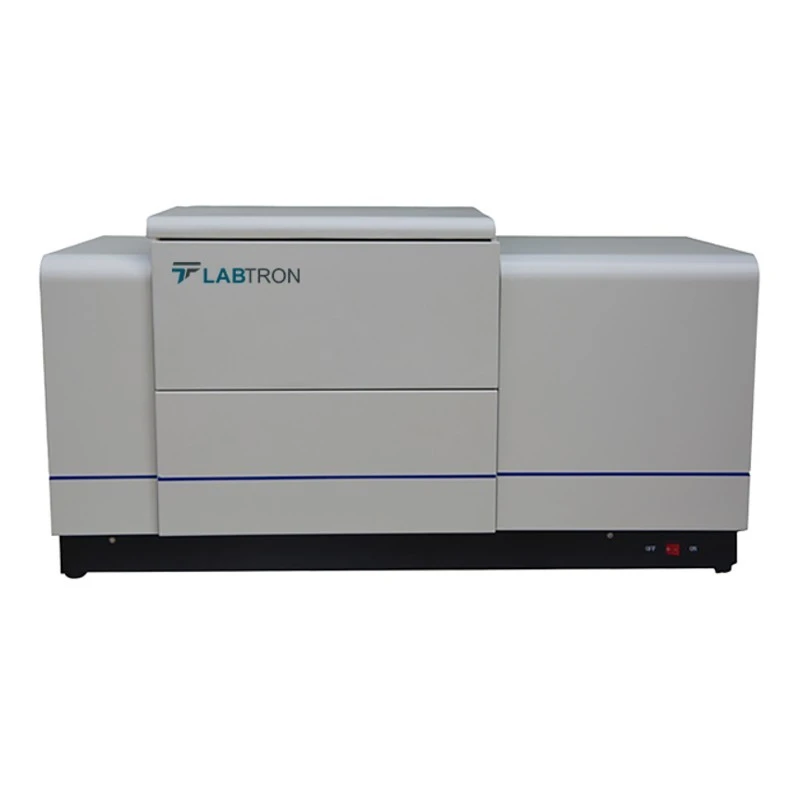

Labtron LLPA-B10 Laser Particle Size Analyzer
Specifications
| Country of Origin | UK |
|---|---|
| Measurement Range | 0.1 µm to 2000 µm |
| Brand | Labtron |
| Net Weight | 58 kg |
| Interface | RS232 |
| Light Source | Semiconductor laser / λ equal to 632.8 nm / P Greater than 2 mW / Service life Greater than 25000 hours |
| Detector | High-sensitive ring photoelectric detector |
| Operation Mode | Automatic/Manual (Switchable) |
| Model | LLPA-B10 |
| Standard | ISO 13320-1 — 1999 |
| Type of Product | Particle Size Analyzer |
| Test Speed | Less than 1 min/test |
| Feeding | Automatic vibration feeding |
| Repeatability error | Less than 1% (National Standard Sample D50) |
| Dimension (L × W × H) | 1040 × 440 × 540 mm |
| Accuracy Error | Less than 1% (National Standard Sample D50) |
| Dispersion Type | Dry |
| Channel Number | 100 |
| Optical Path Alignment | Fully automatic |
| Software Running | WIN 7/10/XP / 64 bits |
| Analysis Mode | Free Distribution / R-R Distribution / Logarithm Normal Distribution / Mesh classification etc. |
| Statistic Method | Volume Distribution / Quantity Distribution |
| Test Report | Word / Excel / Photo(.bmp) / Text etc. |
| Dispersion Mode | Dry-turbulence dispersion mode |
| Dispersion Technique | Normal shock wave shear technique |
Key Features
- Intelligent dry laser particle size analyzer, ensures accuracy of test results
- MIE scattering principle and high-sensitive ring photoelectric detector
- 0.1 to 2000 µm measuring range with 100 detector channels
- Dry-turbulence dispersion mode and normal shock wave shear technique
- High-precision feeding device, optimum results with precise feeding
- Semiconductor laser and high-precision automatic optical path calibration system
- Automatic and manual operation modes with intelligent data analysis
- <1 min test speed, fast and accurate operation for repeatable results
- Results include particle distribution, cumulative value curve, and typical particle sizes
- Supports user-defined analysis results as per requirements
- Designed as per ISO13320-1:1999 standard configurations
- Highly-efficient, stable, and reliable unit for fast, accurate, and repeatable results
Product Description
Laser Particle Size Analyzer LLPA-B10 is an intelligent dry laser particle size analyzer, comprised with MIE scattering principle and high-sensitive ring photoelectric detector, offers 0.1 μm to 2000 μm of measuring range. With Dry-turbulence dispersion mode and normal shock wave shear technique, features high-precision feeding device and 100 detector channels. Equipped with semiconductor laser and high-precision automatic optical path calibration system, it offers automatic and manual operation mode and intelligent data analysis. With <1 min of test speed and results for particle distribution, cumulative value curve, and typical particle sizes, it also supports user-defined analyze results as per requirements.
Applications:
Laser particle size analyzer is used to measure the sizes of particles in a material across cosmetics, food, coal, paint, paper, petrochemical, dyes, inks, explosives, kaolin, medicine, metal powder, mica, milling, minerals, oxides industries etc.
