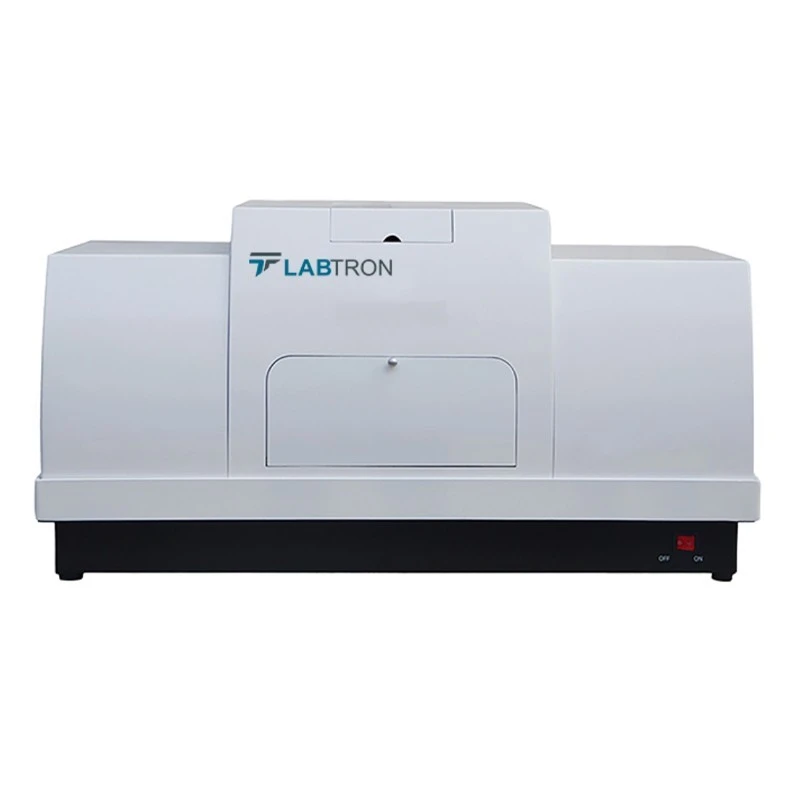

Labtron LLPA-A12 Laser Particle Size Analyzer
Specifications
| Country of Origin | UK |
|---|---|
| Measurement Range | 0.1 to 1000 µm |
| Brand | Labtron |
| Net Weight | 41 kg |
| Light Source | High performance semiconductor laser λ equal to 632.8 nm / P Greater than 2 mW / service life Greater than 25000 h |
| Detector | High-sensitive ring-shaped multi-element silicon photo-diode detector |
| Operation Mode | Automatic / Manual (Switchable) |
| Model | LLPA-A12 |
| Standard | ISO 13320-1 — 2011 |
| Type of Product | Particle Size Analyzer |
| Ultrasonic Frequency | 40 kHz |
| Test Speed | Less than 2 min/time |
| Circulation | Rated Flow — 8 L/min / Rated Power — 10 W |
| Repeatability error | Less than 1% (National Standard Sample D50) |
| Dimensions (L × W × H) | 850 × 390 × 450 mm |
| Ultrasonic Power | 35 W |
| Accuracy Error | Less than 1% (National Standard Sample D50) |
| Dispersion Type | Wet |
| Channel Number | 90 |
| Dispersion Method | Ultrasonic and Stir/Circulation Combo |
| Ultrasonic Time | ≥ 1 s |
| Stir Revolution Speed | 0 to 3000 rpm (adjustable) |
| Sample Pool Capacity | 350 ml |
| Optical Path Alignment | Fully automatic |
| Software Running | WIN 7/10/XP / 64-bit |
| Analysis Mode | Free Distribution / R-R Distribution / Logarithm Normal Distribution / Mesh classification |
| Statistic Method | Volume Distribution / Quantity Distribution |
| Test Report | Word / Excel / Photo(.bmp) / Text etc. |
| Intelligent Operation | Intelligent SOP operation |
Key Features
- An intelligent and fully automatic wet laser particle size analyzer
- Adopted with MIE scattering principle, highly sensitive detectors and detection system
- Unconstrained free fitting software technology facilitates the data processing
- Designed as per ISO13320-1:1999 standard configurations
- 0.1 to 1000 µm measuring range with 90 channels and 350 ml sample pool
- High-performance semiconductor laser and built-in dispersion unit
- Auto optical alignment, auto water supply, auto drainage, auto bubble removing, auto ultrasonic dispersion
- Intelligent SOP operation with both automatic and manual operation modes
- Different analysis modes, statistical methods, and statistical comparisons
- <2 min test time with test report in various formats for easy data analysis
- High-efficient, stable, and reliable unit to precisely determine the particle size distribution
Product Description
Laser Particle Size Analyzer LLPA-A12 is an intelligent and fully automatic wet laser particle size analyzer, adopted with MIE scattering principle, high-sensitive ring-shaped multi-element silicon photo-diode detector, and unconstrained free fitting software technology. Designed as per ISO13320-1:1999 standard configurations, offers 0.01 to 1000 μm of measuring range with 90 channels and 350 ml sample pool. Equipped with high-performance semiconductor laser and built-in dispersion unit, features auto optical alignment, auto water supply, auto drainage, auto bubble removing, auto ultrasonic dispersion etc. through one-key operation. Incorporated with intelligent SOP operation, automatic and manual mode, has different analysis mode, statistic methods, and statistic comparisons, offers <2 min test time and supports test report in various format.
Applications:
Used to measure the sizes of particles in a material across cosmetics, food, coal, paint, paper, petrochemical, dyes, inks, explosives, kaolin, medicine, metal powder, mica, milling, minerals, oxides industries, etc.
Optional Accessories:
- 10 ml micro sample pool
