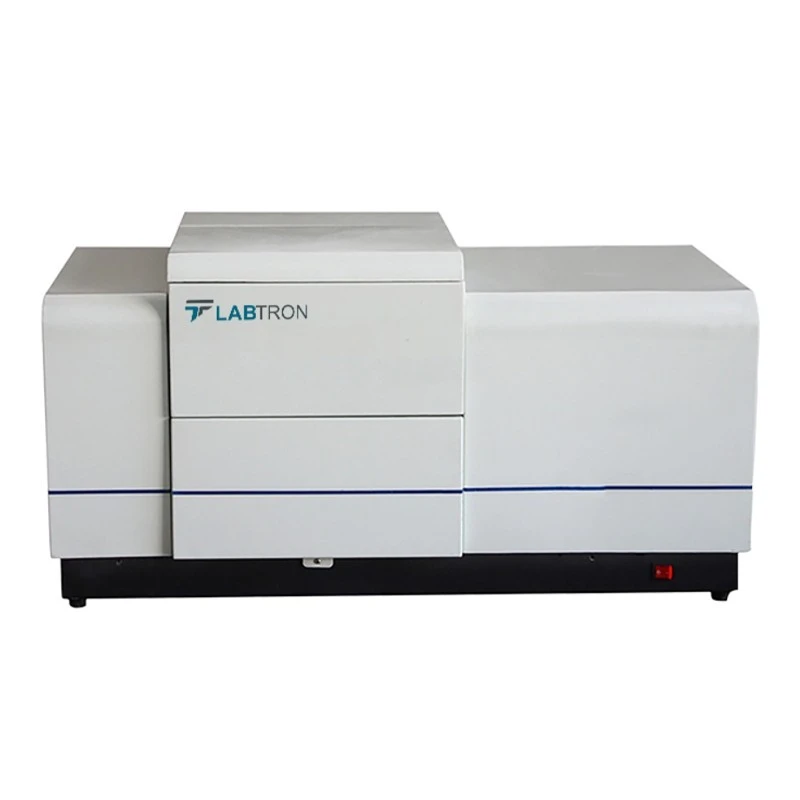

Labtron LLPA-C10 Laser Particle Size Analyzer
Specifications
| Country of Origin | UK |
|---|---|
| Measurement Range | Wet — 0.01 to 2000 µm / Dry — 0.1 to 2000 µm |
| Brand | Labtron |
| Net Weight | 70 Kg |
| Light Source | High performance semiconductor laser (λ equal to 632.8 nm / P Greater than 2.0 mW) / Auxiliary blue semiconductor laser (λ equal to 405 nm / P Greater than 2.0 mW) |
| Detector | Log-spaced array / test angle from 0.015° to 145° |
| Operation Mode | Automatic/Manual (Switchable) |
| Model | LLPA-C10 |
| Standard | ISO 13320-1 — 2009 |
| Type of Product | Particle Size Analyzer |
| Ultrasonic Frequency | 40 kHz |
| Test Speed | Wet — Less than 2 min / Dry — Less than 1 min / Typical measuring time — Less than 10 s |
| Repeatability error | Wet and Dry — Less than 1% (National Standard Sample D50) |
| Dimensions (L×W×H) | 1040 × 440 × 540 mm |
| Ultrasonic Power | 60 W |
| Accuracy Error | Wet and Dry — Less than 1% (National Standard Sample D50) |
| Dispersion Type | Wet and Dry |
| Channel Number | Wet — 127 / Dry — 100 |
| Ultrasonic Time | ≥1 s |
| Stir Revolution Speed | 0 to 300 rpm (Adjustable) |
| Optical Path Alignment | Fully automatic |
| Software Running | WIN 7/10/XP / 64 bits |
| Analysis Mode | Free Distribution / R-R Distribution / Logarithm Normal Distribution / Mesh number classification etc. |
| Statistic Method | Volume Distribution / Quantity Distribution |
| Test Report | Word / Excel / Photo(.bmp) / Text etc. |
| Intelligent Operation | Intelligent SOP operation |
| Photodetectors | Silicon photodetectors |
| Circulation (Wet Dispersion) | Rated Flow — 30 L/min / Rated Power — 70 W |
| Sample Tank | 1000 ml |
| Dry Dispersion | Dry-turbulence dispersion / Normal shock wave shear technique |
Key Features
- A fully automatic unit integrated with wet and dry dispersion, convenient operation
- Laser diffraction principle and Mie and Fraunhofer scattering, rapid measurement
- Wet measuring range of 0.01 to 2000 µm and dry measuring range of 0.1 to 2000 µm
- Semiconductor lasers with log-spaced array detector and silicon photodetectors
- Full-automatic and manual operation modes with automatic optical path alignment system
- Built-in sample dispersion system, ensures sufficient dispersion and accurate result
- Unconstrained free fitting technology comprised software, offers high precision data
- <2 min test time for wet dispersion and <1 min test time for dry dispersion
- Different analysis modes, statistical methods, and comparisons to meet various requirements
- Supports intelligent operation, user-defined analysis, and test reports in various formats
- Designed as per ISO 13320-1:2009 standard configurations
- High-efficient, stable, and reliable unit for accurate and repeatable results
Product Description
Laser Particle Size Analyzer LLPA-C10 is a fully automatic unit integrated with wet and dry dispersion. With Laser diffraction principle and Mie and Fraunhofer scattering, features wet measuring range of 0.01 to 2000 µm and dry measuring range of 0.1 to 2000 µm. Designed with semiconductor lasers, log-spaced array detector and silicon photodetectors, offers full-automatic and manual operation mode with automatic optical path alignment system. Built-in sample dispersion system and unconstrained free fitting technology comprised software, provides high precision data with <2 min test time for wet dispersion and <1 min test time for dry dispersion. With different analysis mode, statistic method and comparison, it supports intelligent operation, user-defined analysis and test reports in various format.
Applications:
Laser particle size analyzer is used to measure the sizes of particles in a material across cosmetics, food, coal, paint, paper, petrochemical, dyes, inks, explosives, kaolin, medicine, metal powder, mica, milling, minerals, oxides industries etc.
Optional Accessories:
- 10 ml micro sample pool
