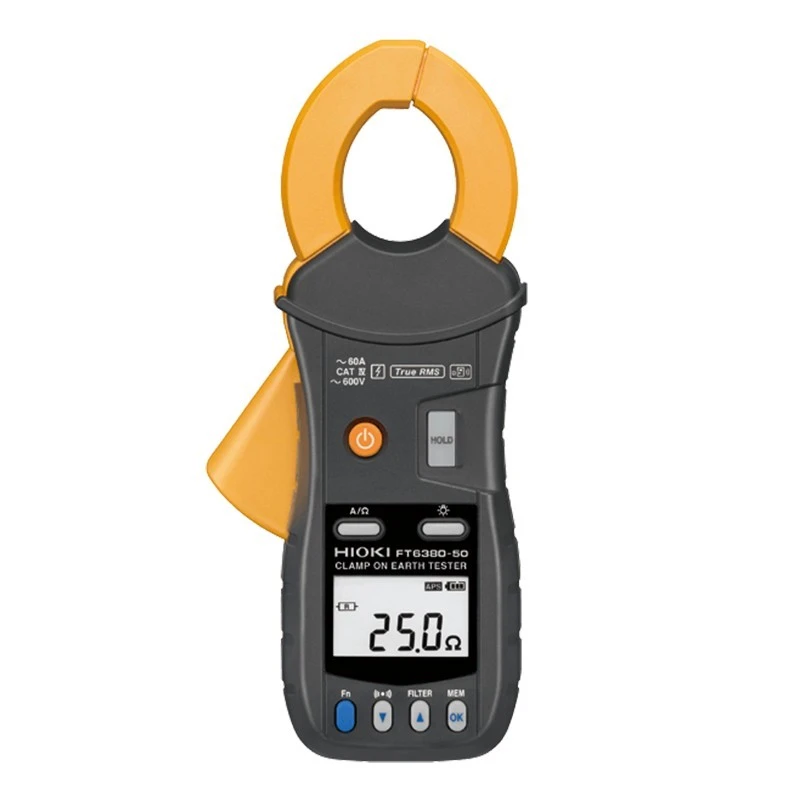

Hioki Clamp On Earth Tester FT6380-50
Specifications
| Country of Origin | Japan |
|---|---|
| Display | LCD / 2000 count / Refresh rate - ~2/sec |
| Brand | HIOKI |
| Power Supply | 2 × AA batteries / 40 hr (without Z3210) / 35 hr (with Z3210) |
| Dimensions | 73 × 218 × 43 mm |
| Model | FT6380-50 |
| Accessories | Carrying case / Resistance check loop (1Ω±2% / 25Ω±1%) / Strap / 2 × AA Batteries / Manual |
| Weight | 620 g |
| Max Input Current | 100 A AC continuous / 200 A for ≤2 min (50/60 Hz) |
| Measurement Principle | Two cores for voltage injection & current measurement to calculate loop resistance |
| AC Current range | 20.00 mA to 60.0 A / 5 ranges / True RMS / Accuracy - ±2.0 % rdg ±0.05 mA |
| Harmonic levels | Up to 30th harmonic (with Z3210) |
| Alarm Function | Beeps for threshold breaches in resistance & current measurement |
| Max Conductor Diameter | φ 32 mm (1.26 in) |
| Other functions | Data hold / Backlight / Filter / Auto power save / Wireless communication (Z3210 required) |
| Earthing Resistance Range | 0.20 Ω to 1600 Ω / 10 ranges / Accuracy - ±1.5 % rdg ±0.02 Ω |
| Max Rated Voltage (V) | 600 VAC (Cat IV) / 8000 V transient |
| Memory Function | Stores up to 2000 data entries |
| Dust/Water Protection | IP40 (Jaws Closed) |
Key Features

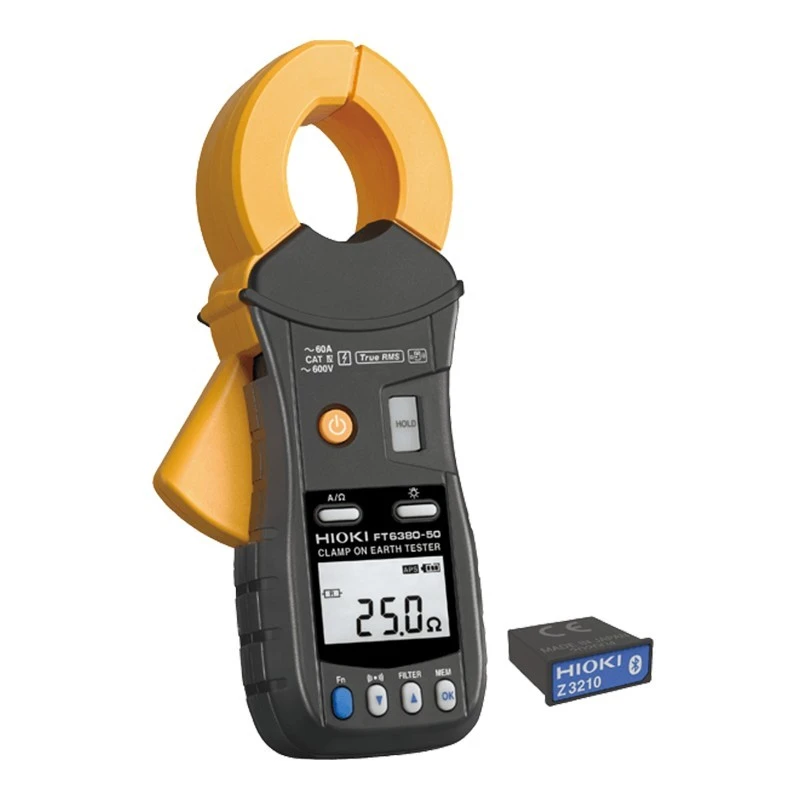

- Wireless data transfer to smartphones/tablets or Excel® (requires Wireless Adapter Z3210).
- Earth resistance measurement for multi-grounded systems.
- High-sensitivity leak current measurement (0.01 mA resolution).
- Load current measurement up to 60.0 A.
- Narrow clamp design for confined spaces.
Product Description
The FT6380-50 measures grounding resistance simply by clamping to multiple-grounded ground wires. No auxiliary grounding rod is needed, and there is no need to disconnect the ground wire from the grounding rod. The compact, low-profile sensor can be used to clamp ground wires with ease, and also provide AC current measurement functionality and can measure currents ranging from leakage current on the order of several mA to load currents of up to 60 A.
Available on EnvMart, these Resistance Meters are designed for precise measurement of electrical resistance in circuits and components. Hioki Resistance Meters deliver high accuracy and reliability, making them essential for electrical testing, maintenance, and quality control applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The earthing resistance range is from 0.20 Ω to 1600 Ω, with 10 available ranges and an accuracy of ±1.5 % rdg ±0.02 Ω.
It measures AC current in a range from 20.00 mA to 60.0 A across 5 ranges, providing True RMS readings with an accuracy of ±2.0 % rdg ±0.05 mA.
The maximum input current is 100 A AC continuous, with a peak of 200 A for up to 2 minutes at 50/60 Hz.
It operates on 2 × AA batteries, providing approximately 40 hours of use without the Wireless Adapter Z3210 and 35 hours with it.
The dimensions are 73 × 218 × 43 mm, and it weighs 620 g.
Included accessories are a carrying case, resistance check loop, strap, 2 × AA batteries, and a manual.
It features an LCD display with a 2000 count and a refresh rate of approximately 2 times per second.
Yes, it can measure harmonic levels up to the 30th harmonic when used with the Wireless Adapter Z3210.
The maximum conductor diameter that the clamp can accommodate is φ 32 mm (1.26 in).
Yes, it has a memory function that can store up to 2000 data entries.
The device has a dust and water protection rating of IP40 when the jaws are closed.
It includes features such as data hold, backlight, filter, auto power save, and wireless communication capabilities (with Z3210).
