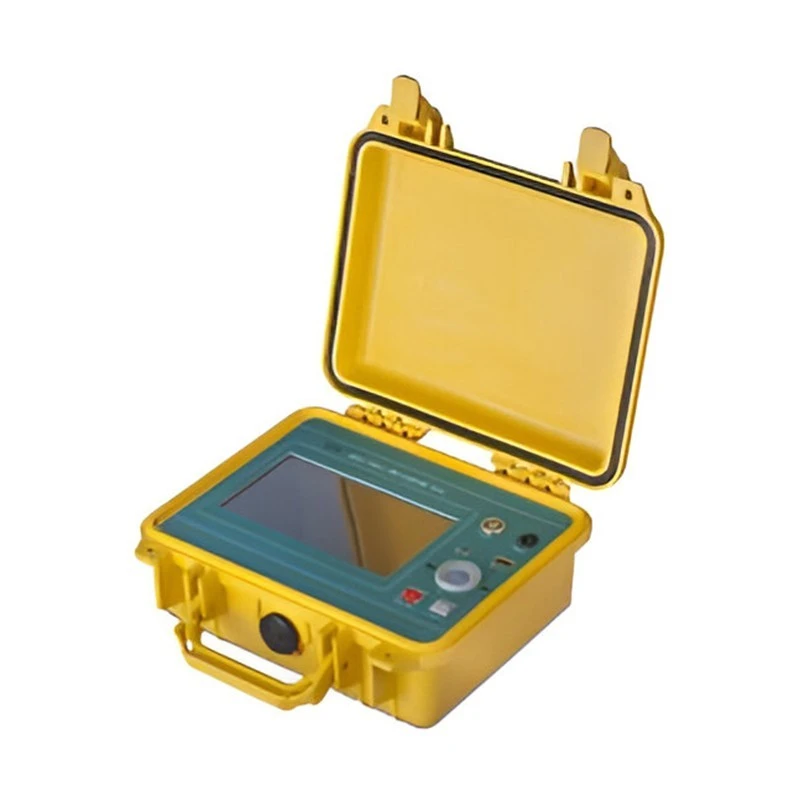

Motwane TFL 8 Cable Fault Pre locator
Specifications
| Country of Origin | India |
|---|---|
| Display | 15.3*8.6CM |
| Measuring range | 100 km max |
| Brand | Motwane |
| Dimensions | 274(L)x240(W)x125(H) mm |
| Working Temperature | 10~Deg~C~+55~Deg~C |
| Sampling Freq. | 200 MHZ |
| Model | TFL 8 |
| Weight | 3.5 Kg Approx |
| Operating Mode | Low voltage impulse TDR and Impulse current ICM |
| Output Impedance | 30 Ohm |
| Dead Zone | 2 meter |
| Type of Protection | Splash proof and dust protected |
| VOP Range | 100~300 meter/sec |
| Gain Range | 0-70 dB |
| Width of Transmitting Pulse | 5ns |
| Voltage Withstand | Power - 1500V / Port - 50V |
| Resolution TDR Mode | 0.425 m |
| Charging Input Supply Voltage (V) | 230V AC / 50Hz / Current 2A |
| Charger Output Voltage (V) | 8.4 V |
| Operation Time of Batteries | 5 Hours Approx |
| Low Voltage of Transmitting Pulse | 30 V |
| Number of Echograms Memories | 100 Memories |
| ICM Mode | 0.85 m |
| Storage Temp . | -20~Deg~C~+60~Deg~C |
Key Features
- Two Workmode TDR & ICM.
- Capable to locate faults in any type of metallic single core armored or multi-core armored cables.
- Comparison facility of faulty cable with healthy.
- Maximum measuring range up to 100 km.
- Big 7" color LED screen with Touchscreen operation.
- Battery Operated.
Product Description
The Cable Fault Pre-locator TFL8 is a latest micro-processor controlled, menu driven, digital technology to offer precise to locate fault distance in any type of metallic cables and easy to operate with friendly interface. It is a portable cable fault locator, easy to use, single-phase unit for cable fault pre-location of short and open faults by using the Low Voltage Impulse method / Time Domain Reflection (TDR) method. Another Impulse Current method (ICM) is available and use for pre-location of low insulation or intermittent nature cable faults by coupling with high voltage surge tester in low, medium and high voltage cables. The maximum measuring ranges enable for pre-location of cable faults is 100 km in different selectable ranges.
Application
It is used for pre-location of short circuit, open circuit fault distance in Low Voltage Impulse method and low insulation / high resistance / flashing fault in Impulse Current method ICM with the help of suitable surge tester by power transmission, distribution network companies and cable fault location service providers.
Standard Accessories
- Low voltage Impulse (TDR) testing cable
- Impulse current method (ICM) testing cable
- Re-chargeable battery charger / Adapter
- Software CD
- Carrying case
- Instruction / User Manual
