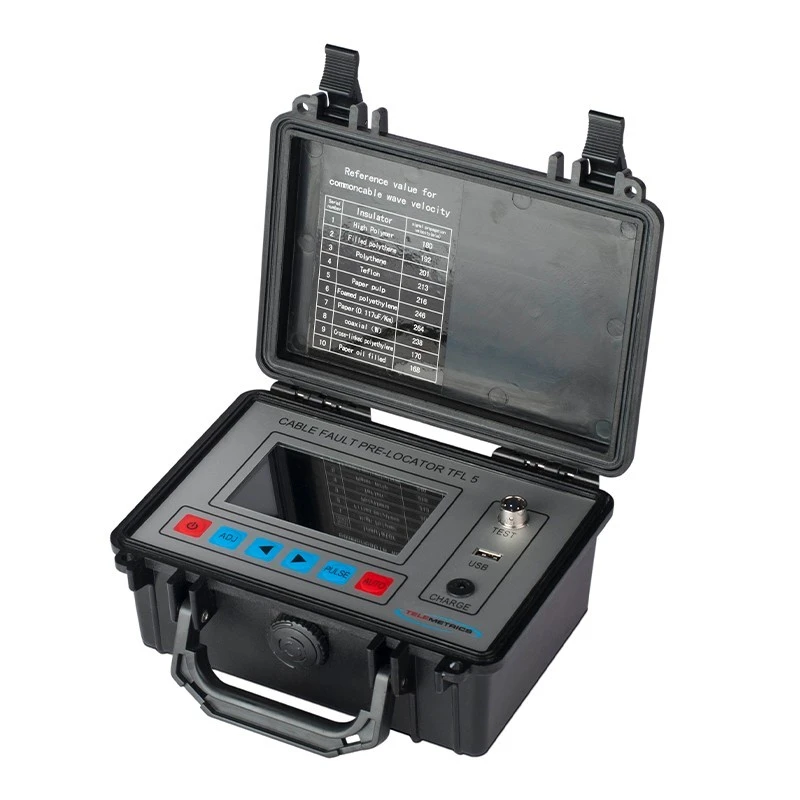

Motwane TFL B5 Cable Fault Pre locator
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 1 Meter |
| Brand | Motwane |
| Power Supply | 7.4 V Rechargeable Li-on battery |
| Dimension | 212 (L) x 170 (W) x 90 (H) mm |
| Storage Temperature | -15~Deg~C~+55~Deg~C |
| Working Temperature | -15~Deg~C~+45~Deg~C |
| Model | TFL B5 |
| Weight | 1.27 Kg Approx |
| Operating Time | 8 Hours |
| Charging Time | 3 Hours |
| Charging Voltage (V) | 230V AC ±10% / 50Hz / Single phase. |
| Measurement Mode | TDR (Time Domain Reflectometer) and Bridge measurement |
| PC Connectivity | USB |
| Impedance Matching | Automatic |
| Fault Distance Range | 8 Km (240m / 480m / 1000m / 2000m / 4000m / 8000m) |
| Fault Accuracy | 1 Meter |
| Pulse Width | 40 ns-10 us |
| VOP Range | 100-300 |
| Sampling Speed | 100 MHZ |
| Pulse Waveform | Two polarity pulse |
| Pulse Amplitude | 0-30 V Adjustment adaptive |
| Gain Range | 1-99 |
| Display Readout | Color LCD and 480*280 |
| Gain Adjustment | Automatic and Manual |
| Testing Accuracy | ±1% x Cable length |
| Measurement Dead Zone | 0 Meter |
| Auto Measurement Dead Zone | 0 Meter |
Key Features
- TDR & Bridge Mode.
- Tests any type of copper telecom and signal cables.
- Comparison facility of faulty cable with healthy.
- Measuring range up to 8km. (Optional 16km).
- Both pulse reflection (TDR) and intelligent bridge (Bridge) testing for open, short, or low insulation cable faults.
- With mega meter it enables to test insulation resistance and loop resistance.
- Battery Operated.
Product Description
It is a menu driven microprocessor based cable fault pre-locator is designed for ease of use. It combines with both Time domain Reflectometer (TDR, pulse reflection) and intelligent bridge testing (Bridge) for measuring the exact fault location such as open circuit and short circuit fault, cross fault and ground fault in any metallic power, telecom, signal and power plastic cables. This is most suitable for field application as it is light weight. Advanced circuitry utilizes high-speed sampling for better resolution of echo-grams.
Application
It is used to pre-locate short circuit, open circuit cable faults distance in TDR and Low insulation faults in bridge mode use in telecom / signal and pilot cable fault location.
Standard Accessories
- Carrying case.
- Rechargeable battery charger / Adapter.
- Connecting test cables.
- Software CD.
- 8GB Pen Drive.
- Instruction / User Manual.
