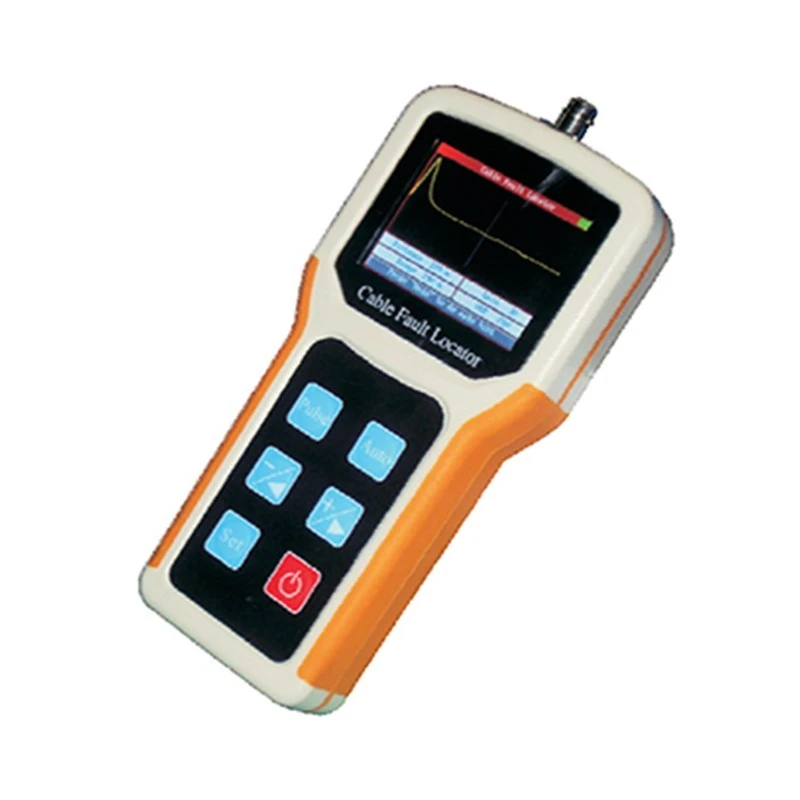

Motwane TFL 4 Cable Fault Pre locator
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 1 Meter |
| Brand | Motwane |
| Power Supply | 7.2 V |
| Power | 1 W |
| Dimensions | 200 (H) x 100 (W) x 36 (D) mm |
| Storage Temperature | -15 Deg C ~ +55 Deg C |
| Working Temperature | -15 Deg C ~ +45 Deg C |
| Model | TFL 4 |
| Weight | 0.4 Kg Approx |
| Output Impedance | 100 ohm |
| Dead Zone | 0 Meter |
| Consumption | Auto Switching |
| Measurement Mode | TDR (Time Domain Reflectometer) |
| Fault Distance Range | 8 km (Auto-4km / Manual 8km) |
| Fault Accuracy | 1 Meter |
| Pulse Width | 40 ns - 6 us Auto-Adjusting1 |
| VOP Range | 100-300 Adjustable |
| Sampling Speed | 100 MHZ |
| Memory Location | USB |
| Gain Range Control | 0-99 Adjustable2 |
| Pulse Waveform | Pulse wave |
| Pulse Amplitude | 0-30 V Auto Adjustment |
| Auto/Manual Measurement | Yes |
Key Features
- TDR mode
- Measurement maximum 8 km in selectable ranges.
- Portable design and easy to use.
- Menu driven operation.
- Tests any type of telecom, coaxial, network or power metallic cables.
- Comparison between healthy with faulty cables.
- Use of high speed Micro-controller.
- Automatic selection of Range, VOP and Gain in Auto mode.
- Automatic and Manual testing mode.
- Fully English Menu is easy to master and use.
- Color LCD Display
- Six function keys and simple operation.
- Pulse reflection testing (TDR) can test broken/open, short type of faults in all metallic cables.
- USB Pen drive, it is easy to upload memory data to computer.
- Rechargeable lithium battery with intelligent charger
- Continued 8 hours operating time on internal battery.
- Small size, light weight and Palm-held unbreakable ABS plastic housing.
- Rugged construction and easy to carry on site.
Product Description
The Cable Fault Pre-locator TFL 4 is a menu-driven microprocessor-based cable fault pre-locator designed for ease of use. It works on the Time Domain Reflectometer principle (TDR) for measuring the exact location of faults like open/broken circuits, short circuits, cross faults, and earthing faults in metallic power, telecom, signal, and plastic cables. It is compact and lightweight, making it suitable for field applications.
Application
Cable Fault Pre-locator is used to pre-locate short circuit, open circuit cable faults distance in TDR mode in power transmission & distribution / telecom network companies or any metallic cables.
Standard Accessories
- Carrying case
- Rechargeable battery charger / Adapter
- Connecting test cables
- Software CD
- 8GB Pen Drive
- Instruction / User Manual
Available on EnvMart, these Cable Trackers are designed for precise wire tracing and continuity testing in electrical installations. Motwane Cable Trackers are known for their accuracy and efficiency, making them essential tools for electricians, telecom technicians, and network engineers.
