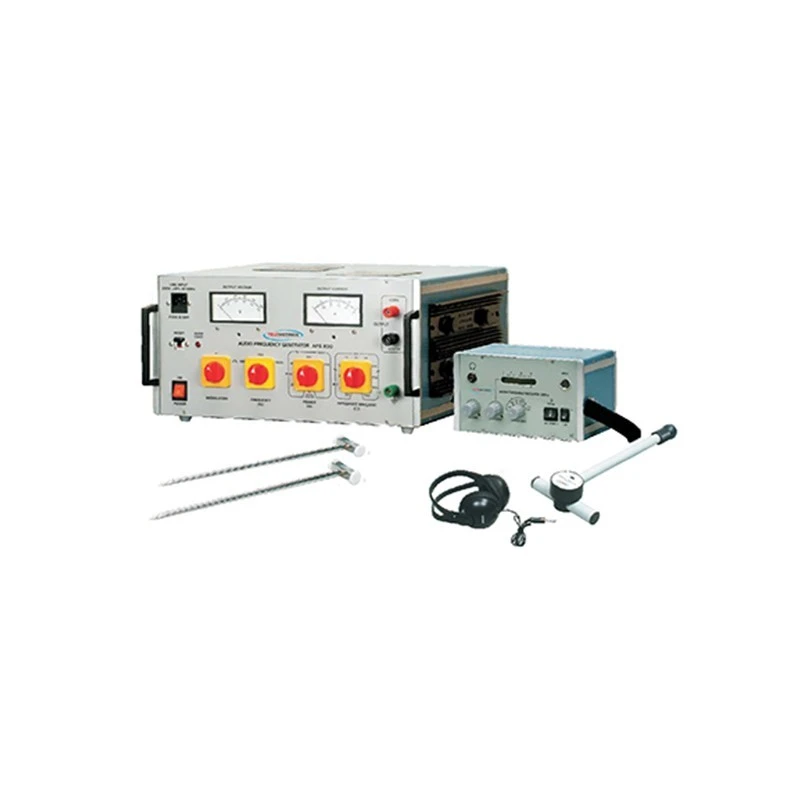

Motwane CRT 500 Cable Route Tracer
Specifications
| Country of Origin | India |
|---|---|
| Brand | Motwane |
| Model | CRT 500 |
| Receiving Frequency (Audio Frequency Receiver AFR 4) | Passive - 50 Hz / Active 480Hz / 1450Hz / 9820Hz selectable |
| Gain (Audio Frequency Receiver AFR 4) | More than 90 db |
| Indication (Audio Frequency Receiver AFR 4) | LCD Bar-graph display with scale illumination for signal strength & Battery status indication |
| Power Supply (Audio Frequency Receiver AFR 4) | 8 x 1.5 V AA size alkaline batteries |
| Operating Time (Audio Frequency Receiver AFR 4) | 8 to 10 hrs without scale illumination |
| Storage Temperature (Audio Frequency Receiver AFR 4) | -5 deg C ~ 60 deg C |
| Working Temperature (Audio Frequency Receiver AFR 4) | 0 deg C ~ 55 deg c |
| Dimensions (Audio Frequency Receiver AFR 4) | 240(L) x 110(H) x 155(D) mm |
| Weight (Audio Frequency Receiver AFR 4) | 1.35 kg Approx |
| Receiving Freq. (Universal Search Coil SC 4) | 50/480 Hz / 1450 Hz / 9820 Hz selectable |
| Axis of Coil (Universal Search Coil SC 4) | Can be swivelled 45/90 Deg |
| Dimensions (Universal Search Coil SC 4) | 470(H) x 80(W) x 207(D) mm |
| Weight (Universal Search Coil SC 4) | 0.85 kg Approx |
| Output Power (Audio Frequency Generator AFG 500) | 5 / 50 / 100 / 250 / and 500 Watts selectable |
| Output Frequency (Audio Frequency Generator AFG 500) | 480Hz / 1450Hz & 9820Hz selectable |
| Impedance Matching (Audio Frequency Generator AFG 500) | From 0.5 to 1000 Ohms selectable |
| Indication (Audio Frequency Generator AFG 500) | Analog meter indication to indicate transmitted Power and Matching / ON Indication |
| Power Supply (Audio Frequency Generator AFG 500) | 230V AC ± 10% / 50 Hz Single phase |
| Storage Temperature (Audio Frequency Generator AFG 500) | -5 Deg C ~ 60 Deg C |
| Working Temperature (Audio Frequency Generator AFG 500) | 0 Deg C ~ 55 Deg C |
| Dimensions (Audio Frequency Generator AFG 500) | 411(L) x 160(H) x 400(D) mm |
| Weight (Audio Frequency Generator AFG 500) | 25 kg Approx |
Key Features
- Route tracing of underground any metallic cables up to 15 km max length.
- Depth Measurement up to 5M.
- Route tracing of underground loaded live cables with passive frequency and inductive coupling.
- Pin-Pointing of contact nature faults.
- Output Power 5, 50, 100, 250 and 500 Watts selectable.
- Output Frequency 480, 1450, 9820Hz selectable.
- Power supply 230V AC + 10 %, 50 Hz Single phase.
Product Description
The Cable Route Tracer CRT 500 is an essential item in the kit for fault location of underground power and telecom cable networks. It is a powerful audio frequency system with a maximum 500 watts output power that can be effectively used for various unique functions such as route tracing of any metallic cable, depth measurement, and live loaded cable tracing. The system is capable of tracing the route of underground cables up to 15km in communication cables and more than 15 km in power cables, and finding out the depth up to 5 meters, by triangulation method.
Application
It is used for route tracing of any underground metallic cable in communication, power transmission, distribution and signal cable networks or cable fault location service provider. It is use to identification of wanted cable from bunch of cables in communication network. It is also use for pin-point a contact nature fault where surge wave system can not be used.
Standard Accessories
- Headphone
- Earth Spikes
- Output connecting cables
- 5 pin connecting cable
- Mains cord
Available on EnvMart, these Cable Trackers are designed for precise wire tracing and continuity testing in electrical installations. Motwane Cable Trackers are known for their accuracy and efficiency, making them essential tools for electricians, telecom technicians, and network engineers.
