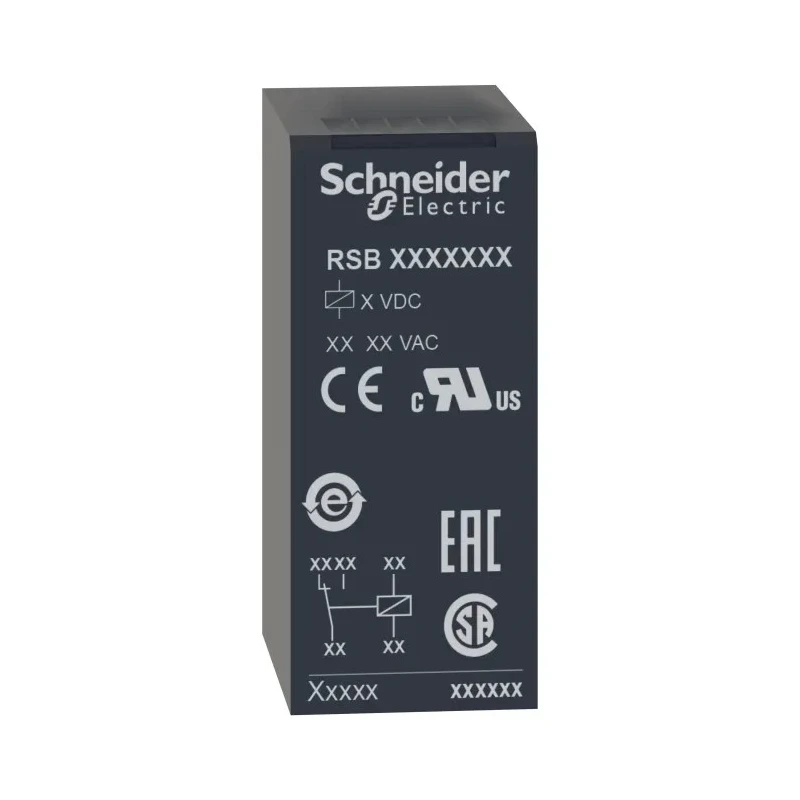

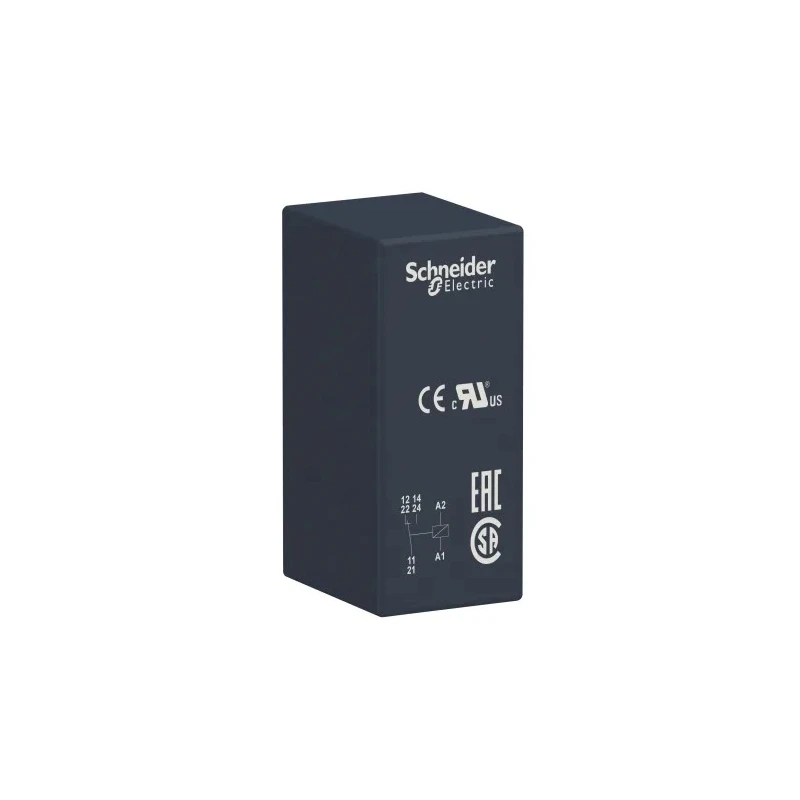

Schneider Electric PCB Power Relay, 12V DC Coil, 16A Switching Current, SPDT RSB1A160JD

Schneider Electric RSB1A160JD is a high-quality PCB Power Relay with a coil voltage of 12V DC and a switching current rating of 16A. Featuring a single pole double throw (SPDT) contact configuration, it is engineered for reliable performance in a wide range of electrical and automation applications.

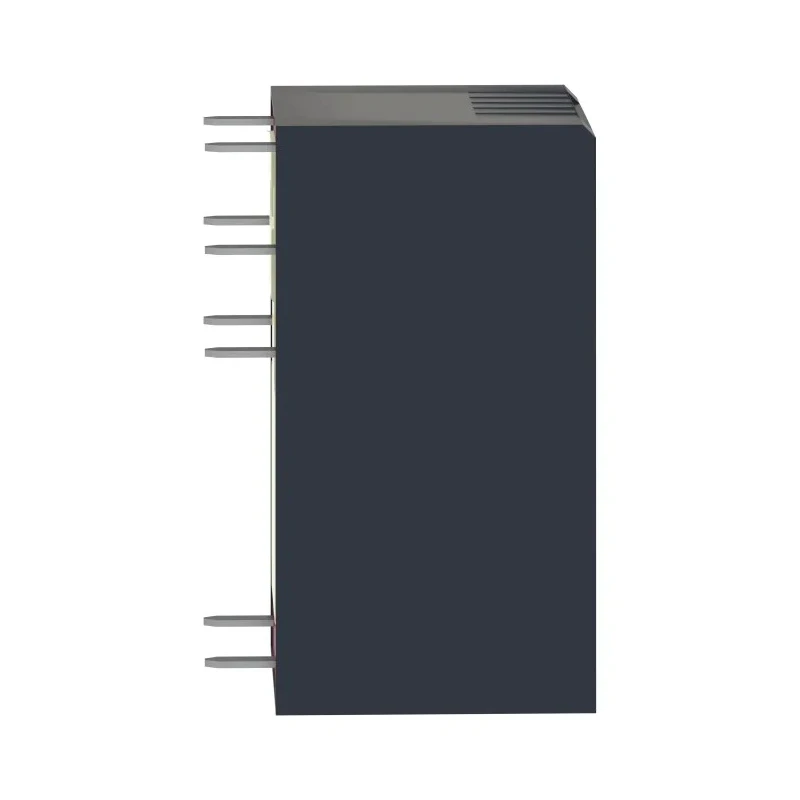

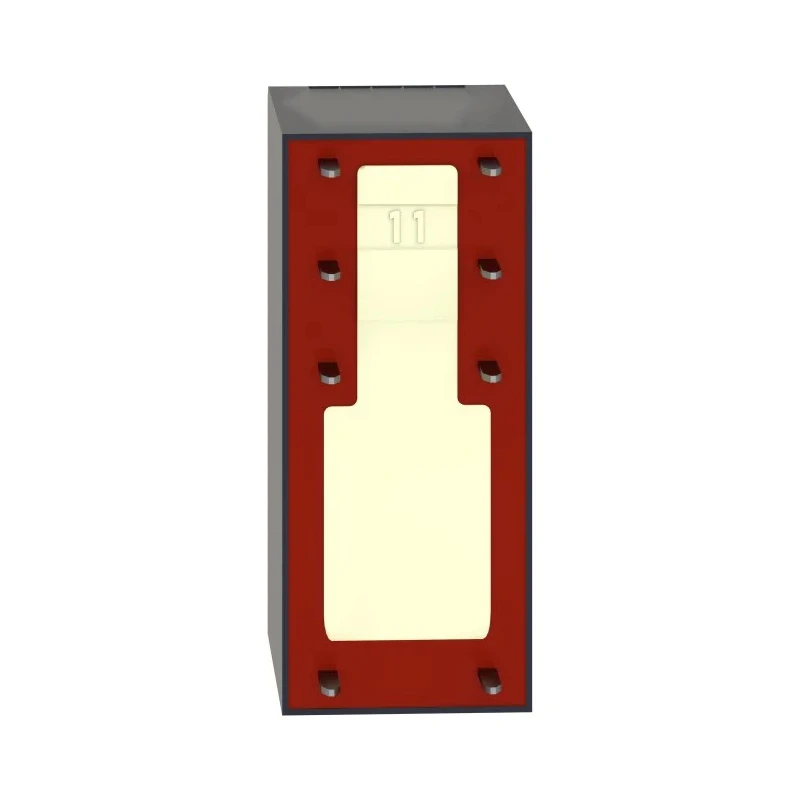

This relay belongs to the Harmony Relay RSB series, known for compact design and robust construction. It is designed for PCB mounting with through hole terminal type, enabling secure installation and seamless integration into printed circuit board assemblies.

The relay’s plug-in type mount allows for easy installation and convenient maintenance, reducing downtime in industrial settings. Its transparent cover offers visual access to the contact status, enhancing operational monitoring.

Constructed with silver alloy (Ag/Ni) contacts, the relay ensures excellent conductivity and durability for long service life. It operates reliably within a temperature range of -40 to 70 °C, suitable for demanding industrial environments.

Key safety and quality certifications include compliance with EN, UL, and CSA standards, supporting safe and standardized deployment.

With a compact footprint of 29mm length, 15.7mm height, and 12.5mm width, this relay helps minimize enclosure size and improve machine reliability. It is IP40 rated, providing protection against solid particles while maintaining ease of access for inspections.

Plug-in type allows easy installation and maintenance. Transparent cover provides visual inspection of contact status. Compact size with dimensions 29mm length, 15.7mm height, and 12.5mm width. Operates within -40 to 70 °C temperature range.

Manufactured using high-quality silver alloy (Ag/Ni) contacts for enhanced reliability. Meets EN, UL, and CSA standards ensuring industrial-grade safety and compliance. IP40 rated protection to prevent ingress of solid objects.

Designed for disassembly supporting sustainability initiatives.

This Schneider Electric PCB Power Relay is widely used in industrial automation, electrical control systems, manufacturing equipment, and other commercial applications requiring robust and reliable relay switching solutions. It supports advancing sustainability goals through its Better World product designation and designed for disassembly features.
