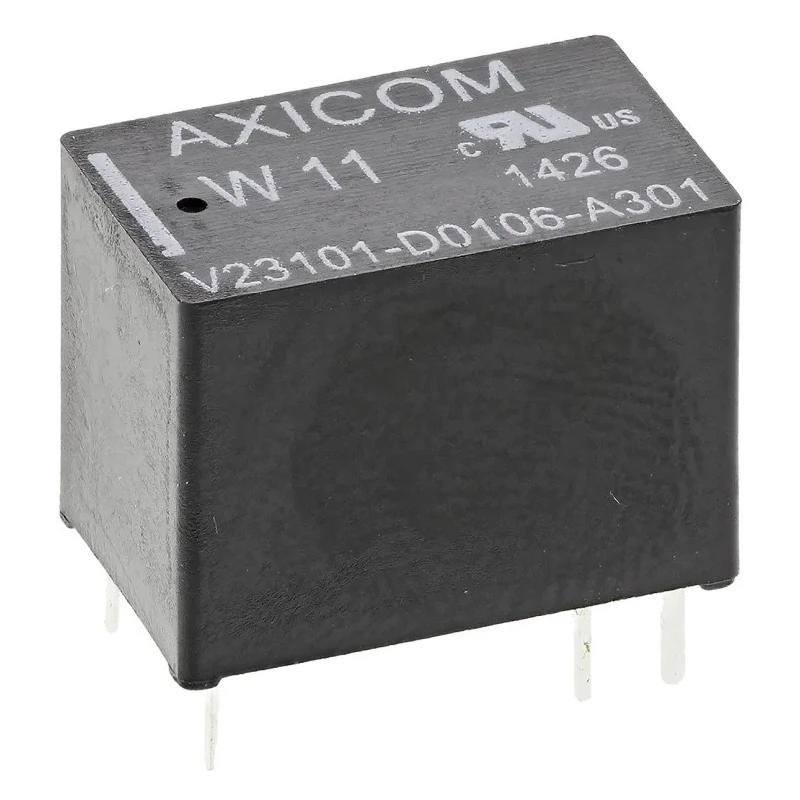

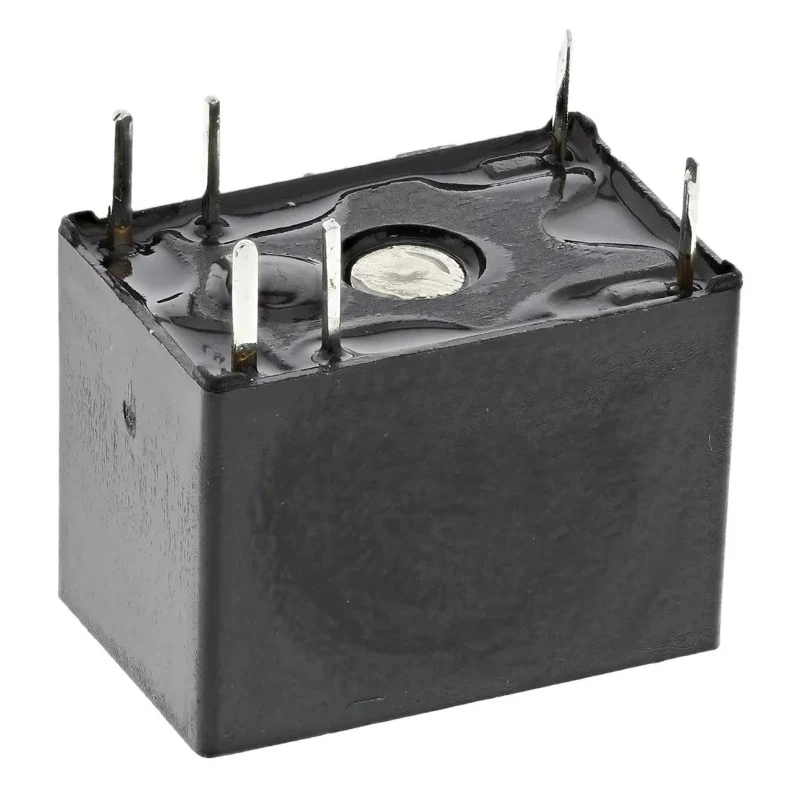

TE Connectivity W11 Series PCB Power Relay SPDT 12V DC Coil 3A Switching Current 120V AC/DC 1422037-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Dimensions | 11.5mm x 10.5mm x 15.5mm |
| Height | 11.5mm |
| Length | 15.5mm |
| Width | 10.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | W11 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 3A |
| Terminal type | Solder |
| Standards/Approvals | REACH, UL, RoHS |
| Coil Resistance | 700Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 120V dc |
| Switching AC Voltage | 120V ac |
| Coil Power | 206mW |
| Pin Length | 3.5mm |
Key Features
- The relay features SPDT contact configuration ensuring versatile use.
- It supports switching voltages up to 120V AC and DC.
- Compact dimensions of 11.5mm height, 10.5mm width, and 15.5mm length allow PCB mounting.
- Designed for operating temperatures ranging from -40°C to 85°C for industrial robustness.
- Coil resistance of 700 ohms and coil power rating of 206mW indicate efficient operation.
- Silver alloy contact material ensures durability and low contact resistance.
- High shock and vibration resistance enhance operational stability.
- Fully sealed construction protects against environmental factors.
Product Description
TE Connectivity 1422037-2 is a highly reliable W11 Series PCB Power Relay designed for industrial and automation applications requiring efficient switching of electrical signals. This SPDT relay operates with a 12V DC coil voltage and is capable of switching currents up to 3A with a maximum switching voltage of 120V AC or DC.
Its compact footprint with dimensions of 11.5mm in height, 10.5mm width, and 15.5mm length, along with a pin length of 3.5mm, makes it ideal for PCB mounting in constrained spaces. The relay is constructed with silver alloy contacts, offering excellent conductivity and reducing wear over time.
Engineered for a wide operating temperature range from -40°C to 85°C, this relay withstands harsh industrial environments, including exposure to high shock and vibration levels. The coil resistance is rated at 700 ohms with a coil power consumption of 206mW, contributing to its energy-efficient operation. Fully sealed, the relay ensures protection against dust and moisture, enhancing longevity.
These attributes make the TE Connectivity 1422037-2 relay suitable for use in industrial automation, manufacturing equipment, HVAC systems, control panels, and other electrical switching applications requiring dependable performance and safety adherence.
The relay uses a SPDT contact configuration for versatile switching options. It supports coil voltage of 12V DC with a coil resistance of 700 ohms. Maximum switching current is 3A with switching voltages up to 120V AC/DC.
Compact dimensions suitable for PCB mounting: 11.5mm x 10.5mm x 15.5mm. Operating temperature ranges from -40°C to 85°C ensuring durability. Contact material is Silver Alloy for reliable electrical conduction. Certified to REACH, UL, and RoHS standards, meeting safety and compliance.
Fully sealed and vibration/shock resistant construction enhances operational reliability.
Choose TE Connectivity Power Relays for robust, compact, and efficient electrical switching solutions. Browse EnvMart's extensive catalog for industrial-grade relays and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this relay is 3A.
The relay has dimensions of 11.5mm in height, 10.5mm in width, and 15.5mm in length.
This model features a Single Pole Double Throw (SPDT) contact configuration.
The coil voltage for this power relay is 12V DC.
The relay operates within a temperature range of -40°C to 85°C.
The coil resistance is rated at 700 ohms.
The contacts are made from silver alloy, which ensures reliable electrical conduction.
Yes, this relay is designed for PCB mounting with a compact footprint.
This relay is certified to REACH, UL, and RoHS standards, ensuring compliance with safety regulations.
The coil power consumption is 206mW.
The maximum switching voltage for both AC and DC is 120V.
The relay is designed to be highly resistant to shock and vibration, enhancing its operational stability.
