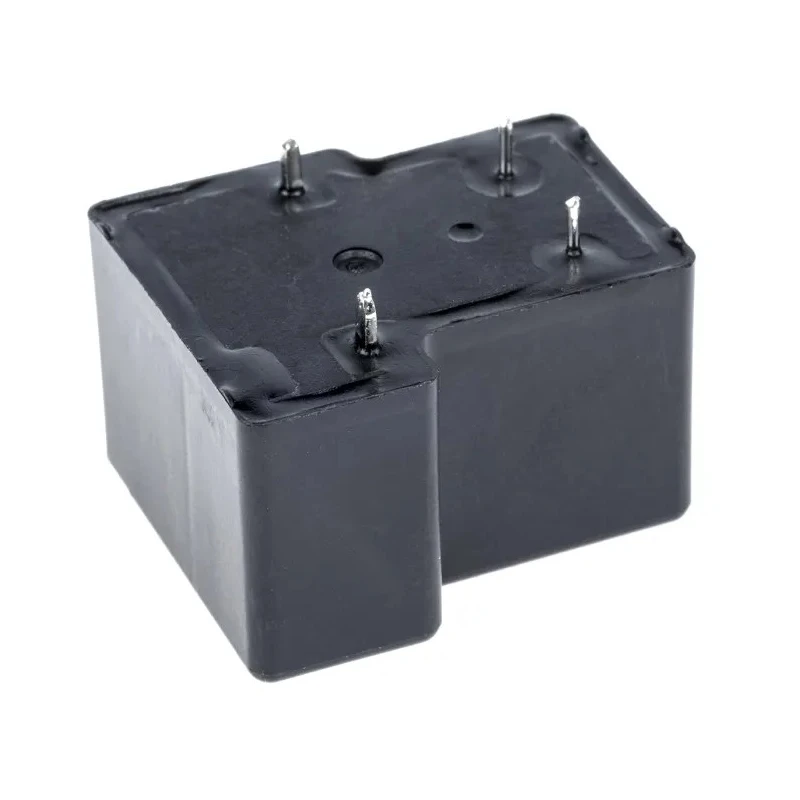

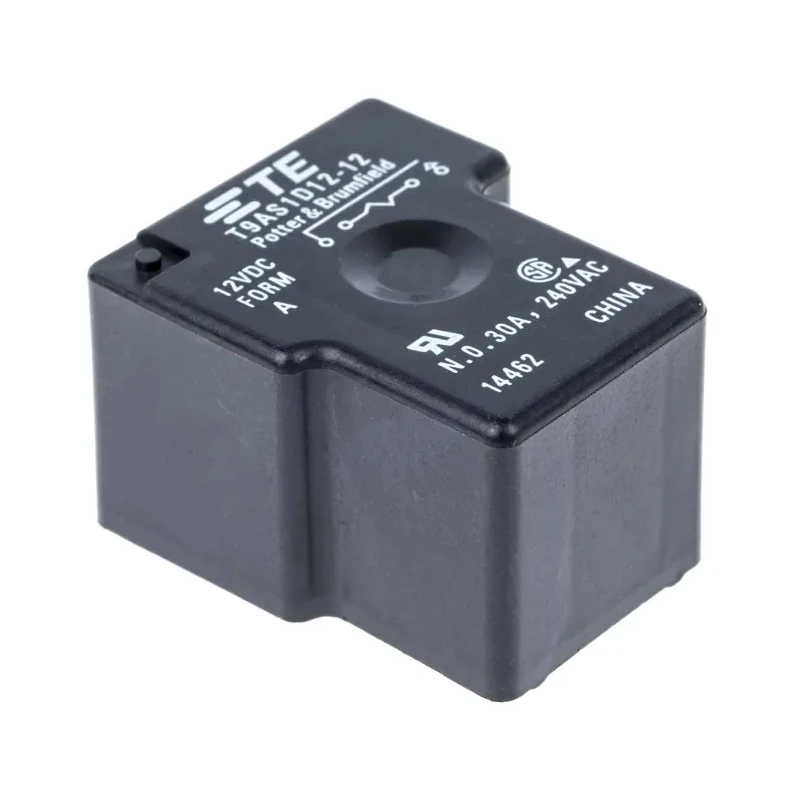

TE Connectivity PCB Power Relay 12V DC Coil 30A Switching Current SPST T9AS1D12-12

TE Connectivity T9AS1D12-12 PCB Power Relay is designed for reliable high-current switching in industrial and electronic control applications. Featuring a 12V DC coil, this relay supports switching currents up to 30A with a single-pole single-throw (SPST) contact configuration, making it ideal for controlling power circuits in automation, manufacturing, and instrumentation systems.

This relay is designed for PCB mounting with solder terminals, ensuring a secure and robust electrical connection. Its compact form factor with dimensions of 32.5mm by 27.4mm by 20.4mm allows for efficient use of PCB space while maintaining high switching capacity. The relay's coil resistance of 144Ω and low coil power requirement of 0.9W contribute to energy-efficient operation within circuit designs.

Operating temperature ranges from -55°C to +85°C guarantee performance under demanding environmental conditions. The contact material is silver alloy, providing low contact resistance of 75mΩ and enhanced durability for long service life. This relay is capable of switching DC voltages up to 28V and AC voltages up to 277V, suitable for a wide range of industrial control applications.

Certified under IEC 61810 standards and compliant with RoHS directives, the T9AS1D12-12 relay is manufactured in China to ensure strict quality and environmental standards are met. The T9A series relay features a wash-tight case design, enhancing its suitability for harsh industrial environments.

The relay operates with a coil voltage of 12V DC for efficient control. Designed for PCB mounting with solder-type terminals for secure connections. Provides a switching current capacity of 30A suitable for heavy-duty applications.

Operates within an ambient temperature range of -55°C to +85°C ensuring reliability in harsh conditions. The compact design includes dimensions: 32.5mm length, 27.4mm width, and 20.4mm height. Silver alloy contact material ensures low resistance and high durability.

Coil resistance is 144Ω with coil power consumption of 0.9W for energy-efficient operation. Suitable for switching DC voltages up to 28V and AC voltages up to 277V. Contact resistance is maintained at a low 75mΩ for optimal performance.

Certified to IEC 61810 standards and RoHS compliant for quality assurance.

This power relay is extensively used in electrical automation, signal conditioning, manufacturing equipment, HVAC control systems, and other demanding industrial applications requiring high reliability and performance.
