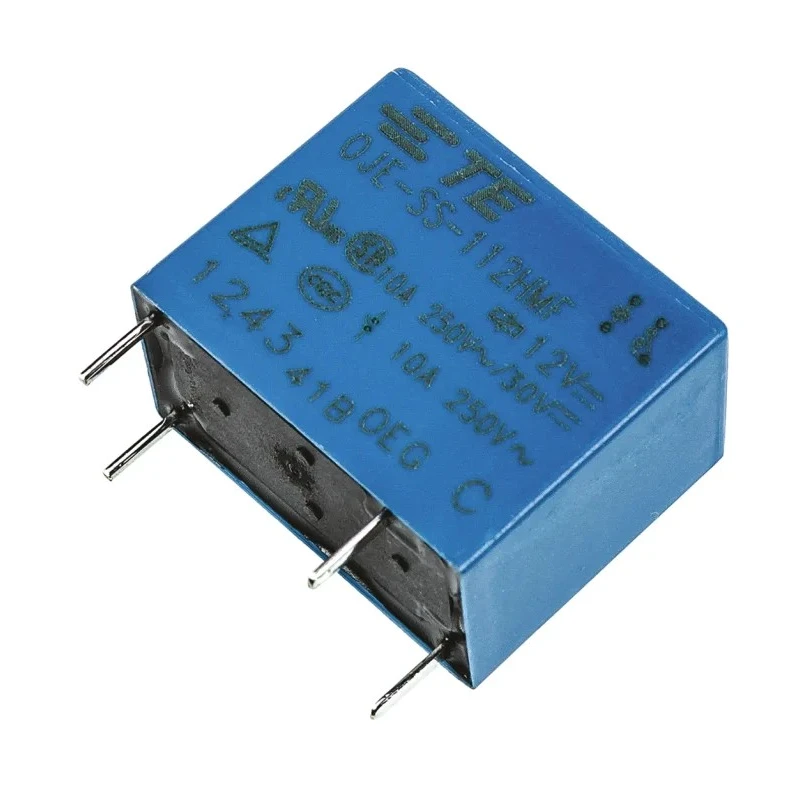

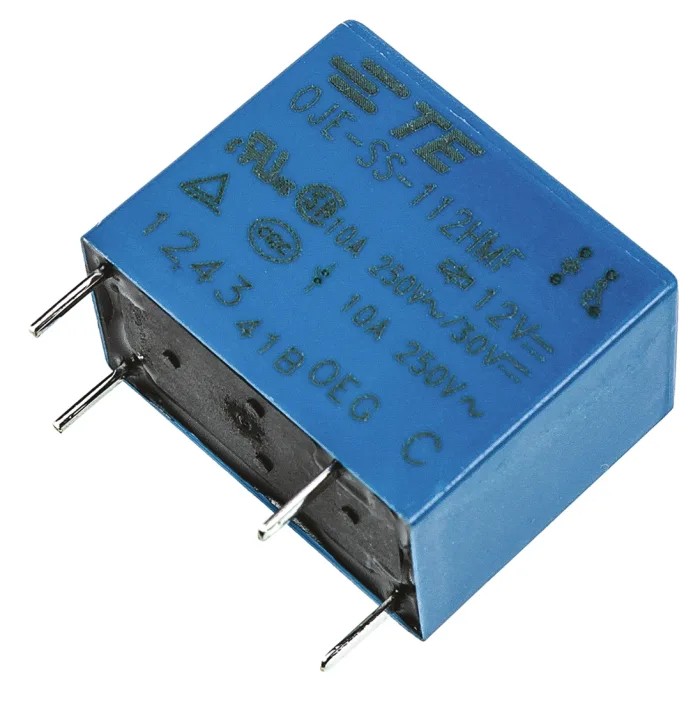

TE Connectivity PCB Power Relay 12V DC Coil 10A Switching Current SPST 4-1419128-4
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 14.6mm |
| Length | 18.2mm |
| Width | 10.2mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | OJE |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 320Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 450mW |
Key Features
- Operates efficiently at coil power of 450mW.
- Switching voltage rating of 250V AC and 28V DC ensures versatile application.
- Compact dimensions of 18.2mm length, 14.6mm height, and 10.2mm width.
- Made with silver alloy contacts offering reliable electrical conductivity.
- Designed for operating temperatures between -30°C and 60°C, suitable for various industrial conditions.
- Features a coil resistance of 320 ohms for optimized performance.
- Complies with RoHS standards indicating limit on hazardous substances.
- Mounts securely on PCBs with solder-type terminals ensuring ease of installation.
Product Description
TE Connectivity 4-1419128-4 PCB Power Relay is engineered to deliver dependable switching performance with a coil voltage of 12V DC and a switching current of 10A in a single-pole single-throw (SPST) configuration. This relay is ideal for PCB mounting applications where compact size and efficient operation are critical.
The OJE series relay combines a 450mW coil power consumption with a coil resistance of 320 ohms. It supports switching AC voltages up to 250V and DC voltages up to 28V, making it versatile for different electrical control circuits in industrial, automation, and electrical applications.
Constructed with silver alloy contact material, the relay ensures excellent conductivity and durability. Its dimensions are optimized for PCB integration, measuring 18.2mm in length, 14.6mm in height, and 10.2mm in width.
Designed to operate in a temperature range from -30°C to 60°C, it is suitable for a wide array of environments including industrial automation, control systems, and signal conditioning equipment.
The product complies with RoHS directives, reflecting environmental and safety compliance standards. Installation is facilitated via solder terminal types, providing secure electrical connections on printed circuit boards.
Operates efficiently at coil power of 450mW. Switching ratings include 250V AC and 28V DC for flexible usage. Compact dimensions support PCB mounting requirements. Silver alloy contacts ensure reliable conductivity. Wide operating temperature range for diverse environments.
Coil resistance of 320 ohms for optimized switching. RoHS compliant for environmental safety. Solder terminal type for durable PCB mount installation.
This TE Connectivity power relay is a reliable choice for engineers and technicians working in electronics manufacturing, industrial equipment, HVAC systems, and various automation solutions. It enhances production efficiency and system reliability in controlling electrical circuits.
Explore EnvMart's extensive catalogue for more Power Relays and electronic components tailored to your technical and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 12V DC.
This relay can handle a maximum switching current of 10A.
The dimensions of this model are 18.2mm in length, 14.6mm in height, and 10.2mm in width.
The switching voltage rating is 250V AC and 28V DC.
This relay features a single-pole single-throw (SPST) contact configuration.
The coil power consumption of this relay is 450mW.
The contacts of this relay are made from silver alloy, ensuring reliable electrical conductivity.
The relay is designed to operate within a temperature range of -30°C to 60°C.
This relay mounts securely on PCBs using solder-type terminals.
Yes, this product complies with RoHS standards, indicating limits on hazardous substances.
The coil resistance of this relay is 320 ohms.
This power relay belongs to the OJE series.
