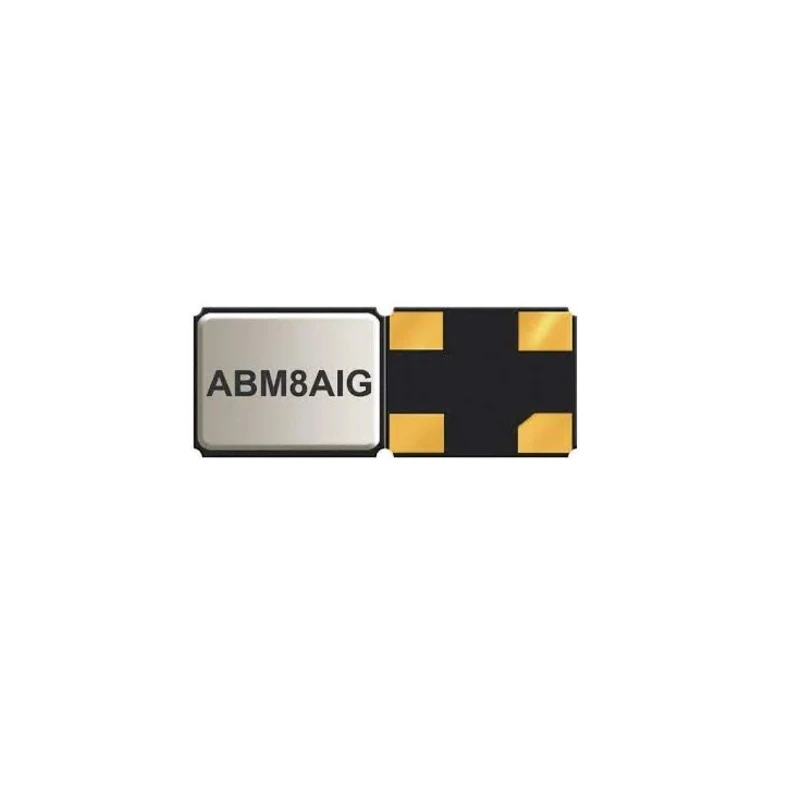

Abracon 12 MHz ±50 ppm Surface Mount Ceramic Package Crystal 4-Pin 3.2 mm x 2.5 mm x 0.8 mm ABM8AIG-12.000MHZ-12-2Z-T3

Free Delivery in India | Lowest Global Shipping Charges

Abracon 12 MHz ±50 ppm Surface Mount Ceramic Package Crystal 4-Pin 3.2 mm x 2.5 mm x 0.8 mm ABM8AIG-12.000MHZ-12-2Z-T3

Name: Abracon 12 MHz ±50 ppm Surface Mount Ceramic Package Crystal 4-Pin 3.2 mm x 2.5 mm x 0.8 mm ABM8AIG-12.000MHZ-12-2Z-T3
Brand: Abracon
SKU: 424318
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	0.8mm
Length	3.2mm
Model	ABM8AIG-12.000MHZ-12-2Z-T3
Packaging	Tape & Reel
Width	2.5mm
Mount Type	Surface
Series	ABM8AIG
Maximum Operating Temperature	85°C
Package Type	Ceramic package
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Automotive Standard	AEC-Q200
Standard Frequency	12MHz
Load Capacitance	12pF
Series Resistance	100Ω
Automotive Grade 1	-40°C to +125°C

Key Features

Automotive grade AEC-Q200 qualified crystal for reliable performance.
Hermetically seam sealed ceramic package ensuring durability.
Standard frequency of 12 MHz with 12pF load capacitance.
Operates reliably from -40°C to 85°C (automotive grade extends to 125°C).
Low series resistance of 100Ω for efficient oscillation.
Surface mount type with 4-pin configuration.
RoHS and Pb free compliant ensuring environmental safety.

Product Description

The Abracon ABM8AIG-12.000MHZ-12-2Z-T3 is a high-quality surface mount crystal oscillator operating at a standard frequency of 12 MHz with a frequency tolerance and stability of ±50 ppm. Housed in a hermetically seam sealed ceramic package, this 4-pin device features compact dimensions of 3.2 mm length, 2.5 mm width, and 0.8 mm height, making it ideal for space-constrained electronics.

This crystal is designed to meet stringent automotive and industrial standards, being AEC-Q200 qualified and graded for automotive operating temperatures from -40°C to +125°C for Grade 1. It offers a 12 pF load capacitance and a low series resistance of 100Ω, ensuring stable and efficient oscillation in critical applications.

Due to its robust ceramic packaging and reliable frequency stability, this crystal is suitable for use in infotainment systems, GPS and navigation modules, advanced driver assistance systems (ADAS), LiDAR, and other demanding industrial and automotive electronics.

The product is RoHS and Pb free compliant, supporting environmental regulations for modern electronics manufacturing. The packaging comes in tape and reel format facilitating automated assembly processes.

Automotive and industrial-grade quality with AEC-Q200 certification. Hermetically sealed ceramic package for durability and reliability. Precision 12 MHz frequency with ±50 ppm tolerance and stability. Compact 4-pin surface mount package suitable for high-density PCB.

Wide operating temperature range suitable for harsh environments. Low series resistance enhances oscillation effectiveness. RoHS and Pb free compliant for environmental responsibility. Available on tape and reel packaging for automated manufacturing.

For applications requiring reliable crystal units in industrial, automotive, telecommunications, and navigation systems, the Abracon ABM8AIG series delivers excellent performance and ruggedness. Explore more crystal units and related electronics components within EnvMart's broad catalog.
