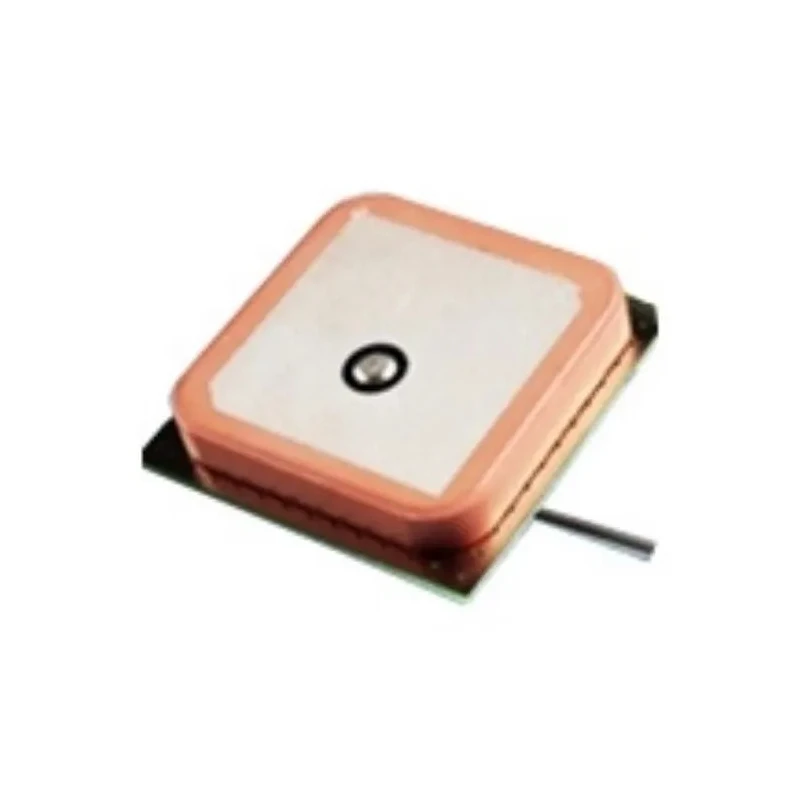

Abracon Internal Patch GPS Antenna with IPEX Connector 1575.42MHz 28dB Gain APAM2764YK0175

Free Delivery in India | Lowest Global Shipping Charges

Abracon Internal Patch GPS Antenna with IPEX Connector 1575.42MHz 28dB Gain APAM2764YK0175

Name: Abracon Internal Patch GPS Antenna with IPEX Connector 1575.42MHz 28dB Gain APAM2764YK0175
Brand: Abracon
SKU: 424269
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Model	APAM2764YK0175
Connector Type	IPEX
Bandwidth	5MHz
Series	APAM2764YK0175
Gain	28dB
Lead Length	50mm
Standards/Approvals	RoHS/RoHS II
Maximum Frequency	1575.42MHz
Minimum Frequency	1575.42MHz
Internal/External	Internal
RF Protocols	GPS, GNSS
Antenna Physical Form	Patch
Antenna Mount Type	PCB
Antenna Internal Construction	Dielectric Ceramic

Key Features

The antenna features an internal dielectric ceramic construction for enhanced signal quality.
It offers a high gain of 28dB, improving signal sensitivity and accuracy.
Compact patch form factor designed for PCB mounting with a 50mm lead length for easy installation.
Compatible with GPS and GNSS RF protocols, suitable for precise positioning applications.
RoHS and RoHS II compliant, ensuring environmental safety and quality standards.
Operates effectively within a temperature range of -45 to +85°C for diverse environments.
This antenna is ideal for healthcare monitoring devices, personal navigation, surveying, and mobile phones.
Includes lead for mounting convenience and signal connection using an IPEX connector.

Product Description

The Abracon APAM2764YK0175 Internal Patch GPS Antenna with IPEX Connector operates at a precise frequency of 1575.42MHz, optimized for GPS and GNSS applications. This compact and internally mounted antenna delivers superior signal reception with a high gain of 28dB, enabled by its dielectric ceramic internal construction. It connects via an IPEX connector and includes a 50mm lead, facilitating easy integration on PCBs.

Designed to withstand environmental challenges, this antenna functions reliably across a temperature range of -45°C to +85°C, making it suitable for various industrial and commercial uses including healthcare, medical monitoring, personal navigation devices (PND), personal digital assistants (PDA), surveying equipment, and mobile phone applications.

Abracon ensures this antenna meets stringent environmental standards with RoHS and RoHS II compliance, emphasizing sustainability alongside performance. Its compact patch form factor allows for internal mounting on devices where space is at a premium, without compromising the quality of GPS/GNSS signal acquisition.

Internal dielectric ceramic construction for enhanced signal quality. High gain of 28dB for improved sensitivity and accuracy. Compact patch form factor with PCB mount type and 50mm lead length. RoHS and RoHS II compliant to meet environmental safety standards.

Wide operating temperature range of -45 to +85°C for versatile applications. Compatible with GPS and GNSS RF protocols. Includes lead and IPEX connector for seamless integration.

This GPS antenna is well-suited for industrial, laboratory, manufacturing, medical, surveying, and commercial devices that demand reliable and precise positioning data. Its robust construction and compliance standards make it a trustworthy component for embedding in complex electronic systems.
