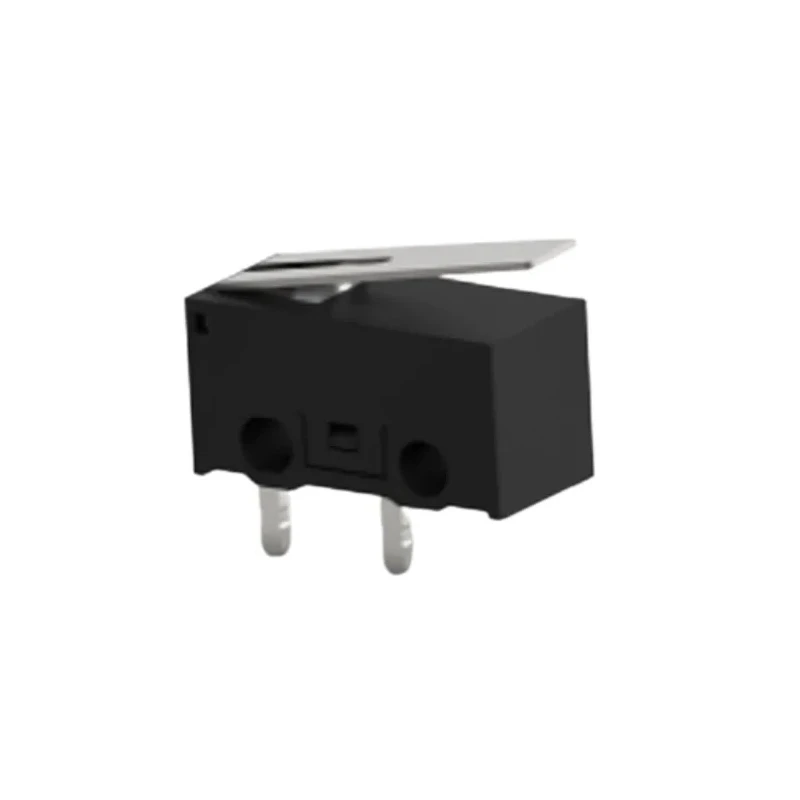

TE Connectivity Lever Snap Action Micro Switch, PCB Terminal, 0.1A, SPST SAJ101XHL0N74SNOPTQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ101XHL0N74SNOPTQ |
| Series | SAJ1 |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPST |
| Actuator Type | Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 0.1A |
| Operating Force | 0.75N |
| Mechanical Life | 1000000Cycles |
| Microswitch Type | Miniature |
Key Features
- The actuator type is a lever for precise mechanical input conversion.
- Designed with PCB terminals, ensuring compatibility with circuit boards.
- Operates at forces of 0.75N providing responsive actuation.
- Miniature microswitch type ideal for compact electronic applications.
- Mechanical life rated for 1,000,000 cycles ensuring durability.
- Suitable operating temperature ranges from -25°C to 75°C for diverse environments.
- Conforms to RoHS standards ensuring environmental compliance.
- Ideal for home appliances, consumer electronics, and factory automation uses.
Product Description
TE Connectivity SAJ101XHL0N74SNOPTQ lever snap action micro switch with PCB terminal and a 0.1A contact current and SPST configuration is engineered for precise and reliable electrical switching applications. This miniature micro switch features a lever actuator type, designed for converting mechanical actions into electrical signals efficiently.
The switch incorporates PCB terminals, providing secure and stable connections suitable for printed circuit boards across various industrial and consumer electronics. It requires an operating force of 0.75N, delivering responsive switching performance with a mechanical life rating of 1,000,000 cycles, indicating long service durability.
Designed to operate efficiently within temperature limits of -25°C to 75°C, this micro switch is appropriate for use in environments ranging from domestic to industrial and factory automation settings. Compliance with RoHS standards guarantees environmentally safe manufacturing and usage.
Applications include integration into home appliances, consumer electronics, and factory automation circuits, where reliable snap action switching is essential. The switch is dimensionally compatible with other popular brands, facilitating easy replacement and design integration.
The actuator type is a lever providing reliable mechanical actuation. The PCB terminal offers ease of mounting on printed circuit boards. It supports a switch contact current of 0.1A suitable for low-current signal switching.
Configured as Single Pole Single Throw (SPST) for straightforward switching tasks. The mechanical life of one million cycles ensures longevity and endurance in demanding conditions. RoHS compliance ensures the device meets environmental and safety regulations.
Operating force specification ensures consistent activation with minimal operator effort. Wide temperature tolerance expands utility across varied operational environments.
This TE Connectivity micro switch model SAJ101XHL0N74SNOPTQ represents a high-quality component ideal for electronics, industrial automation, and consumer appliance manufacturers seeking dependable snap-action switches. EnvMart customers can find this product categorized under Micro Switches in electronics and electrical components for professional and industrial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range for this model is from -25°C to 75°C, making it suitable for various environments.
This micro switch has a mechanical life rating of 1,000,000 cycles, indicating its durability for long-term use.
It features a lever actuator type, designed for precise mechanical input conversion.
The contact configuration is Single Pole Single Throw (SPST), suitable for straightforward switching tasks.
The switch contact current for this model is 0.1A, making it suitable for low-current signal switching applications.
This model requires an operating force of 0.75N for actuation, ensuring responsive switching performance.
It is equipped with PCB terminals, providing secure and stable connections suitable for printed circuit boards.
Yes, it conforms to RoHS standards, ensuring environmentally safe manufacturing and usage.
This model is suitable for integration into home appliances, consumer electronics, and factory automation circuits.
The country of origin for this micro switch is China.
This micro switch belongs to the SAJ1 series from TE Connectivity.
This model is classified as a miniature microswitch, ideal for compact electronic applications.
