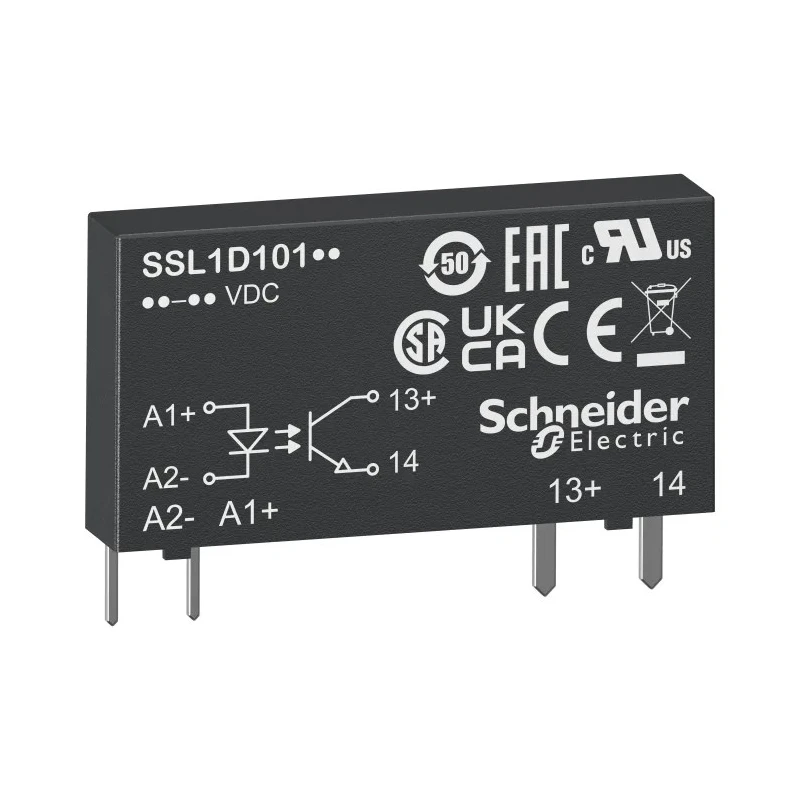

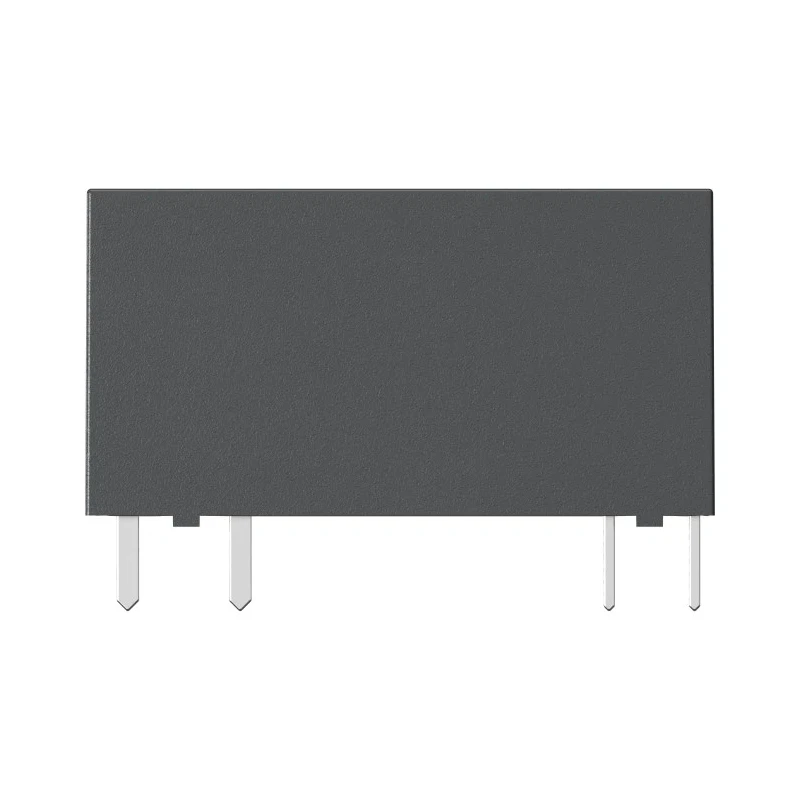

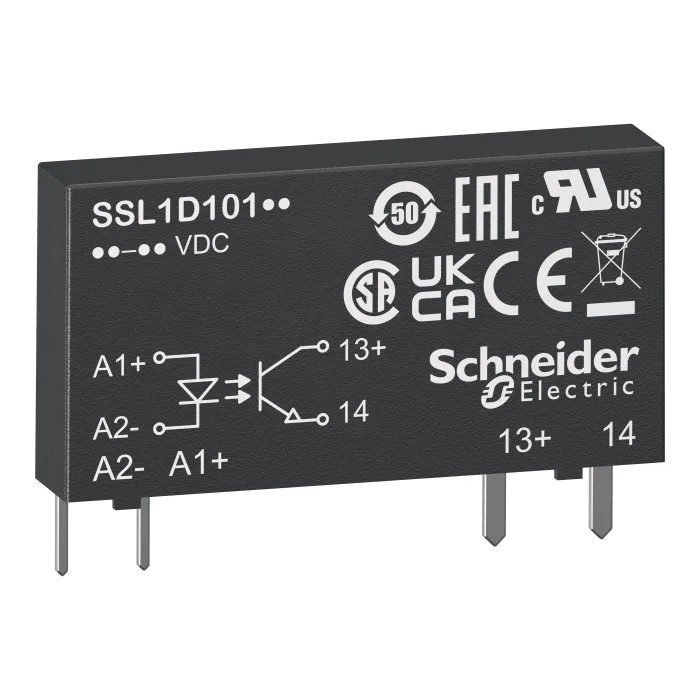

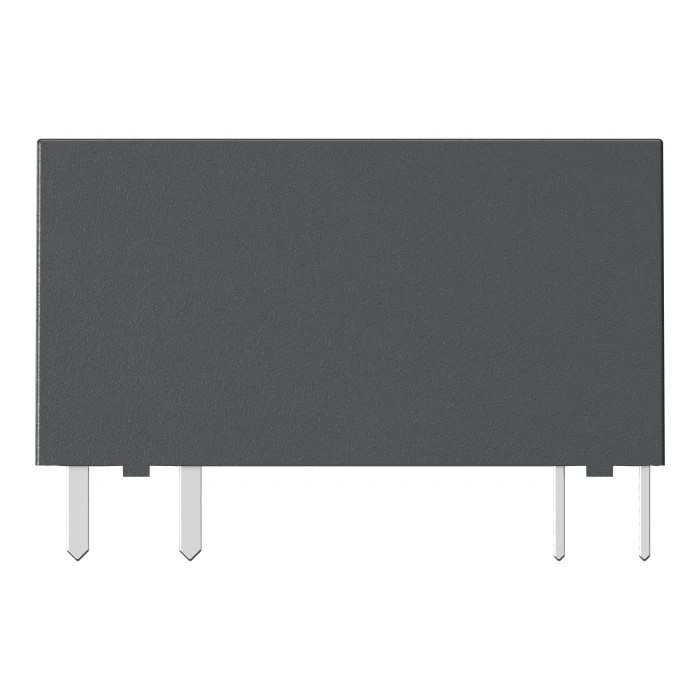

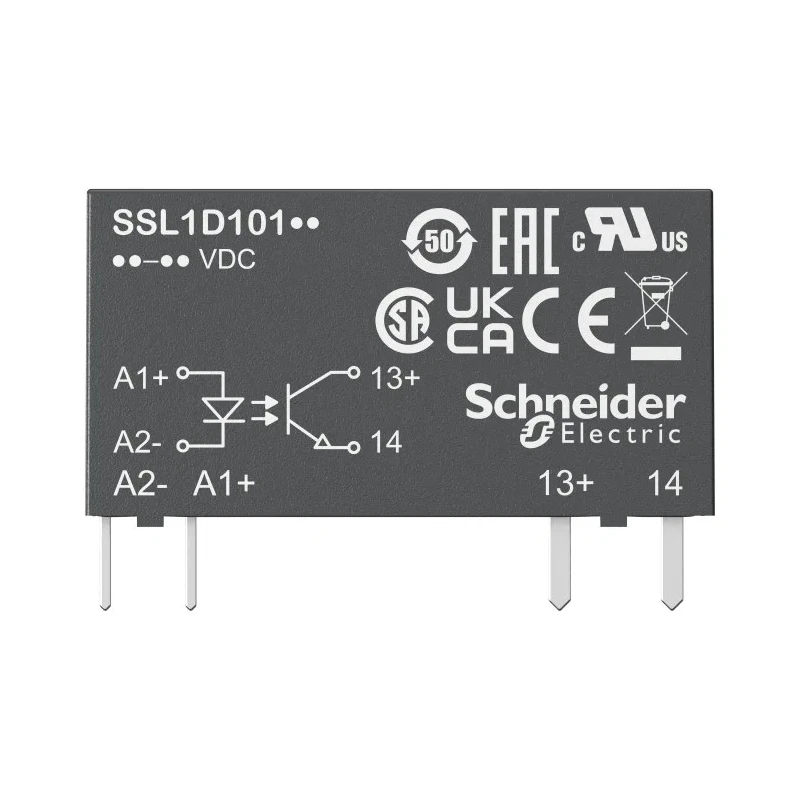

Schneider Electric Harmony Relay Series Solid State Relay 0.1A Load 48V dc Load 30V dc Control SSL1D101BD
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Schneider Electric |
| Height | 15mm |
| Length | 28mm |
| Model | SSL1D101BD |
| Width | 5mm |
| Output type | Transistor, Switching Power Supply |
| Series | Harmony Relay |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 1.5pF |
| Minimum Operating Temperature | -20°C |
| Terminal type | PCB Terminal |
| Maximum Load Current | 0.1A |
| Standards/Approvals | UL, CSA, CE |
| Maximum Load Voltage | 48V dc |
| Minimum Load Voltage | 1V dc |
| Minimum Control Voltage | 16V dc |
| Maximum Control Voltage | 30V dc |
| Off State Leakage Current | 0.001mA |
Key Features
- Designed for PCB mounting with a compact 5mm width.
- Contact configuration is Single Pole Single Throw (SPST) for straightforward switching.
- Operates in temperatures from -20°C to 80°C, suitable for industrial environments.
- Features UL, CSA, and CE approvals indicating quality and safety standards compliance.
- Transistor output type ensures silent and reliable operation with no mechanical contacts.
- Low off-state leakage current of 0.001mA reduces power loss impacts.
- Capacitance is minimal at 1.5pF to avoid signal interference.
- Rated for load voltages from 1V to 48V DC with control voltages between 16V to 30V DC.
Product Description
Schneider Electric SSL1D101BD Harmony Relay Series Solid State Relay is engineered for precise control of low current DC loads up to 0.1A. Featuring a maximum load voltage of 48V DC and control voltage range of 16V to 30V DC, this relay provides silent and reliable switching without the wear points of mechanical contacts. Its transistor output type enhances longevity and performance in harsh industrial environments.
This relay's slim design, with just 5mm width and a height of 15mm and length of 28mm, is ideal for compact PCB mounting or DIN rail socket configuration, making it suitable for diverse automation and control applications in industries like manufacturing, HVAC, and signal conditioning. The SPST contact configuration allows straightforward load control in automation systems.
Built to withstand challenging industrial conditions, it operates reliably within a temperature range of -20°C to 80°C and features certifications including UL, CSA, and CE, ensuring compliance with international safety standards. The low off-state leakage current of 0.001mA and minimal capacitance of 1.5pF contribute to efficient and interference-free operation.
The product is manufactured in Mexico and is part of the Harmony Relay series known for innovative, durable relay solutions. This Solid State Relay is especially suited for projects requiring space optimization and reduced electromagnetic noise, such as industrial automation, electrical installations, and control panels.
Designed for PCB mounting and slim interfaces. High switching frequency and long life span. Resistant to shock, vibration, and contamination. Zero voltage switching or random switching available. Compact and modular design for easy DIN Rail installation.
Ideal for automation, manufacturing, and industrial control systems. Explore more Schneider Electric relays and industrial control products at EnvMart for quality and innovation in electrical automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 0.1A.
It operates reliably within a temperature range of -20°C to 80°C.
The control voltage range for this relay is between 16V and 30V DC.
This relay features a Single Pole Single Throw (SPST) contact configuration.
The maximum load voltage supported by this model is 48V DC.
It provides a transistor output type, ensuring silent and reliable operation.
The dimensions are 5mm in width, 15mm in height, and 28mm in length.
The off-state leakage current is 0.001mA, which helps reduce power loss.
This model has UL, CSA, and CE certifications, indicating compliance with quality and safety standards.
Yes, it is designed for PCB mounting with a compact width of 5mm.
It is suitable for automation, manufacturing, and industrial control systems.
This solid state relay is manufactured in Mexico.
