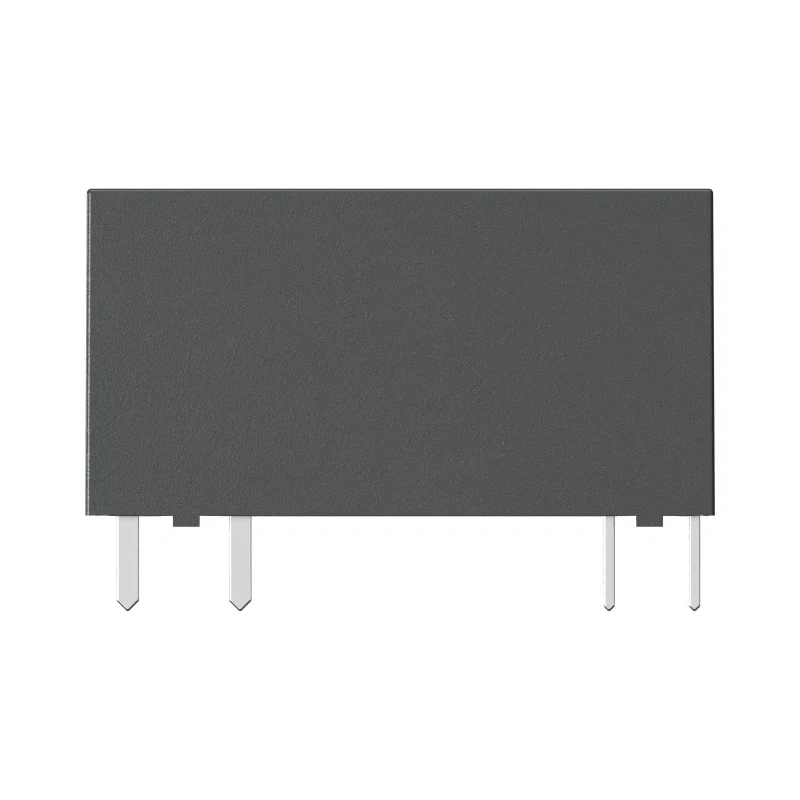

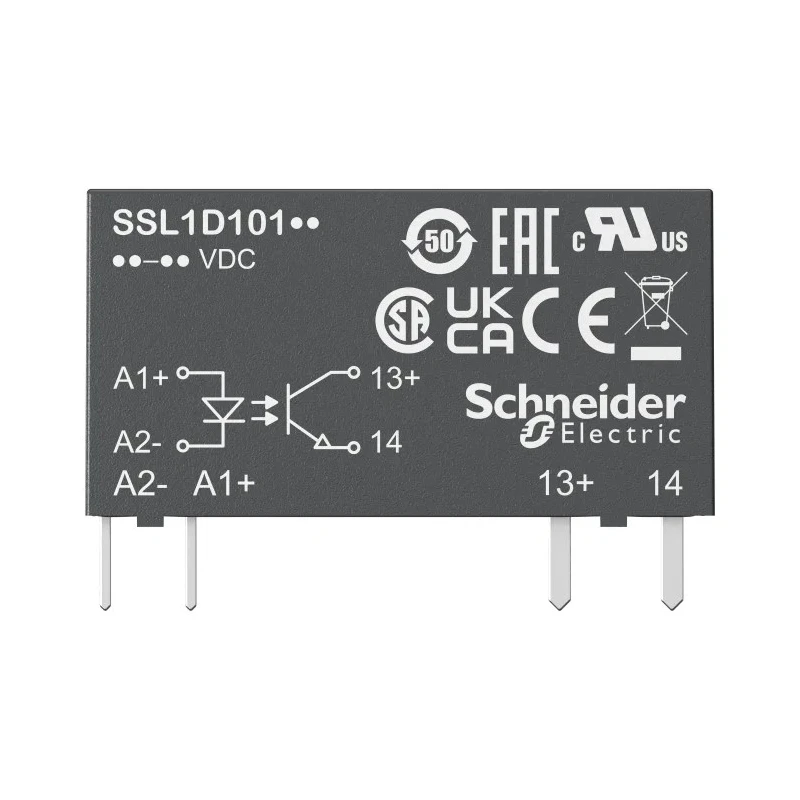

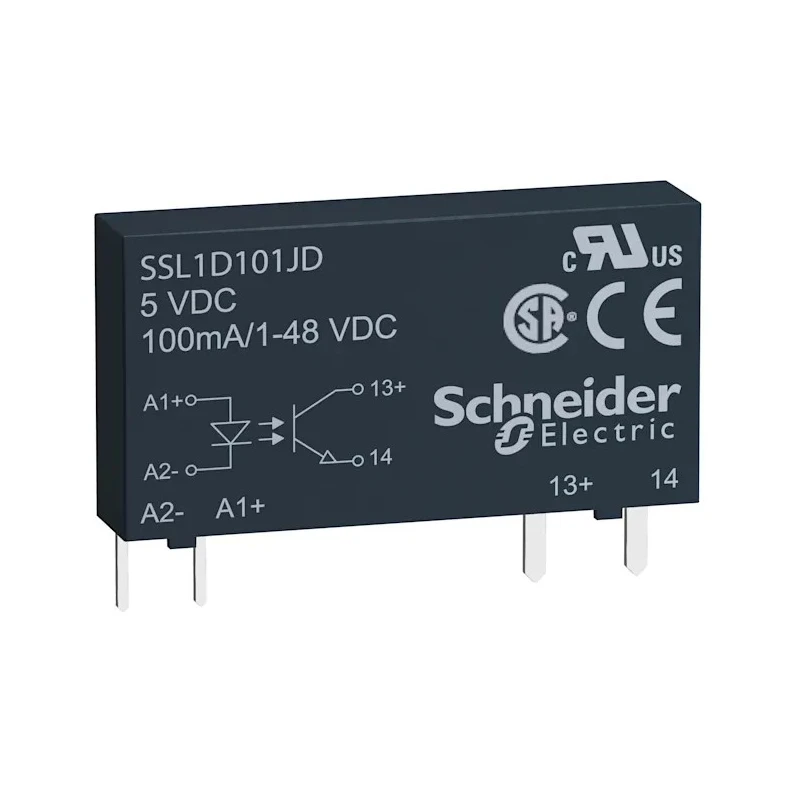

Schneider Electric Harmony Series Solid State Relay 0.1 A Load 48 V DC Load 12 V DC Control SSL1D101JD

Schneider Electric SSL1D101JD is a Harmony Series Solid State Relay with a maximum load current of 0.1 A and load voltage rating of 48 V DC, controlled via a 12 V DC input signal. This relay is specifically engineered for DC switching applications and is ideal where silent and maintenance-free operation is demanded.

The device utilizes semiconductor switching technology, eliminating mechanical contact wear and ensuring an unlimited number of switching cycles. Its flame-retardant body enhances safety in demanding industrial environments, and the small form factor (15 mm height, 28 mm length, 5 mm width) makes it suitable for PCB mounting applications.

The relay features a SPST contact configuration with transistor output, low capacitance (1.5 pF) to maintain signal integrity, and minimal off-state leakage current of 0.001 mA. It complies with CE, UL, and CSA approvals, reinforcing its reliability and safety standards compliance. Operating temperature ranges from -20°C to 80°C accommodate a wide working environment spectrum.

Applications for the SSL1D101JD include industrial automation systems, electrical engineering projects, power utilities control circuits, and food and beverage processing equipment where precise and reliable DC switching is crucial.

Being partly recyclable and optimized for end-of-life management, the relay supports sustainability objectives within industrial and commercial installations. This relay features a compact PCB terminal design for easy integration.

Operates with a control voltage range from 3 V to 12 V DC for flexible control. Flame-retardant body for enhanced safety during use and in fire events. Low off-state leakage current supports energy-efficient operation. Capacitance of 1.5 pF allows high-frequency switching without signal interference.

Certified to CE, UL, and CSA standards ensuring quality and safety compliance. Wide operating temperature range from -20°C to 80°C for diverse environments. Lightweight design at 4.1 grams suitable for PCB mounting. Infinite switching cycles possible due to solid-state construction.

Typical use cases include industrial automation, electrical engineering, power utilities, and food and beverage industries. Explore the full range of Solid State Relays on EnvMart for reliable and efficient control solutions from trusted brands.
