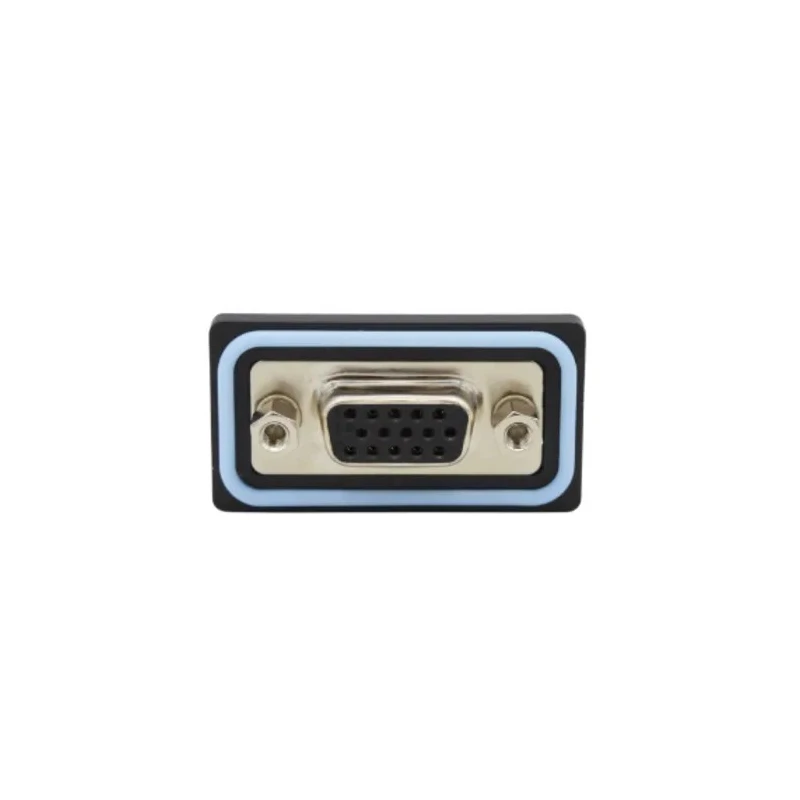

Norcomp HDF 15 Way Straight 2.29 mm Pitch PCB D-Sub Connector with 4 to 40 Screw Lock Female HDF-S15-203L011

Norcomp HDF-S15-203L011 is a high-density 15-pin female D-Sub Connector designed for PCB mounting applications. It features a straight orientation with a 2.29 mm pitch between contacts, making it suitable for compact and precise electronic assemblies. The connector’s housing is built from robust polybutylene terephthalate (PBT) with UL 94V-0 flame retardant rating to ensure electrical safety and component longevity in demanding conditions.

The connector includes gold-plated brass contacts to maximize electrical conductivity and corrosion resistance, supported by a nickel-plated steel shell that provides excellent mechanical strength. It employs a secure 4 to 40 screw lock mechanism to maintain stable connections, preventing accidental disconnections even in environments with vibrations or movement.

Rated for 3 amps current and 1000 volts, this connector handles a wide range of low-voltage electronic applications effectively. It is designed for use in industrial environments with operating temperature ranges from -25°C to 85°C, featuring a silicon O-ring to deliver an IP67 ingress protection rating, making it dust-tight and protected against water jets.

This connector is ideal for use in industrial controls, telecommunications equipment, instrumentation, and other electronic systems requiring reliable connector solutions with high density and secure mounting on PCBs. It offers excellent insulation resistance of 5 Gohms to minimize leakage and cross-talk between contacts.

This connector features 15 female contacts with gold-plated brass material for enhanced conductivity. It has a 2.29 mm pitch and supports a current rating of 3A and voltage of 1000V. The connector is straight orientation, suitable for PCB mounting with 4 to 40 screw lock hardware.

Constructed with polybutylene terephthalate housing and nickel-plated steel shell for durability. Designed for operating temperatures from -25°C to +85°C and includes a silicon O-ring for sealing. Offers IP67 rating for protection against dust and water ingress.

The insulation resistance is 5 Gohms, ensuring reliable electrical performance. Ideal for industrial, electronic assembly, telecommunications, and control system applications. Choose Norcomp connectors for durable and precise electronic connections in industrial and commercial applications. Discover more products in our Connectors category on EnvMart.
