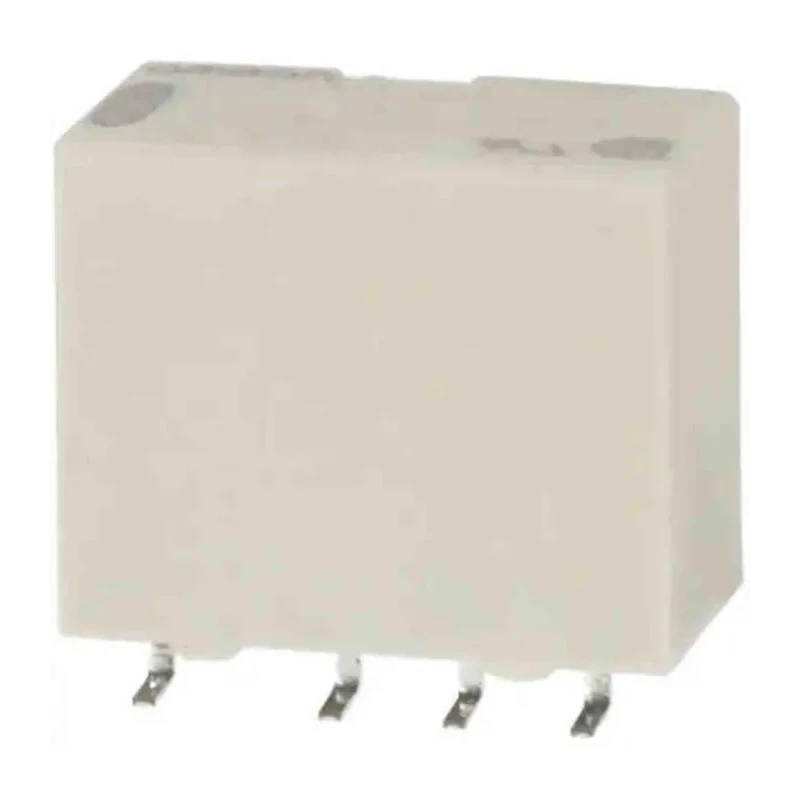

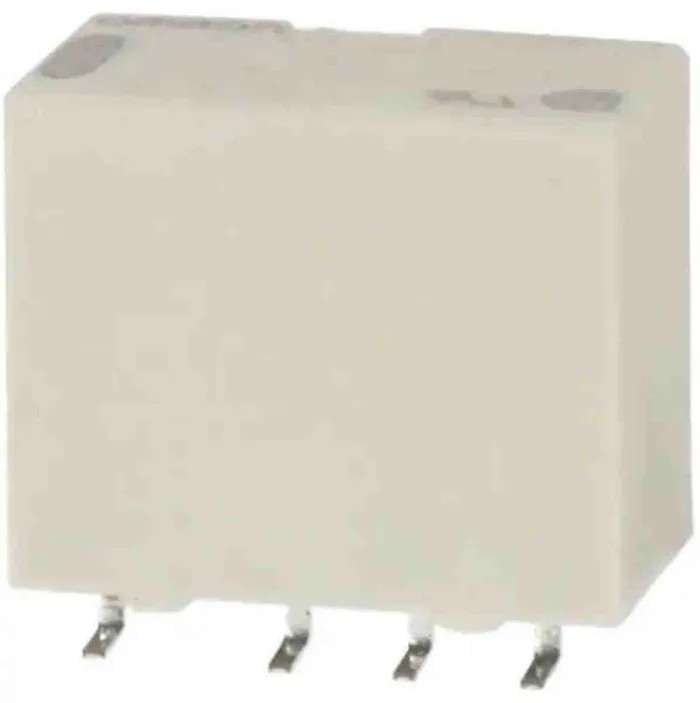

Omron Surface Signal Relay, 5V DC Coil, 1A Switching Current, DPDT Contact Configuration, Surface Mount G6J-2FL-Y-TR DC5

Free Delivery in India | Lowest Global Shipping Charges

Omron Surface Signal Relay, 5V DC Coil, 1A Switching Current, DPDT Contact Configuration, Surface Mount G6J-2FL-Y-TR DC5

Name: Omron Surface Signal Relay, 5V DC Coil, 1A Switching Current, DPDT Contact Configuration, Surface Mount G6J-2FL-Y-TR DC5
Brand: Omron
SKU: 422216
Price: 3.01 USD
Availability: InStock



Category Signal Relay Brand Omron Condition New

Specifications

Country of Origin	China
Brand	Omron
Height	9mm
Length	10.6mm
Model	G6J-2FL-Y-TR DC5
Width	5.7mm
Mount Type	Surface
Contact Material	Gold Plated
Series	G6S
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Minimum Operating Temperature	-40°C
Switching Current	1A
Terminal type	Surface Mount
Contact Resistance	100mΩ
Standards/Approvals	RoHS
Coil Resistance	173Ω
Coil Voltage	5V dc
Switching DC Voltage	110V dc
Switching AC Voltage	125V ac
Coil Power	140mW

Key Features

Surface mount type relay suitable for high-density mounting.
Operates within a temperature range of -40°C to 85°C.
Contact material is gold plated for enhanced conductivity and longevity.
Coil power consumption is low at 140mW, providing energy-efficient operation.
Dielectric strength of 1500 VAC and impulse withstand voltage of 2500 V ensures high reliability.
Contact resistance rated at 100mΩ guarantees minimal signal loss.
Coil resistance of 173Ω optimized for stable coil current.
Meets RoHS standards for environmental compliance.

Product Description

Omron G6J-2FL-Y-TR DC5 is a high-quality surface signal relay designed with a 5V DC coil and double-pole double-throw (DPDT) contact configuration. It supports a switching current of 1A and is engineered for surface mount applications, enabling compact designs in electronics and electrical circuits.

This relay operates reliably in harsh industrial environments with an operating temperature range from -40°C to 85°C. Its gold-plated contacts ensure excellent conductivity and corrosion resistance, enhancing signal integrity and durability. The coil power consumption is a modest 140mW, reflecting energy-efficient design suitable for automated and control systems.

Designed as part of the G6S series, the Omron relay features a dielectric strength of 1500 VAC and an impulse withstand voltage of 2500 V (2 x 10µs), which safeguards against voltage spikes and electrical noise. Its compact footprint with dimensions of 10.6mm length, 5.7mm width, and 9mm height makes it ideal for dense PCB layouts.

The contact resistance of 100mΩ and coil resistance of 173Ω contribute to stable and reliable switching performance. This relay complies with RoHS standards, meeting environmental safety requirements for electronics manufacturing.

Surface mount construction supports high-density electronic assemblies. Gold plated contacts for high reliability. Wide operating temperature range from -40°C to 85°C. Low coil power consumption of 140mW reduces energy usage.

High dielectric strength and impulse voltage protection. Compact size dimensions of 10.6mm x 5.7mm x 9mm. Reliable switching with 1A current rating and DPDT configuration. RoHS compliant for environmental safety.

This signal relay is suitable for industrial, automation, manufacturing, electrical control panel, and HVAC system applications where efficient switching and durable performance are required. The surface mounting design allows seamless integration into modern electronic devices and assemblies.
