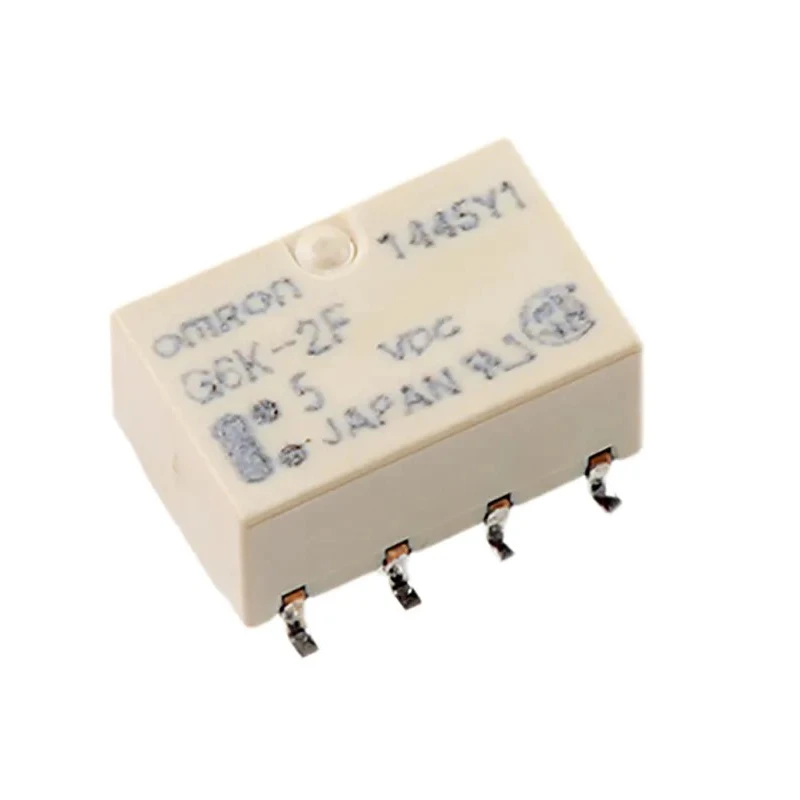

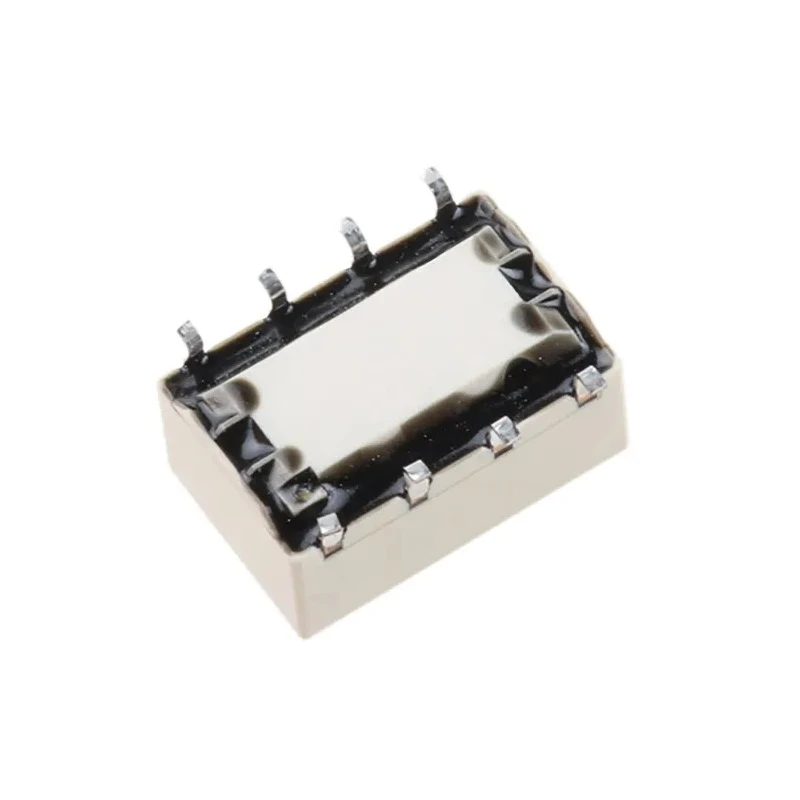

Omron Surface Signal Relay 5V DC Coil 1A DPDT Low Profile SMT G6K-2F 5DC
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 5.2mm |
| Length | 10mm |
| Model | G6K-2F 5DC |
| Width | 6.5mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | G6K |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Coil Resistance | 237Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 100mW |
Key Features
- Low profile subminiature surface mount relay measuring 5.2 x 6.5 x 10 mm.
- Fully sealed construction ensures durability and reliability.
- Operates with low coil power consumption of approximately 100 mW.
- Gold plated contacts for enhanced conductivity and corrosion resistance.
- Wide operating temperature range from -40°C to 70°C.
- Compliant with RoHS environmental standards and electrical approvals.
- Supports switching of 125 V AC and 60 V DC voltages.
- Unique terminal structure ensures excellent soldering quality.
Product Description
Omron G6K-2F 5DC Surface Signal Relay is a highly reliable subminiature SMT relay designed for low power consumption and compact mounting in industrial and electronic applications.
This relay features a 5V DC coil voltage and supports a switching current of 1A with a DPDT (Double Pole Double Throw) contact configuration. Its compact dimensions of 5.2 mm height, 6.5 mm width, and 10 mm length make it ideal for surface mount technology applications where space saving is critical.
With a fully sealed construction, the relay ensures protection against environmental factors, increasing durability and operational stability. The gold plated contacts provide excellent conductivity and long-term corrosion resistance, suitable for signals requiring high reliability.
The relay operates within a wide temperature range from -40°C to 70°C, enabling use in demanding industrial, automation, and electrical control environments. It supports switching voltages up to 125V AC and 60V DC and provides a switching power of 37.5 VA.
Notably, the G6K-2F types conform to FCC Part 68 standards for transient voltage (1500 V for 10x160 μs), while variants like G6K-2F-Y conform to Bellcore specifications (2500 V for 2x10 μs), ensuring resilience to voltage surges.
Its unique terminal structure with high infrared irradiation efficiency aids in excellent soldering, improving manufacturing reliability. The coil resistance is 237 Ω with coil power of just 100 mW, making it energy efficient.
Low profile subminiature SMT relay with fully sealed construction. Low coil power consumption and compact size. Gold plated contacts providing reliable signal switching. Wide temperature operation from -40°C to 70°C. Compliant with RoHS and key electrical standards.
Suitable for industrial, automation, electrical control, and instrumentation use. Surface mount type with unique terminal structure for effective soldering.
This Omron signal relay is made in Japan, ensuring quality manufacturing standards. It is widely applicable in electronic circuitry where low power, compact, and reliable relay components are essential for switching and signal conditioning.
Browse more from the Signal Relay category to explore advanced relays and accessories designed for diverse industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 5V DC.
It supports a maximum switching current of 1A.

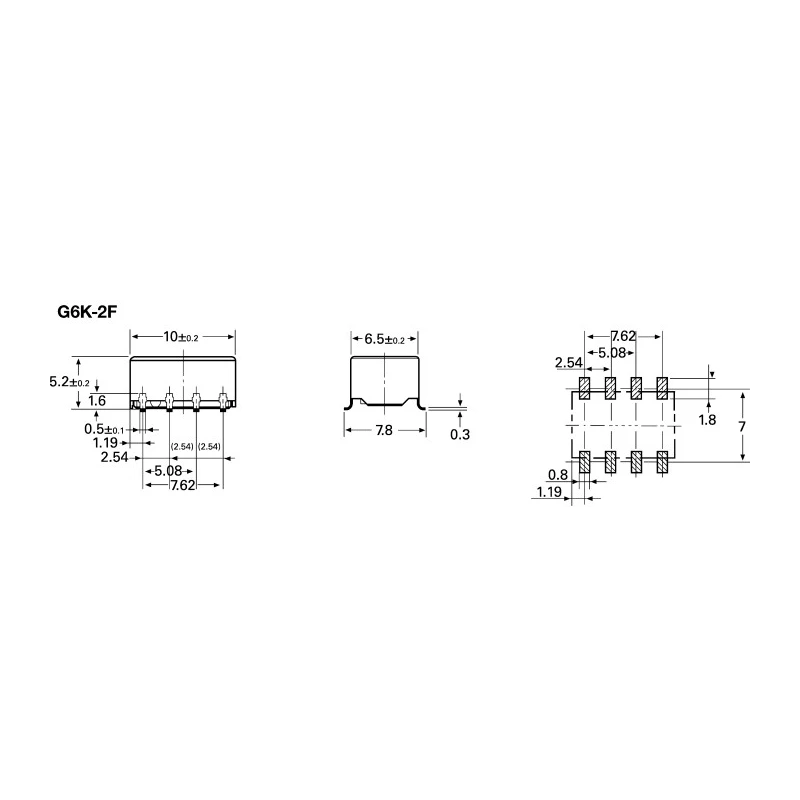

This relay measures 5.2 mm in height, 6.5 mm in width, and 10 mm in length.
The relay features a DPDT (Double Pole Double Throw) contact configuration.
It operates within a temperature range of -40°C to 70°C.
This relay is designed for surface mounting.
The coil resistance is 237 Ω.
It supports switching voltages of up to 125V AC and 60V DC.
The contacts are made of gold plated material, enhancing conductivity and corrosion resistance.
Yes, it is compliant with RoHS environmental standards.
The coil power consumption is approximately 100 mW.
This relay is manufactured in Japan.
