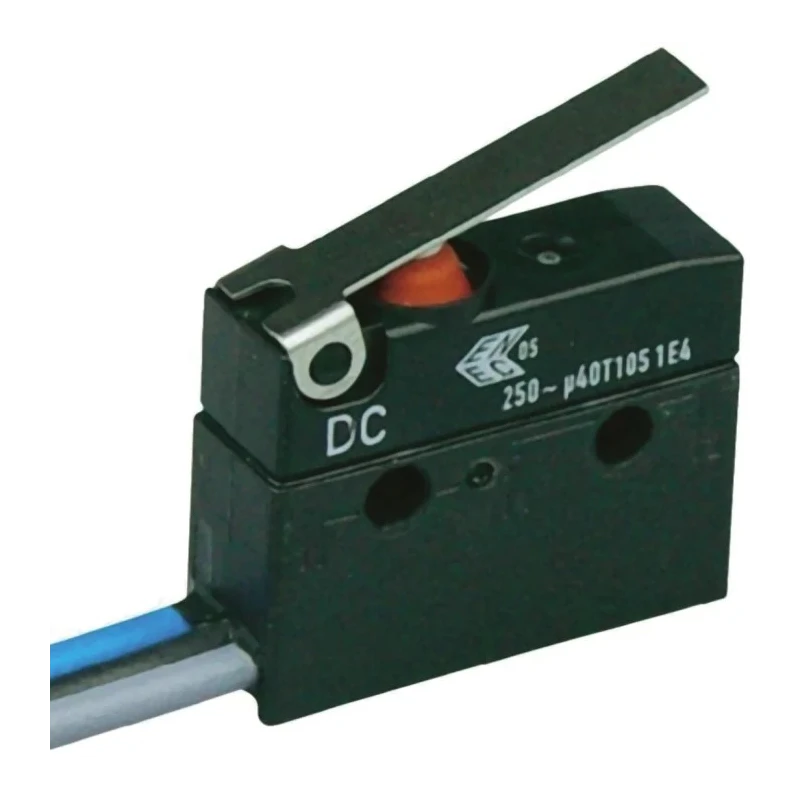

ZF Lever Micro Switch with Lead Terminal 10A 250 V AC SPCO IP67 DC2C-C3LC

ZF DC2C-C3LC lever micro switch with lead terminal delivers reliable switching performance rated at 10A current with 250 V AC voltage capability. It incorporates a sealed lever actuator designed to IP67 standards, providing protection against dust and water ingress, suitable for industrial and commercial electrical systems requiring durable and compact micro switches.

The housing is made from robust polyethylene terephthalate and polybutylene terephthalate plastics, providing UL 94V-0 flame retardancy and allowing operation in temperatures ranging from -40°C to 120°C. The switch uses SPCO contact configuration, making it ideal for single-pole changeover switching tasks.

This micro switch ensures high reliability with a mechanical life exceeding one million operations, supported by precise actuation with a force of 340 cN. Its compact form factor, measuring 11.65 mm in height, 20 mm in width, and 6.5 mm in depth, enables installation in space-constrained electrical setups.

The device meets multiple international standards including UL, RoHS, ENEC, and cRUus certifications, assuring compliance and safety in automated control systems, HVAC equipment, machinery, and other industrial automation applications.

Typical use cases include limit switching, safety interlocks, and general electrical control in industrial, laboratory, manufacturing, and commercial environments. The switch uses SPCO contact configuration suitable for various electrical applications.

Constructed with durable polyethylene terephthalate and polybutylene terephthalate housing materials. Mechanical life expectancy of 1,000,000 operations ensures long-term reliability. Operating temperature range from -40°C up to 120°C supports harsh environments.

Compact dimensions: height 11.65 mm, width 20 mm, depth 6.5 mm for easy integration. Complies with UL, RoHS, ENEC, and cRUus standards for safety and quality. Operating force is 340 cN for precise actuation sensitivity. Explore the range of Micro Switches at EnvMart for dependable industrial electrical components from trusted brands like ZF.
