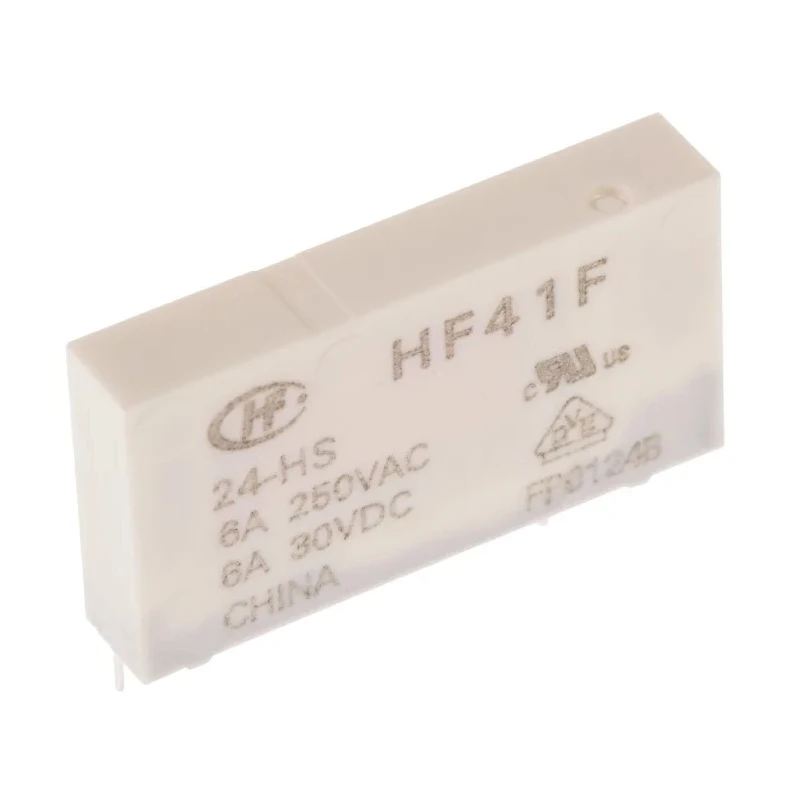

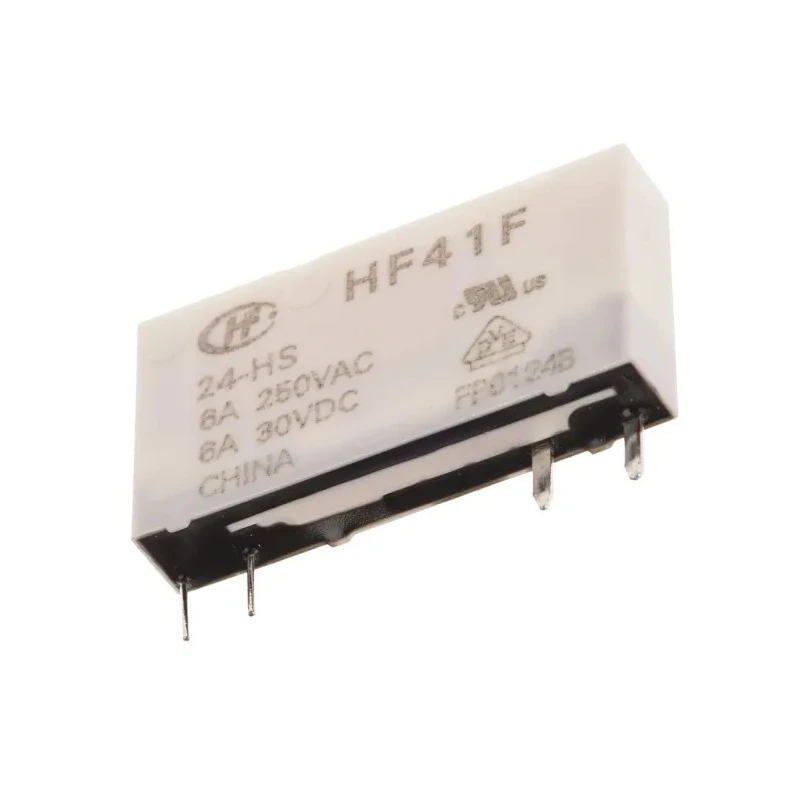

RS PRO PCB Power Relay, 24V dc Coil Voltage, 6A Switching Current, SPST Contact Configuration, Through Hole Terminal 8004552P

RS PRO 8004552P PCB Power Relay is engineered for efficient and reliable electrical control in industrial and automation configurations. It features a 24V dc coil voltage and supports a switching current of 6A with a single-pole single-throw (SPST) contact configuration, ideal for PCB mounting applications requiring precise on/off switching functionality.

This relay includes a through-hole terminal type, facilitating secure electrical connections on printed circuit boards. Its slim design measures 28mm in length, 13mm in width, and 15mm in height, making it suitable for compact installations.

The coil power is a low 170mW, supporting energy-efficient operation while maintaining high sensitivity. The silver alloy contact material ensures excellent conductivity and durability, supporting switching voltages up to 125V ac and 125V dc with a switching power rating of 2.5kVA.

Designed to withstand harsh environments, this relay operates reliably across a wide temperature range from -40°C to 85°C, with a high dielectric strength of 4kV between coil and contacts. It also features surge voltage resistance up to 6kV, protecting the relay coil and contacts from transient electrical surges.

This product is made in China and compliant with industry standards including UL and CQC certifications, confirming its quality and safety credentials.

Typical applications include industrial automation, control panels, HVAC systems, and power management in electronic devices. Its high performance, compact size, and robustness make it suitable for demanding environments in manufacturing, laboratory instrumentation, and commercial electrical assemblies.

Designed for PCB mounting with a through hole terminal type. Supports switching AC and DC voltages up to 125V for versatile applications. Compact slim relay with dimensions of 28mm length, 13mm width, and 15mm height. Coil power consumption is low at 170mW, enhancing energy efficiency.

Contact material is made from durable silver alloy for excellent conductivity. Operates reliably within a temperature range from -40°C to 85°C. High dielectric strength with 4kV isolation between coil and contacts. Surge voltage tolerance up to 6kV ensures protection against transient voltages.

Explore the extensive RS PRO range of electrical components and relays on EnvMart for quality and reliability in industrial and commercial applications.
