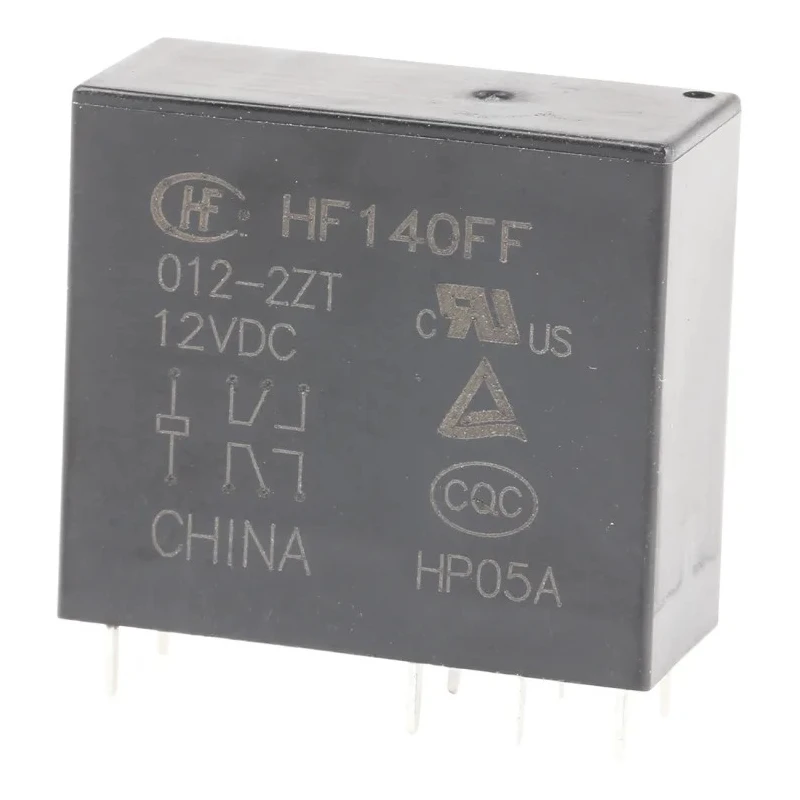

RS PRO PCB Power Relay 12V DC Coil 10A Switching Current DPDT 800-4489

RS PRO 800-4489 is a miniature intermediate PCB power relay designed for industrial and commercial electrical applications. It features a 12V dc coil voltage and a double pole double throw (DPDT) contact configuration, enabling versatile switching capabilities up to 10A current.

This relay mounts directly onto printed circuit boards using solder terminals, ensuring firm installation and efficient integration into various automation, control, and signaling systems. The compact dimensions of 29mm length, 26.3mm height, and 13mm width support space-saving layouts.

The coil has a resistance of 275 ohms and consumes 530mW of power. It operates reliably across a wide temperature range from -40°C to 85°C, making it suitable for harsh environments. The silver alloy contacts provide reliable conductivity and durability by minimizing contact resistance.

Switching ratings include up to 30V DC and 250V AC at a maximum switching power of 2.5 kVA, supporting both AC and DC load switching. The relay exhibits excellent electrical isolation with a dielectric strength of 5 kV between coil and contacts, and it can withstand surge voltages up to 10 kV, ensuring robust performance in electrically noisy environments.

Compliant with UR, CQC, UL, and TUV certifications, this relay meets international safety and performance standards. Its 2 Form C (DPDT) contacts with 5 mm pinning configuration provide flexible connection options for diverse circuitry.

Compact design with a 29mm length, 26.3mm height, and 13mm width. Coil resistance of 275Ω and power consumption of 530mW for reliable operation. Suitable for PCB mounting with solder terminal type for secure connections.

Operating temperature range from -40°C to 85°C ensures durability in various environments. Contact material made of silver alloy for optimal conductivity and longevity. Switching voltages: 30V DC and 250V AC with a switching power of 2.5 kVA.

High dielectric strength with 5 kV between coil and contacts and surge voltage up to 10 kV. UL, TUV, and CQC approvals for industrial and commercial applications. Miniature intermediate power relay with 2 Form C (DPDT) contacts and 5 mm pinning.

This RS PRO power relay is ideal for electrical, automation, manufacturing, and industrial control applications where reliable switching under varying voltages and currents is required. Its robust electrical and mechanical specifications ensure dependable operation within control panels and PCB assemblies.
