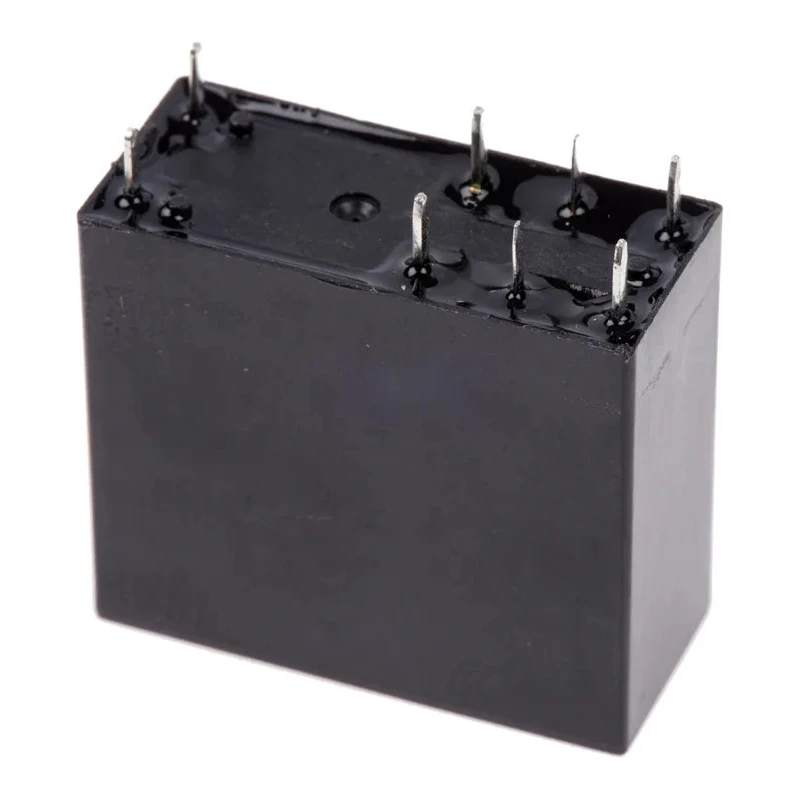

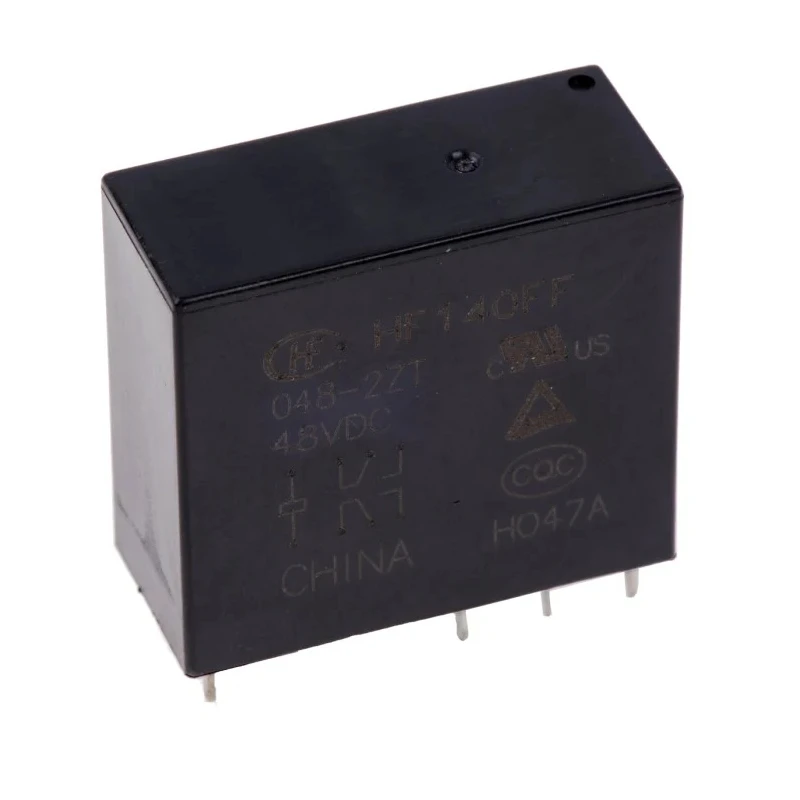

RS PRO Power Relay PCB Mount DPDT 48V DC Coil 10A Switching Current 250V AC 8004491P
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 26.3mm |
| Length | 29mm |
| Model | 8004491P |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Contacts | 2 Form C, DPDT |
| Standards/Approvals | CQC, UR |
| Coil Resistance | 4.2kΩ |
| Coil Voltage | 48V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 530mW |
Key Features

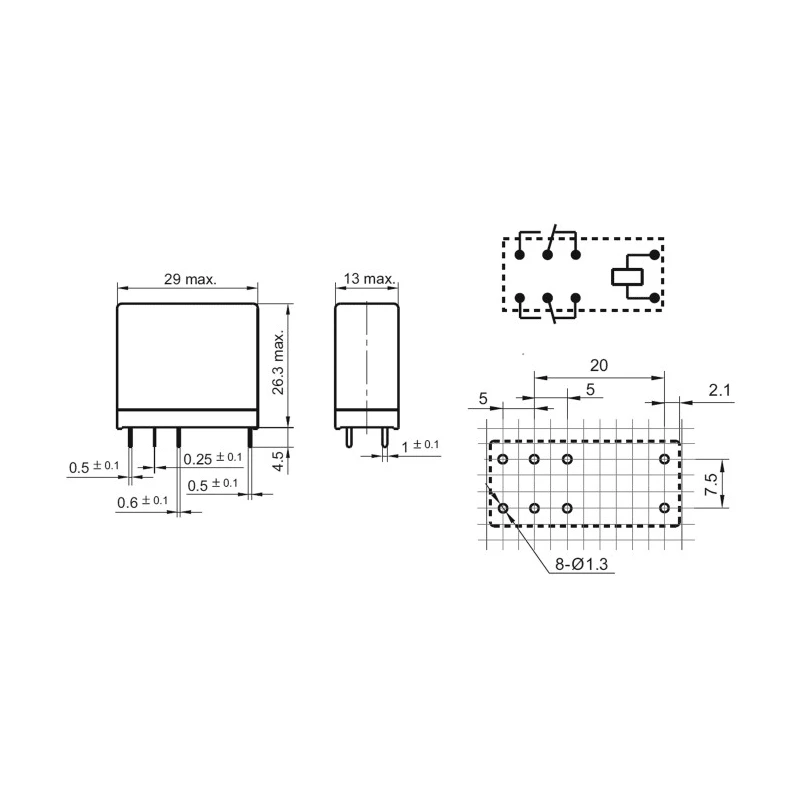

- This relay features a compact 26.3mm height, 29mm length, and 13mm width for space-saving PCB integration.
- The coil resistance of 4.2kΩ ensures efficient operation with a coil power of 530mW.
- Rated switching voltages of 250V AC and 30V DC enable versatile application in AC and DC circuits.
- Contact material is silver alloy providing reliable conductivity with 2 Form C (DPDT) configuration.
- Operational temperature range from -40°C to 85°C ensures durability in varied environments.
- Surge voltage tolerance up to 10kV and dielectric strength of 5kV between coil and contacts enhance robustness.
- Terminals are solder type ensuring secure PCB mounting and series designation RS PRO guarantees quality.
Product Description
RS PRO 8004491P is a miniature intermediate power relay designed for PCB mounting, featuring a 48V DC coil and a DPDT contact configuration suitable for switching currents of 10A. Its compact form factor with dimensions of 26.3mm height, 29mm length, and 13mm width makes it ideal for integration into electronic assemblies where space is constrained.
The relay coil resistance is 4.2kΩ, consuming 530mW of power, providing efficient energy use. It supports switching voltages up to 250V AC and 30V DC, allowing secure operation in various electrical applications.
Contact points made from silver alloy offer excellent conductivity and durability. This relay is rated for a temperature range from -40°C to 85°C, enabling reliable function under diverse industrial conditions.
Designed with 5mm pinning, it provides a surge voltage capacity of up to 10kV and a dielectric strength of 5kV between coil and contacts, ensuring safety and compliance with international standards including UL, TUV, CQC, and UR certifications.
The solder terminal type facilitates easy and secure PCB mounting, supporting automation and manufacturing efficiency in electrical, industrial automation, and HVAC systems. Compact PCB mount power relay with DPDT contact arrangement.
48V DC coil voltage with 4.2kΩ coil resistance. 10A switching current capacity for reliable power handling. Silver alloy contacts enable longevity and low resistance switching. Wide operating temperature range from -40°C to 85°C for harsh conditions.
High surge voltage resistance up to 10kV for circuit protection. Approved by UL, TUV, CQC, and UR for international quality standards. Ideal for use in industrial control panels, automation equipment, manufacturing machinery, HVAC controls, and other applications requiring robust signal switching.
Explore the RS PRO range of Power Relays and electrical components available at EnvMart to enhance your system reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 10A, making it suitable for various electrical applications.
The relay measures 26.3mm in height, 29mm in length, and 13mm in width, allowing for compact PCB integration.
It operates with a coil voltage of 48V DC and has a coil resistance of 4.2kΩ, consuming 530mW of power.
The operational temperature range is from -40°C to 85°C, enabling reliable function in diverse environments.
This relay features a DPDT (Double Pole Double Throw) contact configuration with 2 Form C contacts.
It has a dielectric strength of 5kV between the coil and contacts and can withstand surge voltages up to 10kV.
The contacts are made from silver alloy, providing reliable conductivity and durability.
It features solder type terminals, ensuring secure PCB mounting for efficient assembly.
This model is approved by CQC and UR, ensuring compliance with international quality standards.
It is ideal for use in industrial control panels, automation equipment, manufacturing machinery, and HVAC controls.
Its compact dimensions and solder terminal type make it easy to integrate into electronic assemblies where space is constrained.
The coil power consumption is 530mW, ensuring efficient operation during use.
