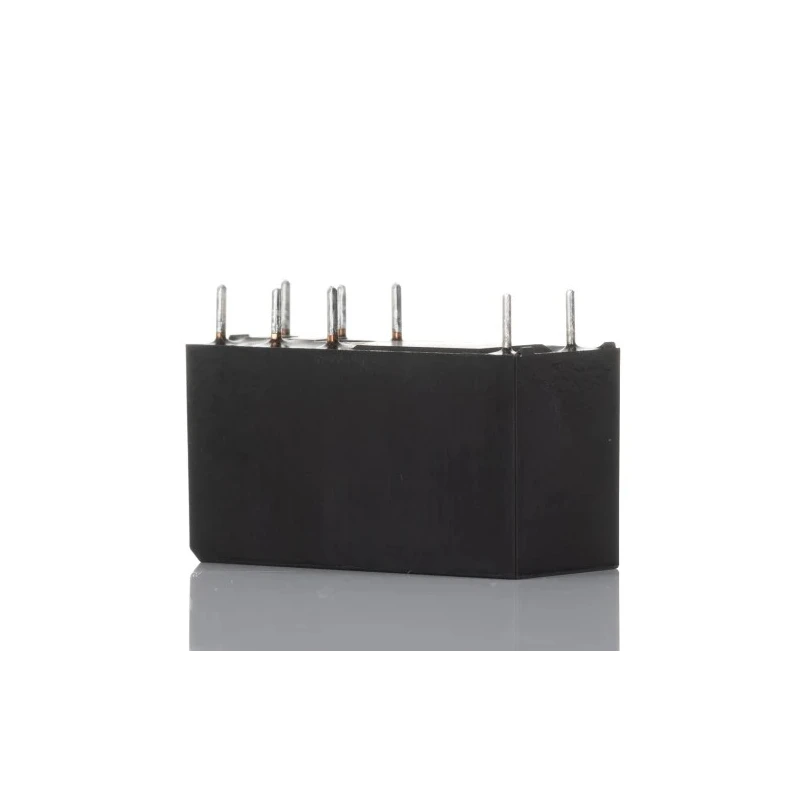

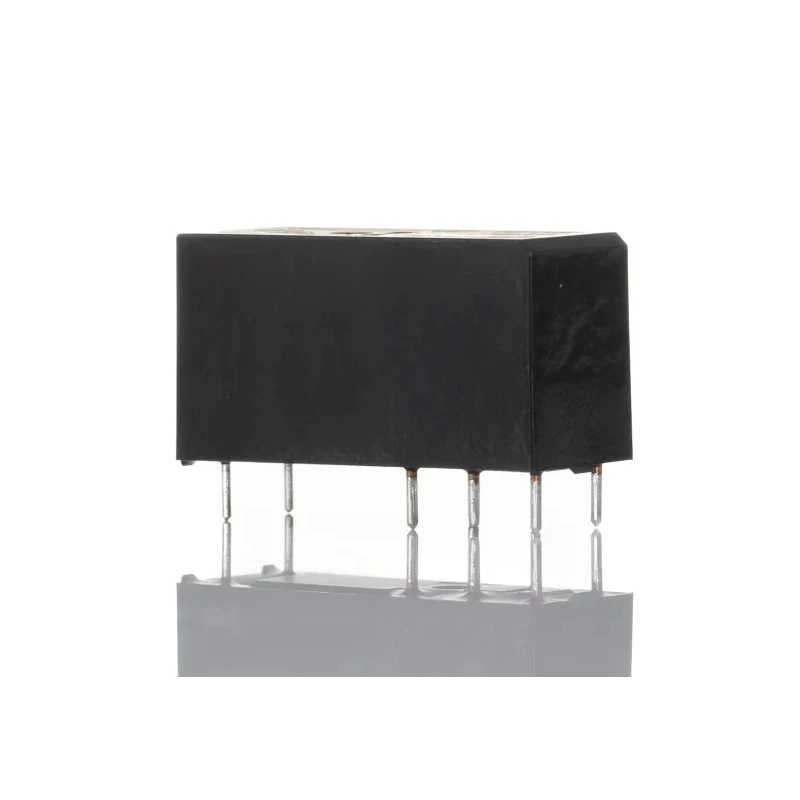

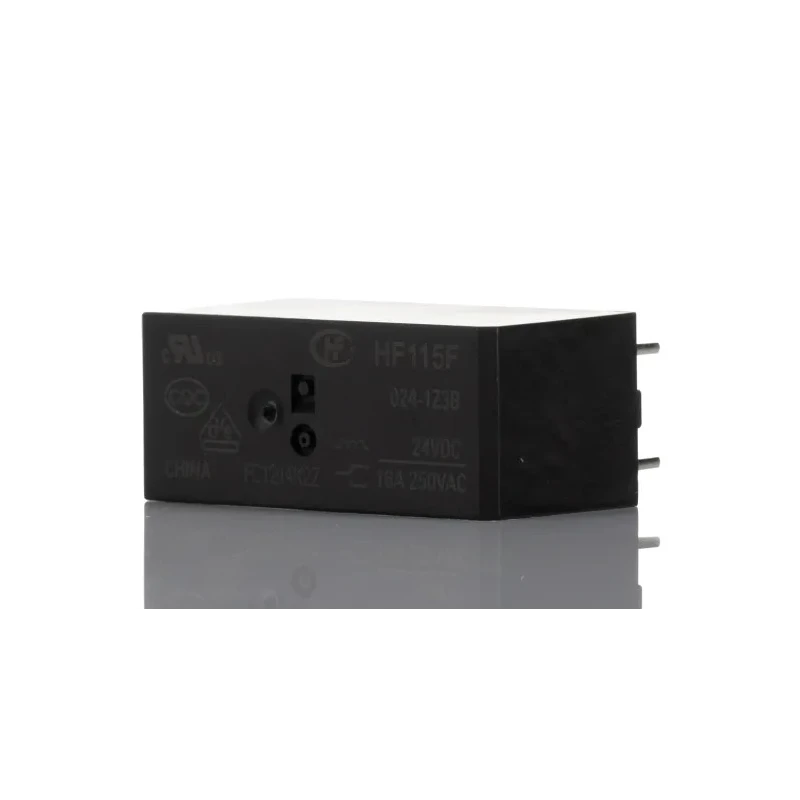

RS PRO PCB Power Relay 24V dc Coil, 16A Switching Current, SPDT 8004445P
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 15.7mm |
| Length | 29mm |
| Model | 8004445P |
| Width | 15.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Contact Resistance | 100mΩ |
| Standards/Approvals | UR, CQC |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 440V ac |
| Coil Power | 400mW |
| Standards and Approvals | IEC 60335-1, UL, CUL, CQC, VDE, RoHS compliant |
Key Features

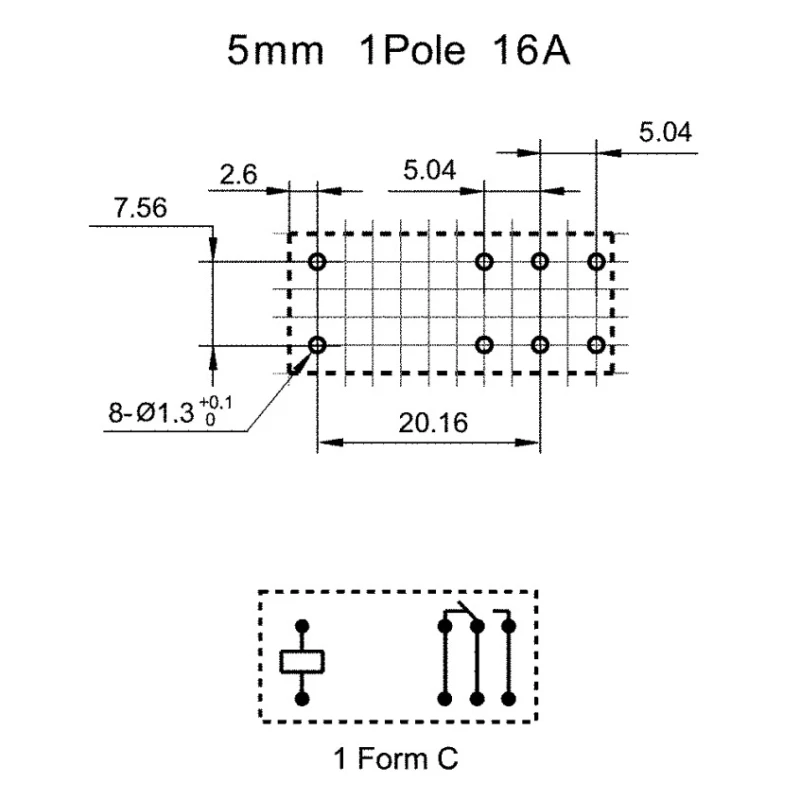

- Features a compact size of 29 x 15.7 x 15.7 mm ideal for space-saving PCB applications.
- Maintains high inrush current capability to protect against damage during operation.
- Designed with silver alloy contacts for durable and low resistance switching.
- Supports switching voltages up to 300V dc and 440V ac for versatile use.
- Constructed with sealed and flux-proof design providing excellent moisture resistance.
- Operates reliably in temperature range from -40°C to 85°C for industrial environments.
- Complies with international standards including IEC 60335-1, UL, CUL, CQC, VDE and RoHS.
Product Description
RS PRO 8004445P PCB Power Relay is a precision-engineered power relay featuring a Single Pole Double Throw (SPDT) contact configuration and 24V dc coil voltage. It is designed for easy printed circuit board (PCB) mounting, making it perfect for industrial electronics, automation systems, and control panels where space is limited.
This relay exhibits a high inrush current capability with a TV-5 80A rating at 125V ac, ensuring durability under conditions involving sudden current surges. Its compact dimensions of 29 mm length, 15.7 mm width, and 15.7 mm height contribute to its suitability for miniaturized designs.
The contacts are made from silver alloy material, providing excellent conductivity and a low contact resistance of 100mΩ that guarantees efficient switching performance. The relay supports switching of direct current up to 300V dc and alternating current up to 440V ac with a maximum switching current of 16A and switching power of 3kVA, covering a wide range of applications.
Encased in a plastic sealed, flux proof construction, the relay offers superior resistance to moisture and environmental stress, enhancing reliability in harsh conditions. Its operating temperature range extends from -40°C minimum to 85°C maximum, ensuring stable operation in diverse industrial settings.
Certified by multiple recognized standards such as UL, CUL, CQC, VDE, and RoHS, this relay meets global compliance requirements, making it a trusted choice for manufacturers and engineers.
Compact and low-profile PCB power relay with SPDT contact configuration. High inrush current handling capability for durability. Silver alloy contacts with low contact resistance for efficient switching. Wide operating temperature range from -40°C to 85°C.
Plastic sealed and flux proofed for excellent moisture resistance. Switching capacities up to 16A current and 3kVA power. Suitable for industrial, automation, HVAC, and manufacturing applications.
This RS PRO Power Relay is an ideal component for designers looking to integrate a reliable, high-performance relay into their printed circuit board assembly. It enhances switching accuracy and sustainability in demanding electrical environments. Explore more RS PRO relays and electrical components to optimize your projects and production lines at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a maximum switching current capacity of 16A.
This model operates with a coil voltage of 24V dc.
The relay measures 29 mm in length, 15.7 mm in width, and 15.7 mm in height.
It features a Single Pole Double Throw (SPDT) contact configuration.
It supports switching voltages up to 300V dc and 440V ac.
The contacts are made from silver alloy, which provides excellent conductivity.
The contact resistance is rated at 100mΩ.
It operates reliably within a temperature range of -40°C to 85°C.
It is constructed with a sealed and flux-proof design, providing excellent moisture resistance.
This relay complies with IEC 60335-1, UL, CUL, CQC, VDE, and RoHS standards.
The coil power rating is 400mW.
It is designed for PCB mounting.
