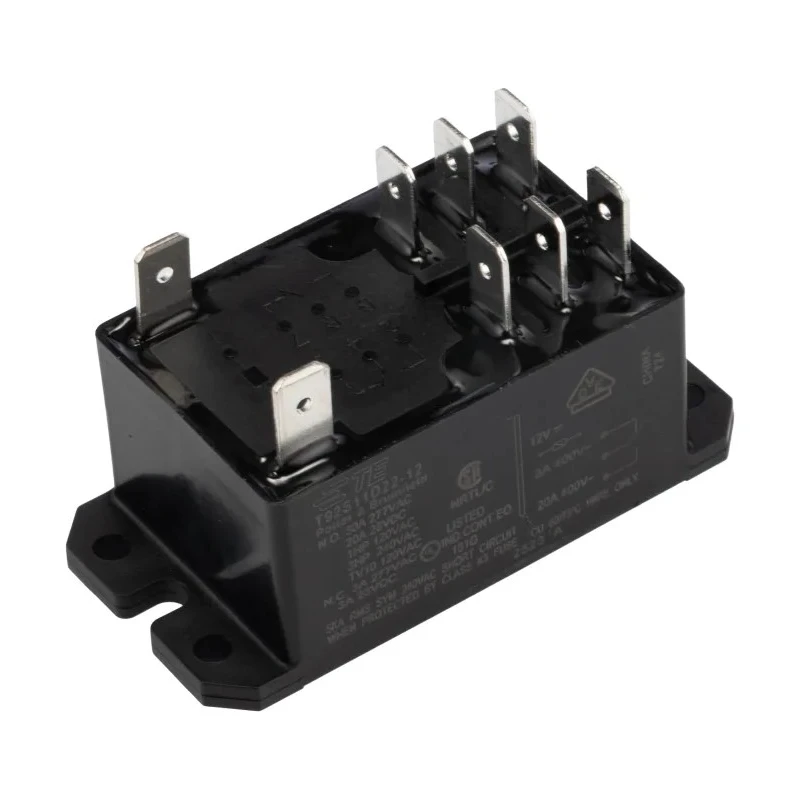

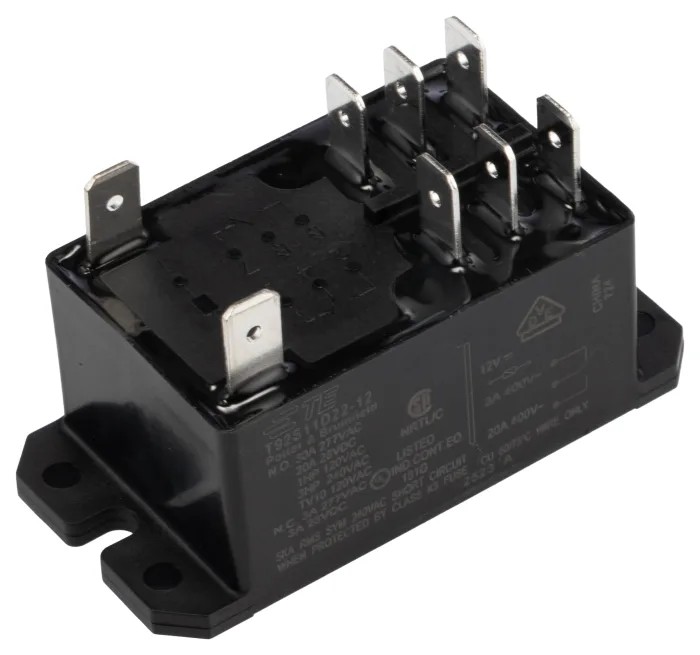

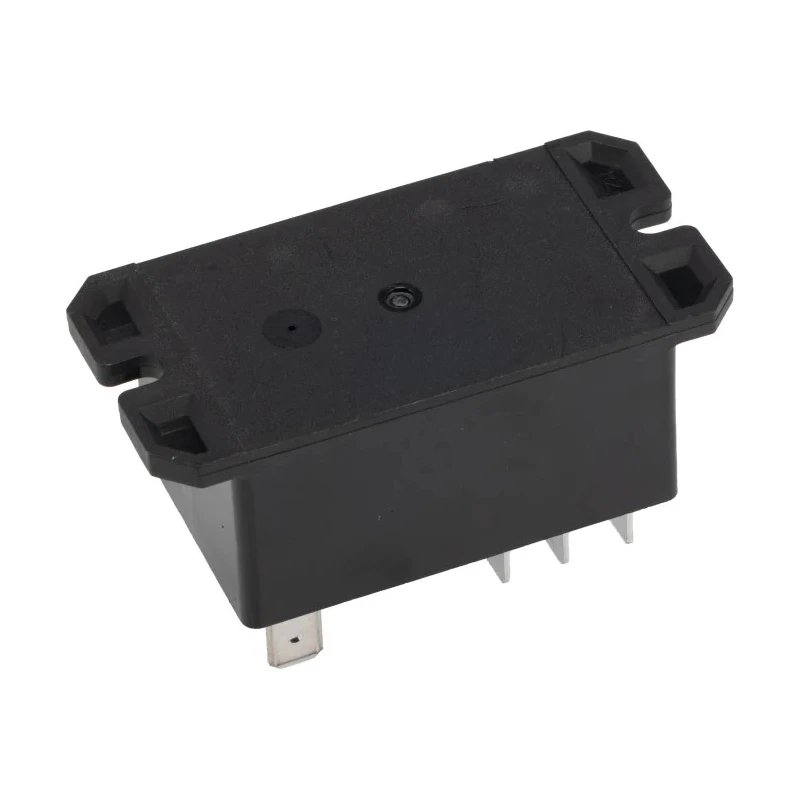

TE Connectivity Panel Power Relay 12V dc Coil 30A Switching Current DPDT T92S11D22-12 9-1393211-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -40°C to +65°C |
| Height | 30.7mm |
| Length | 52.3mm |
| Model | T92S11D22-12 9-1393211-3 |
| Width | 34.5mm |
| Mount Type | Panel |
| Contact Material | Silver Alloy |
| Series | T92 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 30A |
| Terminal type | Quick Connect |
| Standards/Approvals | CSA, UL, UR |
| Coil Resistance | 86Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 600V ac |
| Coil Power | 1.7W |
| Switching Power | 1.7W |
Key Features
- Designed for panel mounting with a flange mount style.
- Quick connect terminals enable easy installation and removal.
- Operates reliably between minimum -45°C and maximum 85°C ambient temperatures.
- Silver alloy contact material ensures durability and optimal conductivity.
- Certified by UL, CSA, and UR standards for quality and safety compliance.
- Rated for switching AC voltage up to 600V ac with a switching power of 1.7W.
- Meets strict electrical spacing requirements as per UL 873 and UL 508 standards.
- Suitable for controlling compressor loads up to 3.5 tons and 25.3 FLA.
Product Description
TE Connectivity T92S11D22-12 9-1393211-3 panel power relay offers robust electrical performance with a 12V dc coil and 30A switching current, configured as DPDT for versatile electrical circuits. This flange mount relay is engineered to meet demanding industrial standards and provides excellent control for various electrical applications including compressors and HVAC systems.
The relay supports operation from -45°C to 85°C, ensuring reliability in diverse environments. Silver alloy contacts provide enhanced conductivity and longevity. Quick connect terminals facilitate effortless wiring while the compact size (52.3 mm length, 34.5 mm width, 30.7 mm height) makes it suitable for panel installation.
Certified to UL 873 and UL 508, the relay offers safe switching up to 600V ac and meets CSA, UL, and UR approvals. It also complies with VDE standards for electrical clearances and has a dielectric strength of 4kV between coil and contacts. The relay is designed to handle compressor loads up to 3.5 tons, making it suitable for HVAC, industrial control, and manufacturing applications.
Key features include the rated coil resistance of 86Ω that supports the coil power consumption of 1.7W. The relay fulfills high standards of insulation and mechanical robustness, making it reliable for industrial, HVAC, water treatment, and other electrical control systems.
Designed for panel mounting with flange style and quick connect terminals. Wide operating temperature range from -45°C to 85°C. High switching current capacity of 30A with DPDT contact configuration. Meets certifications including UL, CSA, and UR for safety compliance.
Silver alloy contacts provide excellent conductivity and durability. Compact dimensions for easy panel integration. Suitable for controlling compressor loads up to 3.5 tons and 25.3 FLA. Complies with stringent VDE electrical spacing and dielectric strength standards.
Reliable for various industrial, HVAC, water treatment, and commercial applications. Explore more Power Relays and electrical components at EnvMart to enhance your industrial and commercial electrical systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 30A.
The coil voltage for this relay is 12V dc.
The relay has dimensions of 52.3 mm in length, 34.5 mm in width, and 30.7 mm in height.
It operates reliably between -45°C and 85°C ambient temperatures.
This relay features a DPDT (Double Pole Double Throw) contact configuration.
The relay is rated for switching AC voltage up to 600V ac.
It is equipped with quick connect terminals for easy installation and removal.
This model is certified by UL, CSA, and UR standards for quality and safety compliance.
The coil resistance is rated at 86Ω, supporting a coil power consumption of 1.7W.
It is suitable for controlling compressor loads up to 3.5 tons and 25.3 FLA, making it ideal for HVAC and industrial control applications.
The contacts are made of silver alloy, ensuring durability and optimal conductivity.
It meets strict electrical spacing requirements as per UL 873 and UL 508 standards, ensuring safety in operation.
