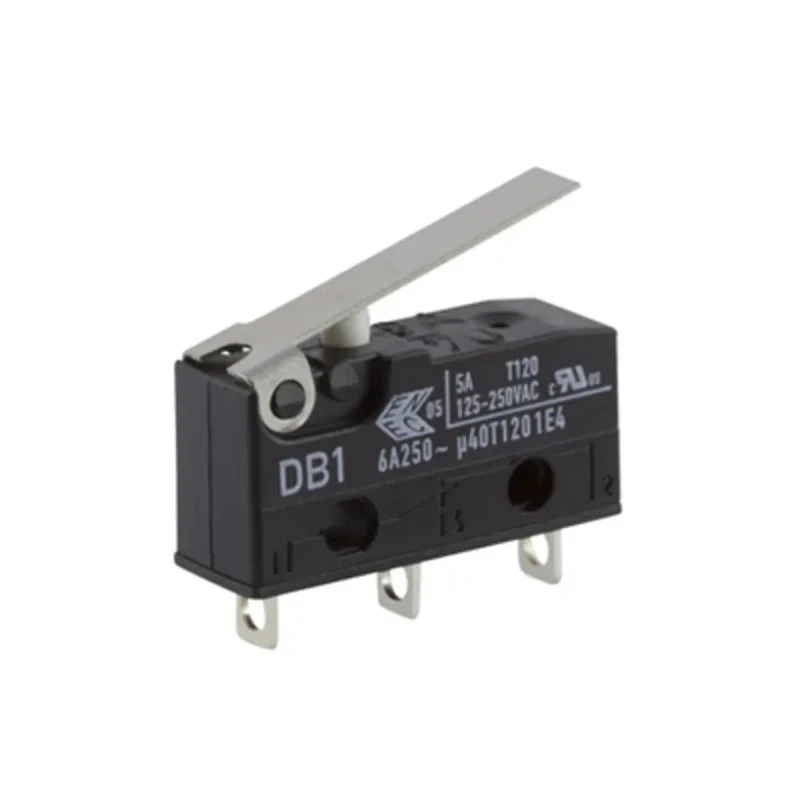

ZF Short Lever Micro Switch, Solder Terminal, 6A, 250 V AC, SPDT, IP50 DB1C-A1LB
Specifications
| Country of Origin | India |
|---|---|
| Brand | ZF |
| Model | DB1C-A1LB |
| IP Rating | IP50 |
| Housing Material | Polyamide, Polyethylene Terephthalate |
| Series | DB1 |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPDT |
| Actuator Type | Short Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Contact Current | 6A |
| Operating Force | 0.59N |
| Mechanical Life | 15000000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | DB Subminiature |
| ZF Short Lever Micro Switch, Solder Terminal, 6A, 250 V ac, SPDT, IP6K7Brand | ZF |
| MIN. LEVER MICROSWITCHBrand | NEUTRAL |
| Honeywell Short Straight Lever Microswitch, Solder Terminal, 5 A, SPDTBrand | Honeywell |
Key Features
- This microswitch has a short straight lever actuator designed for precise actuation.
- It supports a switch contact current of 6 amperes suitable for moderate load applications.
- The housing materials include polyamide and polyethylene terephthalate ensuring durability.
- It operates reliably within temperature ranges from -40°C to 120°C.
- The mechanical life exceeds 15 million operations ensuring long-term reliability.
- The device meets RoHS compliance and has multiple international certifications.
- Its IP50 rated enclosure offers protection against dust ingress but is not waterproof.
- The contact configuration is SPDT, allowing single-pole double-throw switching.
Product Description
The ZF DB1C-A1LB is a high-quality miniature micro switch featuring a short lever actuator and solder terminal connections. Rated for a switch contact current of 6 A at 250 V AC, this micro switch integrates a reliable SPDT contact configuration ideal for a range of electrical and automation applications.
Constructed with robust housing materials including polyamide and polyethylene terephthalate, the switch provides durability under industrial operating conditions. It operates effectively within a wide temperature range from -40°C up to 120°C, making it suitable for both cold and hot environments.
The micro switch’s mechanical life exceeds 15 million actuations, highlighting its longevity for continuous use. Its IP50 protection rating assures resistance against dust ingress, although it does not provide liquid ingress protection.
Certified for RoHS and multiple international standards, this component is suitable for industrial, electrical, automation, HVAC, and manufacturing systems requiring reliable and precise switching functions. The operating force of 0.59 N allows for sensitive and repeatable switch actuation.
This microswitch features a short straight lever actuator ensuring precise activation. It supports up to 6A current at 250V AC, fitting medium-power switching roles. Durable housing made from polyamide and PET ensures long service life.
Wide operating temperature range from -40°C to 120°C suits harsh environments. Mechanical lifespan surpasses 15 million operations for extended reliability. IP50 rating provides protection against dust particles ingress.
Single pole double throw (SPDT) contact configuration for versatile switching. Low operating force of 0.59 Newtons permits sensitive actuation.
Ideal for industrial automation, control systems, HVAC, manufacturing lines, and various electrical applications, the ZF DB1C-A1LB micro switch delivers dependable performance and precision actuation. For engineers and technicians seeking quality microswitches, this product is a trusted choice.
Explore more Micro Switch products and component brands on EnvMart to find the best fit for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switch contact current for this model is 6 amperes.
It operates effectively within a temperature range from -40°C to 120°C.
This micro switch features a single-pole double-throw (SPDT) contact configuration.
The housing is constructed from polyamide and polyethylene terephthalate.
The mechanical life of this micro switch exceeds 15 million operations.
It has an IP50 rating, providing protection against dust ingress.
The operating force required for actuation is 0.59 Newtons.
This model uses solder terminal connections.
Yes, it meets RoHS compliance and multiple international standards.
It is suitable for industrial automation, control systems, HVAC, and various electrical applications.
The country of origin for this micro switch is India.
The contact AC voltage rating is 250 volts.
