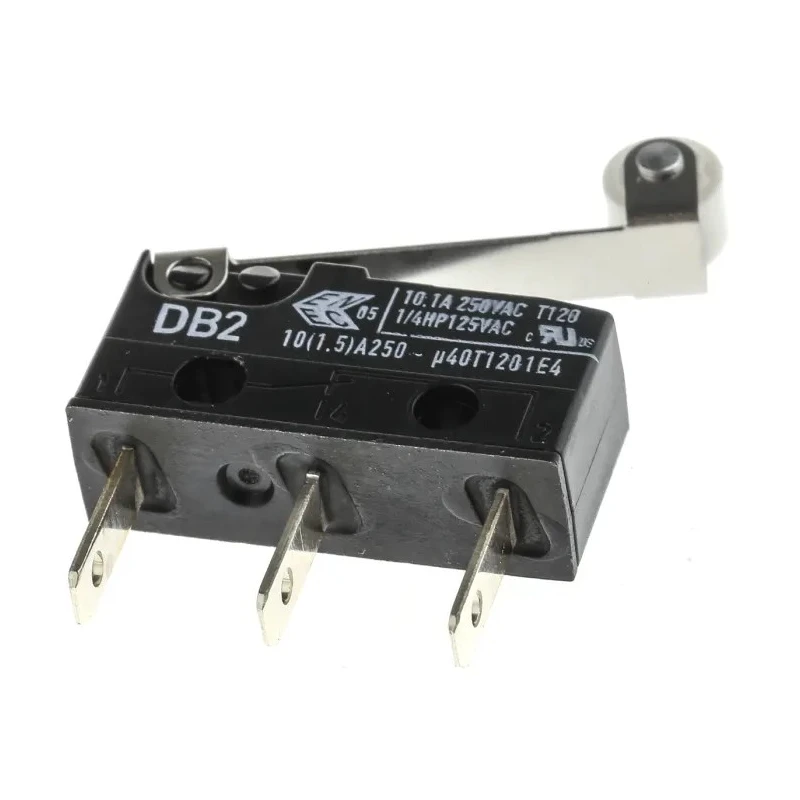

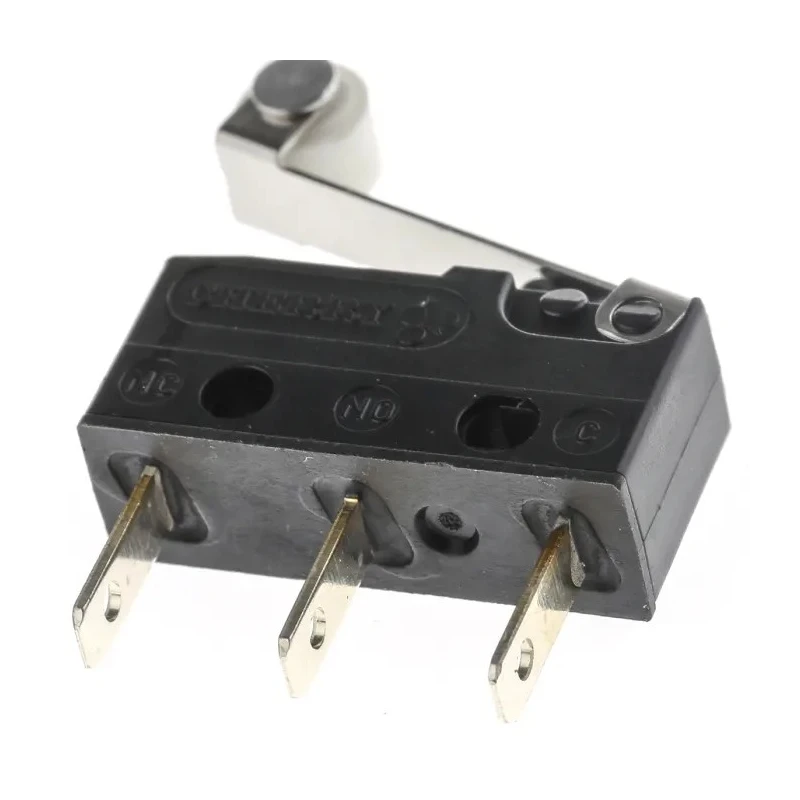

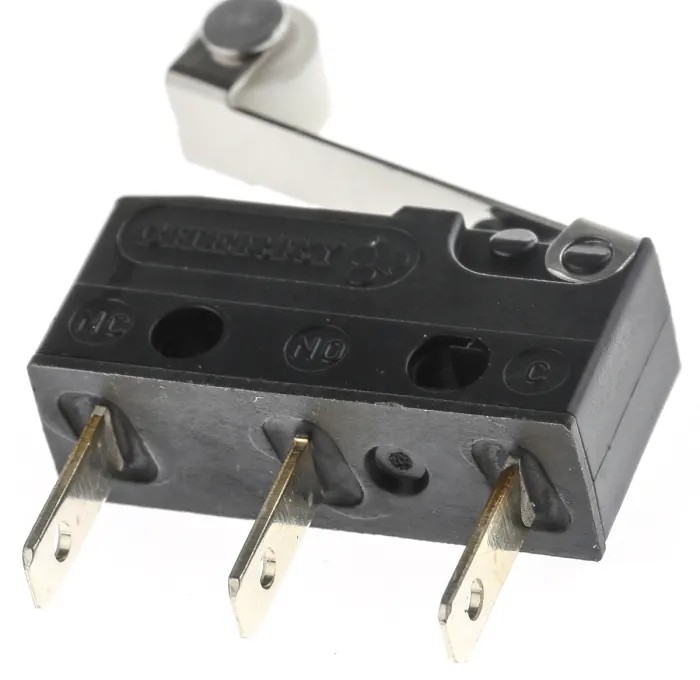

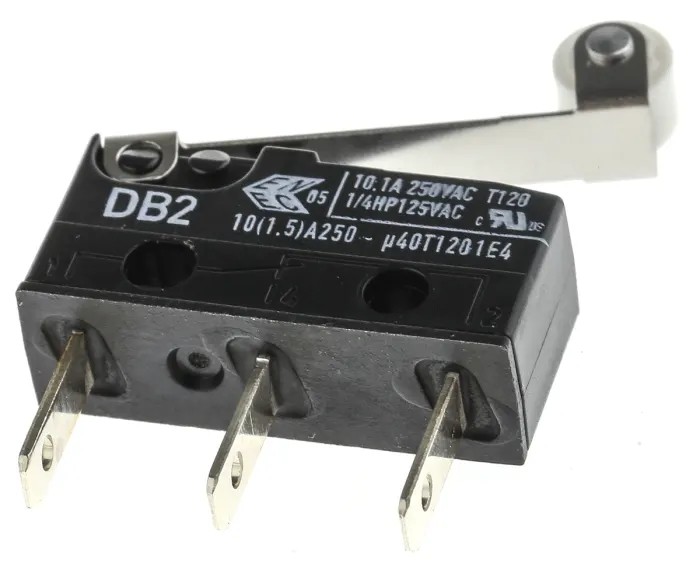

ZF Roller Lever Micro Switch with Tab Terminal, 10.1A, 250 V AC, SPDT, IP50 DB2C-B1RC

Category Micro Switch Brand ZF Condition New

Specifications

Country of Origin Germany
Brand ZF
Model DB2C-B1RC
IP Rating IP50
Housing Material Polyethylene Terephthalate, Polyamide
Maximum Operating Temperature 120°C
Contact Configuration SPDT
Actuator Type Roller Lever
Minimum Operating Temperature -40°C
Terminal type Tab
Standards/Approvals RoHS
Switch Contact Current 10.1A
Operating Force 0.93N
Mechanical Life 15000000Operations
Contact AC Voltage 250V ac
Microswitch Type DB Subminiature

Key Features

  • The roller lever actuator provides precise mechanical switching control.
  • Terminals utilize tab type connection to ensure secure electrical contact.
  • The switch supports a contact current of 10.1A with SPDT contact configuration.
  • Housing is made of durable Polyethylene Terephthalate and Polyamide materials with an IP50 rating for protection.
  • Operating force is low at 0.93N for smooth actuation.
  • Operates under extreme temperatures ranging from -40°C to 120°C for broad industrial usage.
  • Designed as a DB subminiature microswitch type with a contact AC voltage rating of 250V ac.
  • Mechanical life expectancy is 15 million operations ensuring long service reliability.

Product Description

ZF DB2C-B1RC Roller Lever Micro Switch with Tab Terminal, rated at 10.1A and 250 V AC, is engineered for industrial and automation applications requiring precise and reliable switching. Its SPDT contact configuration and roller lever actuator provide excellent mechanical control, suitable for use in machinery, control panels, and HVAC systems.

The switch features a robust housing constructed from Polyethylene Terephthalate and Polyamide, rated at IP50 for protection against dust ingress. The tab terminal type facilitates straightforward and reliable electrical connections.

Operating smoothly with an actuation force of only 0.93N, the microswitch performs consistently across a wide temperature range from -40°C to 120°C, making it suitable for extreme environmental conditions in industrial and manufacturing sites.

Designed as a DB subminiature switch, it supports a contact AC voltage of 250 V and has a mechanical life of up to 15 million operations, offering extended durability and reduced maintenance requirements. This makes it ideal for use in industrial automation systems, assembly lines, and electrical equipment where dependable switching is critical.

The roller lever actuator provides precise mechanical switching control. Tab terminal type for secure electrical connections. Contact current rated at 10.1A with SPDT configuration. Durable housing made of Polyethylene Terephthalate and Polyamide, IP50 rated.

Low operating force of 0.93N ensures smooth actuation. Operating temperature range from -40°C to 120°C. DB subminiature microswitch type with 250V AC contact voltage. Mechanical life expectancy of 15 million operations. Manufactured in Germany with RoHS compliance.

This microswitch is suited for use in applications across industrial automation, electrical control systems, HVAC controls, and machinery operations. Its reliable performance and long service life provide an excellent solution for precise control switching needs.

Explore a broad range of ZF switches and Micro Switch actuators available for industrial and electrical applications in the EnvMart catalog.

ZF Roller Lever Micro Switch with Tab Terminal, 10.1A, 250 V AC, SPDT, IP50 DB2C-B1RC
Looking to purchase in bulk?
  • Purchase item in bulk quantity
  • Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a contact current rating of 10.1A.

The maximum operating temperature for this micro switch is 120°C.

It features a roller lever actuator for precise mechanical switching control.

The micro switch is rated IP50, providing protection against dust ingress.

The housing is made from Polyethylene Terephthalate and Polyamide materials.

The minimum operating temperature is -40°C, allowing it to function in extreme conditions.

It has a mechanical life expectancy of 15 million operations.

This model utilizes a tab terminal type for secure electrical connections.

The contact configuration is SPDT (Single Pole Double Throw).

Yes, this micro switch is RoHS compliant, ensuring it meets environmental standards.

It is suitable for industrial automation, electrical control systems, HVAC controls, and machinery operations.

The operating force required for actuation is low at 0.93N, ensuring smooth operation.
