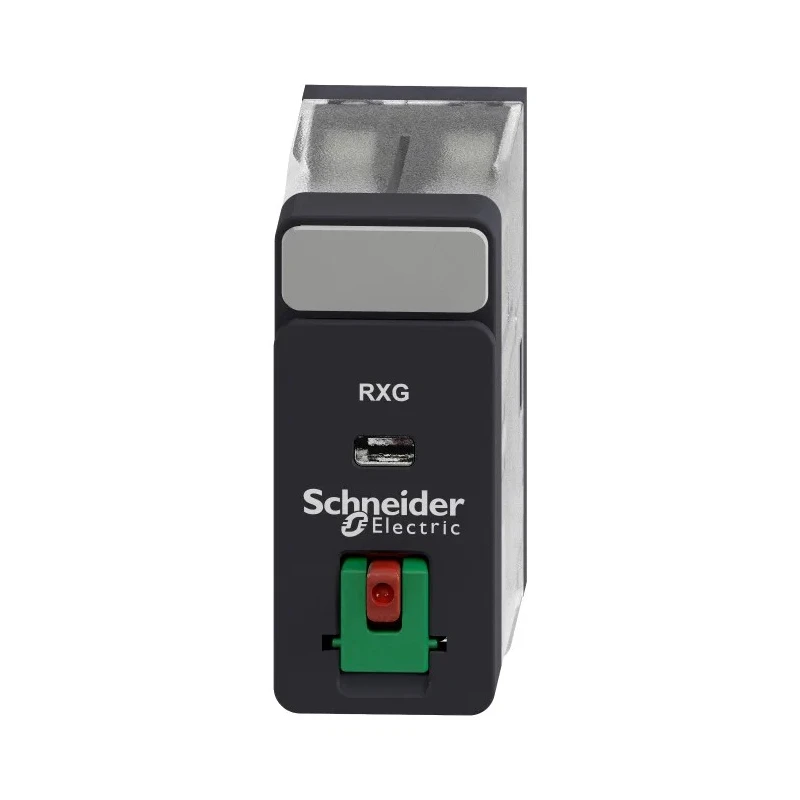

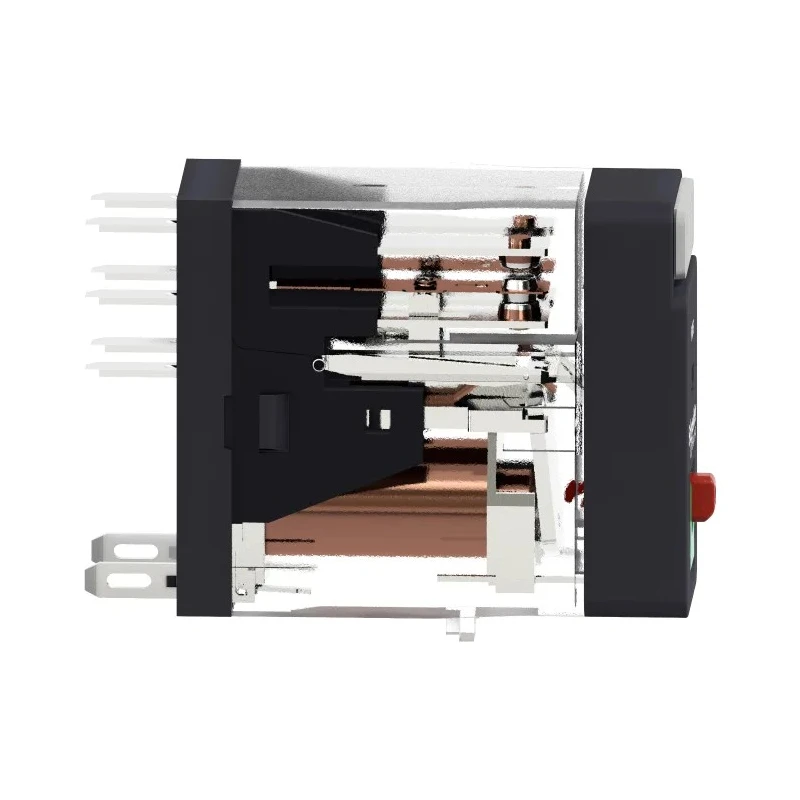

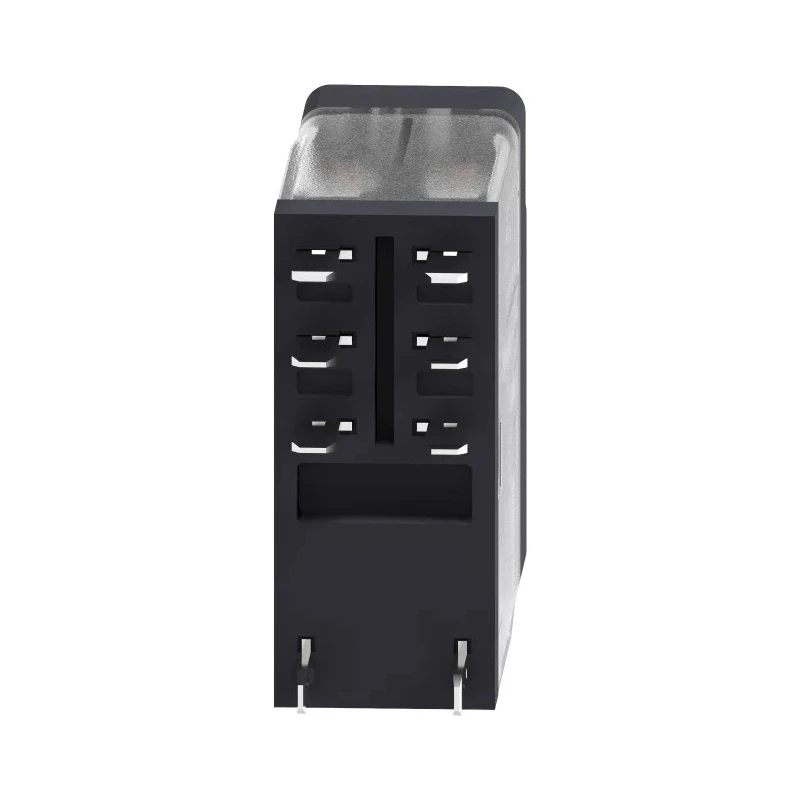

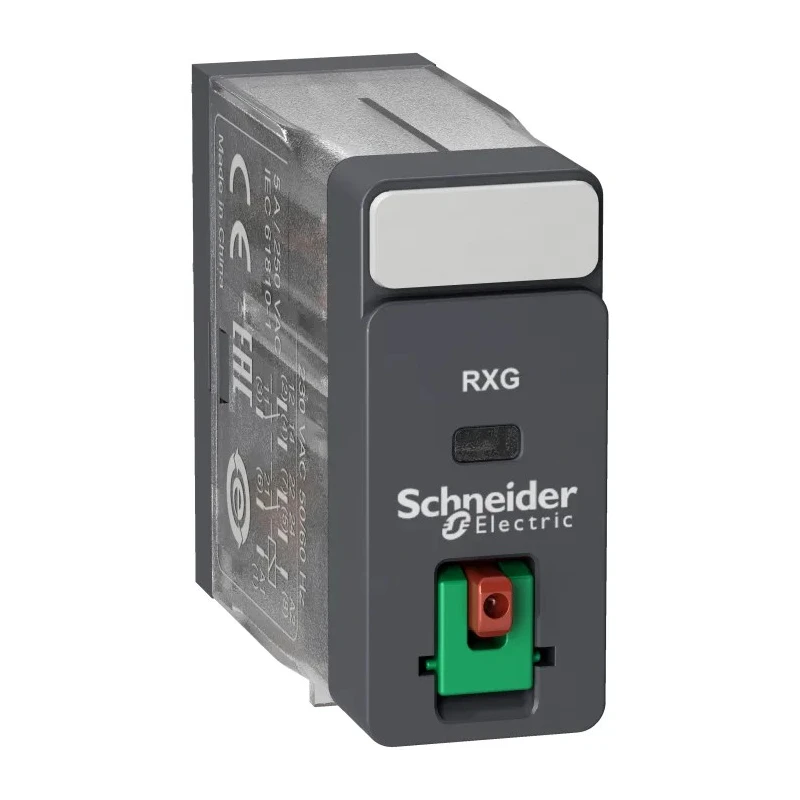

Schneider Electric Power Relay with 120V AC Coil, 5A Switching Current, 2 CO Contacts, Harmony Relay RXG Series RXG21F7
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 30.6mm |
| Length | 13mm |
| Model | RXG21F7 |
| Width | 37.1mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXG |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 2 CO |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CE, CSA |
| Coil Resistance | 6.3kΩ |
| Coil Voltage | 120V ac |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 820mW |
| Better World Claim | Designed for Disassembly |
Key Features
- Equipped with plug-in terminal type for secure and quick installation.
- Part of the Harmony Relay RXG series known for compact and reliable design.
- Operates within a temperature range of -40°C to 70°C for versatile industrial use.
- Silver alloy contact material ensures durability and low contact resistance of 100mΩ.
- Designed with a coil resistance of 6.3kΩ and coil power consumption of 820mW for efficiency.
- Conforms to CE and CSA standards for safety and compliance.
- Ideal for PLC interface and industrial automation systems requiring reliable switching solutions.
Product Description
Schneider Electric RXG21F7 Power Relay is engineered for reliable switching applications in electrical automation and control gear. Featuring a 120V AC coil and 2 double-pole double-throw (DPDT) changeover contacts with a 5A switching current rating, it is part of the Harmony Relay RXG series designed for robust performance and space-saving installation.
The relay employs plug-in terminal type connectors for fast mounting and secure connections. Silver alloy contacts ensure longevity with low contact resistance rated at 100mΩ, contributing to efficient electrical conductivity. The coil resistance is 6.3kΩ with a coil power consumption of 820mW, enabling energy-efficient operation within industrial and commercial systems.
Operating temperature range of -40°C to 70°C makes the RXG21F7 suitable for harsh environments. The dimensions of 37.1mm width, 30.6mm height, and 13mm length allow integration into compact enclosures, reducing footprint in automated systems.
This relay conforms to CE and CSA standards, verifying its quality and safety for industrial use. The Harmony RXG series relays are widely utilized in programmable logic controller (PLC) interfaces, machine control, and automated manufacturing equipment to improve reliability and machine uptime.
Designed for easy installation, the unit supports faston pin terminals and offers a lockable test button feature. The RXG21F7's well-balanced combination of compactness, reliability, and performance makes it apt for various industrial, manufacturing, and HVAC control applications.
Equipped with plug-in terminal type for secure and quick installation. Part of the Harmony Relay RXG series known for compact and reliable design. Operates within a temperature range of -40°C to 70°C for versatile industrial use.
Silver alloy contact material ensures durability and low contact resistance of 100mΩ. Designed with a coil resistance of 6.3kΩ and coil power consumption of 820mW for efficiency. Conforms to CE and CSA standards for safety and compliance.
Compact dimensions: 37.1mm width, 30.6mm height, and 13mm length suitable for space-saving applications. Ideal for PLC interface and industrial automation systems requiring reliable switching solutions. Explore the Schneider Electric product range on EnvMart for advanced electrical components designed to optimize industrial efficiency and safety.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RXG21F7 power relay has a switching current rating of 5A.
This model operates with a coil voltage of 120V AC.
The dimensions of the RXG21F7 are 37.1mm in width, 30.6mm in height, and 13mm in length.
The RXG21F7 features a contact configuration of 2 changeover contacts (2 CO).
The operating temperature range for this relay is from -40°C to 70°C.
It is equipped with plug-in type terminals for secure and quick installation.
The contact resistance is rated at 100mΩ, ensuring low resistance for efficient conductivity.
This relay conforms to CE and CSA standards for safety and compliance.
The coil resistance is 6.3kΩ with a coil power consumption of 820mW.
The maximum switching AC voltage for the RXG21F7 is 250V.
This relay is ideal for use in programmable logic controller (PLC) interfaces and industrial automation systems.
The contacts are made of silver alloy, which contributes to durability and low contact resistance.
