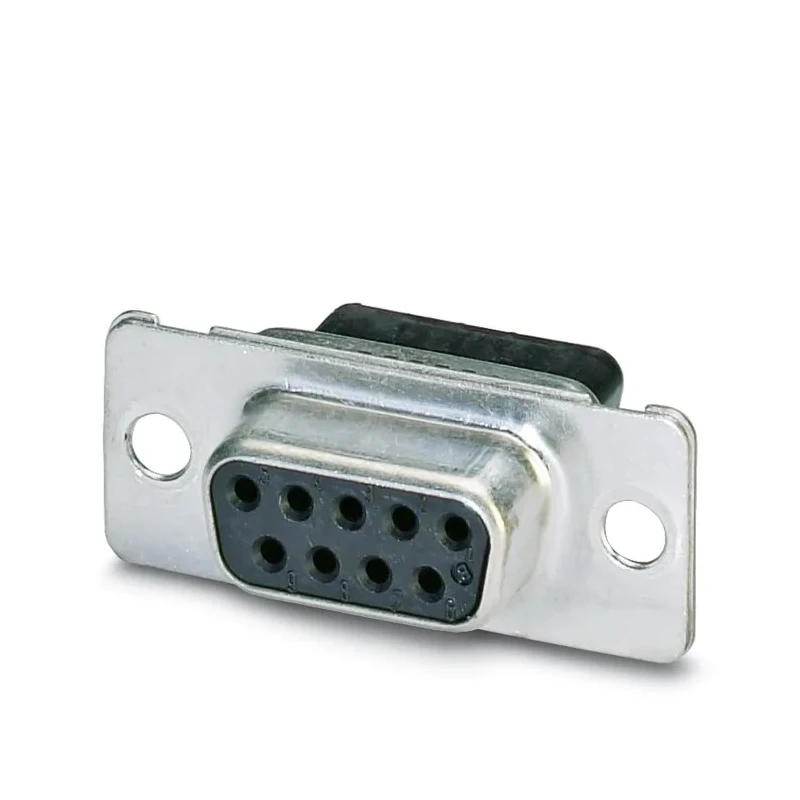

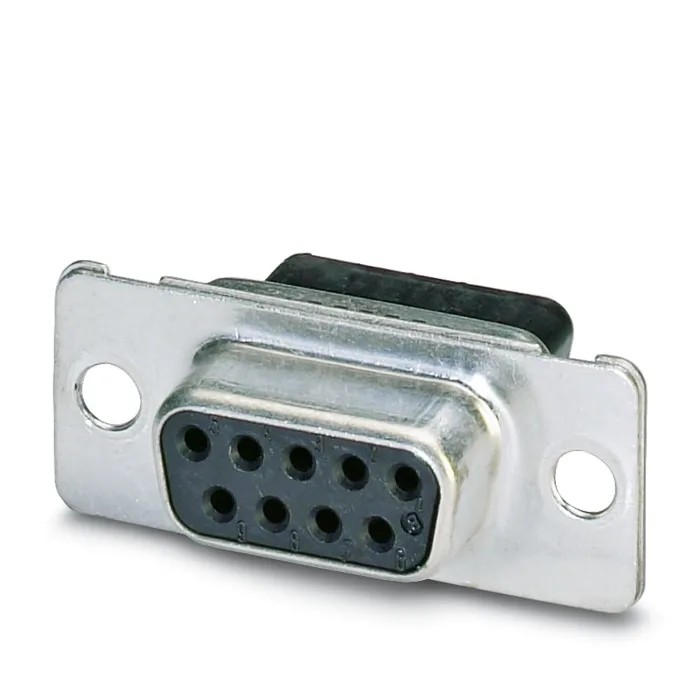

Phoenix Contact 9 Way Straight Screw D-Sub Connector, Female, Metal Housing, 5A, 125V, Solder Termination 1688861
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 125V |
| Brand | Phoenix Contact |
| Orientation | Straight |
| Current | 5A |
| Model | 1688861 |
| Mount Type | Screw |
| Housing Material | Metal |
| Contact Material | Copper |
| Series | VS-09-BU-DSUB-CD-B |
| Mounting Hardware | Screw |
| Termination Type | Solder |
| Maximum Operating Temperature | 130°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | CHINA RoHS, EAC, EU REACH, EU RoHS |
| Contact Plating | Gold |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | E |
Key Features
- Nine contact points support reliable signal transmission.
- Rated for current up to 5A at 20°C to handle moderate power loads.
- Operates safely within voltage rating of 125V for standard use.
- Metal housing ensures durability and mechanical protection under harsh conditions.
- Straight orientation with screw mounting offers secure panel installation.
- Solder termination method provides a robust, permanent electrical connection.
- Capable of operating in temperature ranges from -55°C to 130°C for wide industrial applicability.
- Contact pins fabricated from copper and plated with gold for corrosion resistance and longevity.
Product Description
Featuring a sturdy metal housing and gold-plated copper contacts, this connector supports secure signal transmission with excellent corrosion resistance and mechanical strength.
The connector includes nine female contacts arranged in a straight D-sub form factor with screw mounting hardware for firm panel attachment. It supports a current rating of 5A and a nominal voltage rating of 125V, suitable for various control and telecommunications equipment.
Operating temperature ranges from -55°C up to 130°C allow use in demanding environments including electrical enclosures and mechanical systems exposed to temperature extremes. The solder termination provides a stable and vibration-resistant electric connection, ideal for permanent installations.
Designed to withstand at least 500 insertion and withdrawal cycles, the connector ensures consistent performance over prolonged usage. It complies with CHINA RoHS, EAC, EU REACH, and EU RoHS environmental standards. The compact dimensions (31.19mm length, 17.9mm width, 12.93mm depth) enable compatibility with IP20-rated housings for internal applications.
This D-sub connector is widely employed in automation control systems, electrical enclosures, mechanical systems, and telecommunications for signal and data transmission. The metal body enhances physical protection while facilitating integration with panel-mount frames and sleeves.
Nine female contacts for reliable connectivity. Metal housing provides mechanical robustness. Solder termination ensures secure connections. Supports 5A current rating and 125V voltage rating. Wide operating temperature range from -55°C to 130°C.
Gold-plated copper contacts enhance corrosion resistance. Designed for durability with 500+ mating cycles. Compliant with major RoHS and REACH standards. Compact size fits IP20 internal applications. Manufactured in Germany for quality assurance.
Explore the full range of Phoenix Contact D-Sub Connectors and accessories on EnvMart for diverse industrial electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 5A at 20°C, suitable for moderate power loads.
It operates safely within a voltage rating of 125V, making it suitable for standard applications.
The connector can operate in temperature ranges from -55°C to 130°C, allowing for use in demanding environments.
It features a metal housing for durability and gold-plated copper contacts for corrosion resistance.
This model includes nine female contacts arranged in a straight orientation.
It utilizes a solder termination method, providing a stable and permanent electrical connection.
The connector is designed for screw mounting, ensuring secure panel installation.
It complies with CHINA RoHS, EAC, EU REACH, and EU RoHS environmental standards.
The compact dimensions are 31.19mm in length, 17.9mm in width, and 12.93mm in depth.
It is designed to withstand at least 500 insertion and withdrawal cycles, ensuring consistent performance.
It is widely employed in automation control systems, electrical enclosures, mechanical systems, and telecommunications for signal and data transmission.
This model is manufactured in Germany, ensuring quality assurance in its production.
