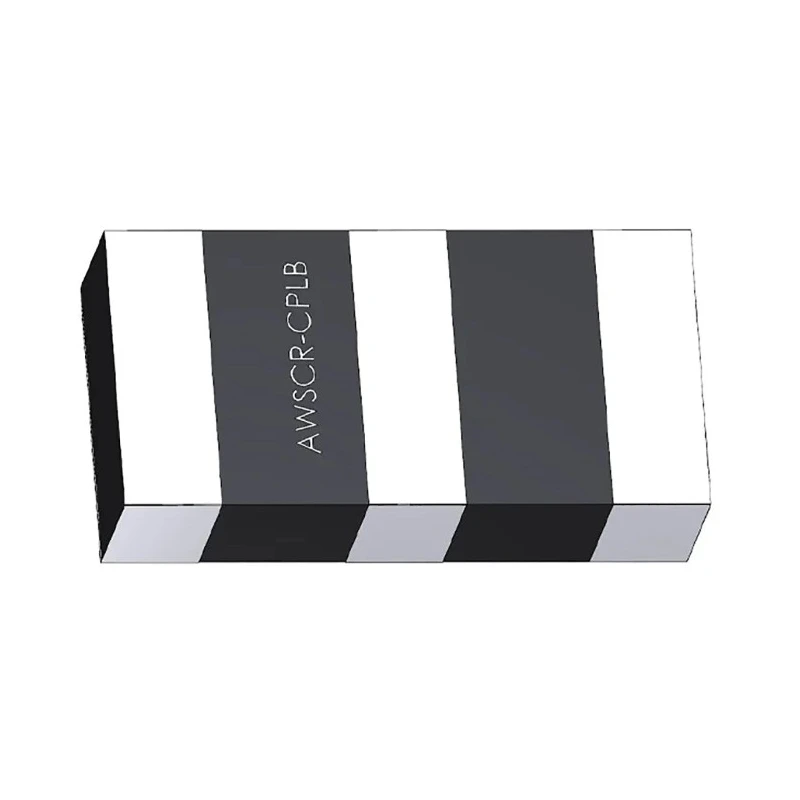

Abracon Ceramic Resonator 3 MHz 30 pF 3-Pin Surface Mount Tape & Reel 6x3x1.8 mm AWSCR-3.00CPLB-C30-T4
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 1.8mm |
| Length | 6mm |
| Model | AWSCR-3.00CPLB-C30-T4 |
| Packaging | Tape & Reel |
| Width | 3mm |
| Mount Type | Surface |
| Series | AWSCR-CPLB |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Package Type | Tape & Reel |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Load Capacitance | 30pF |
| Resonance Frequency | 3MHz |
| Resonance Resistance | 50Ω |
Key Features
- Industry standard footprint with dimensions 6 mm length, 3 mm width, and 1.8 mm height.
- Low resonance impedance ensures stable oscillation.
- Packaged in tape & reel format suitable for automated PCB assembly.
- Operating temperature range from -40°C to 125°C for extended industrial use.
- RoHS compliant for environmental and safety standards.
- Resonance resistance rated at 50 Ω for efficient performance.
- Solder termination type suitable for surface mount technology.
Product Description
Abracon AWSCR-3.00CPLB-C30-T4 Ceramic Resonator is engineered for precision frequency control at 3 MHz with a load capacitance of 30 pF. This 3-pin surface mount component features an industry standard footprint measuring 6 mm in length, 3 mm in width, and 1.8 mm in height, making it suitable for compact PCB layouts.
Its low resonance impedance and frequency stability of ±0.4% ensure reliable oscillation critical for industrial, metering, remote control, and microprocessor applications. The resonator is delivered in tape and reel packaging compatible with high-speed automated assembly lines.
Operating within a temperature range from -40°C to 125°C, this resonator supports a wide range of industrial and electronic appliance environments. The device is RoHS compliant, highlighting its adherence to stringent environmental standards.
Industry standard footprint with dimensions 6x3x1.8 mm. Low resonance impedance for stable oscillations. Tape & reel packaging supported for automated assembly. Wide operating temperature range from -40°C to 125°C. RoHS compliant ensuring environmental safety.
±0.5% frequency tolerance and ±0.4% frequency stability. Resonance resistance of 50 Ω. Solder termination for surface mount mounting. ±0.1% frequency ageing for durability.
This ceramic resonator is excellent for use in industrial control systems, metering devices, remote control units, microprocessors, and electronic appliances requiring reliable frequency referencing components.
Discover more components in the Ceramic Resonators category at EnvMart for your industrial and electronic design needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resonance frequency of this model is 3 MHz, ensuring precise frequency control for various applications.
This resonator has dimensions of 6 mm in length, 3 mm in width, and 1.8 mm in height, making it suitable for compact PCB layouts.
The load capacitance of this unit is 30 pF, which is essential for its operation in frequency control applications.
It operates within a temperature range from -40°C to 125°C, suitable for various industrial environments.
The resonance resistance is rated at 50 Ω, which contributes to its efficient performance in oscillation.
It is packaged in tape and reel format, making it compatible with automated PCB assembly processes.
This unit features a solder termination type, suitable for surface mount technology.
The frequency stability is ±0.4%, ensuring reliable oscillation for critical applications.
This model is RoHS compliant, adhering to environmental and safety standards.
This resonator has a pin count of 3, which is standard for its design.
