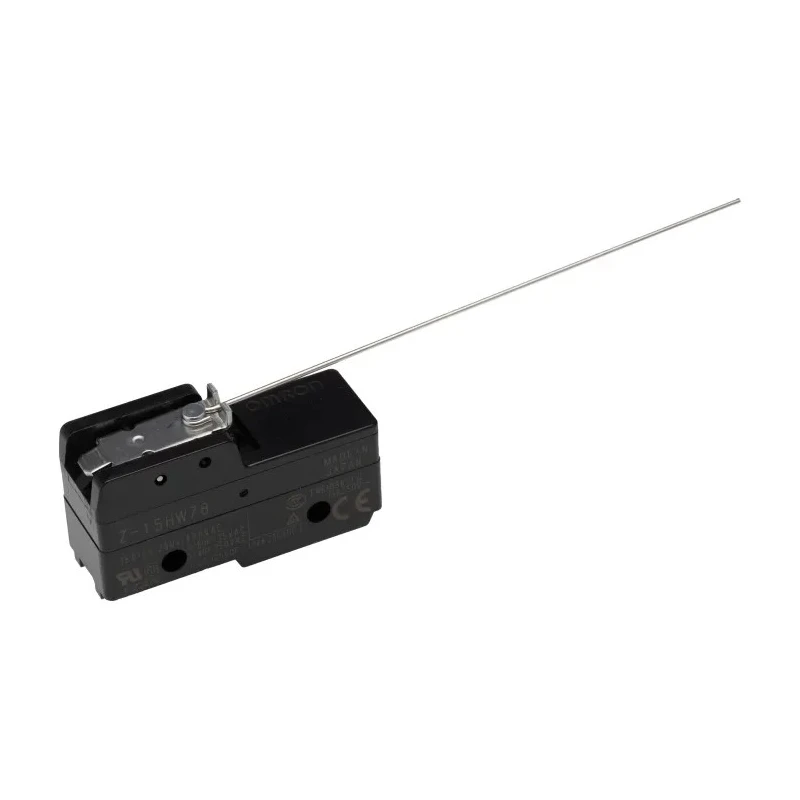

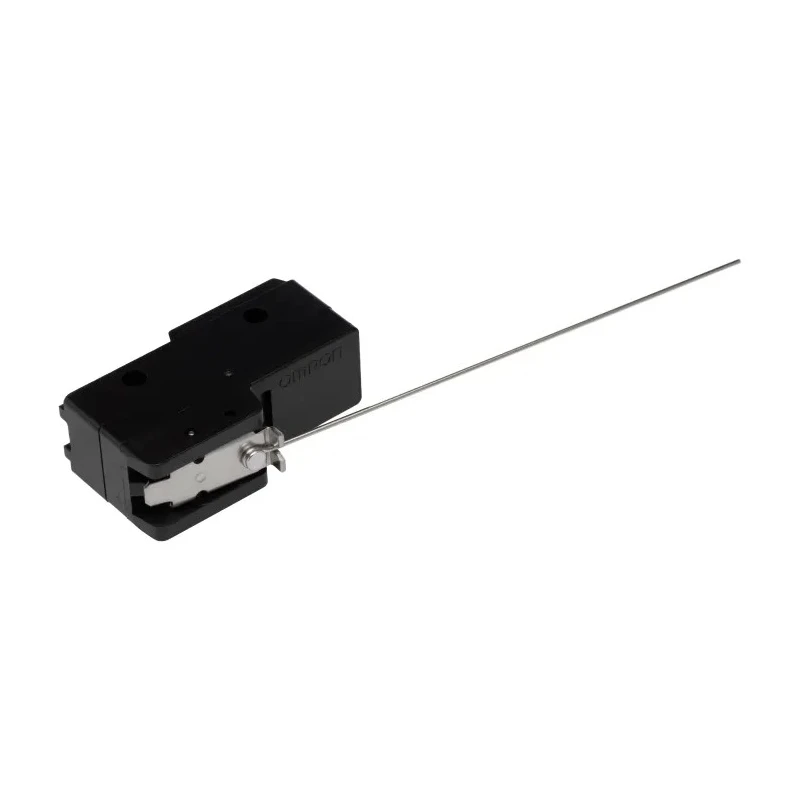

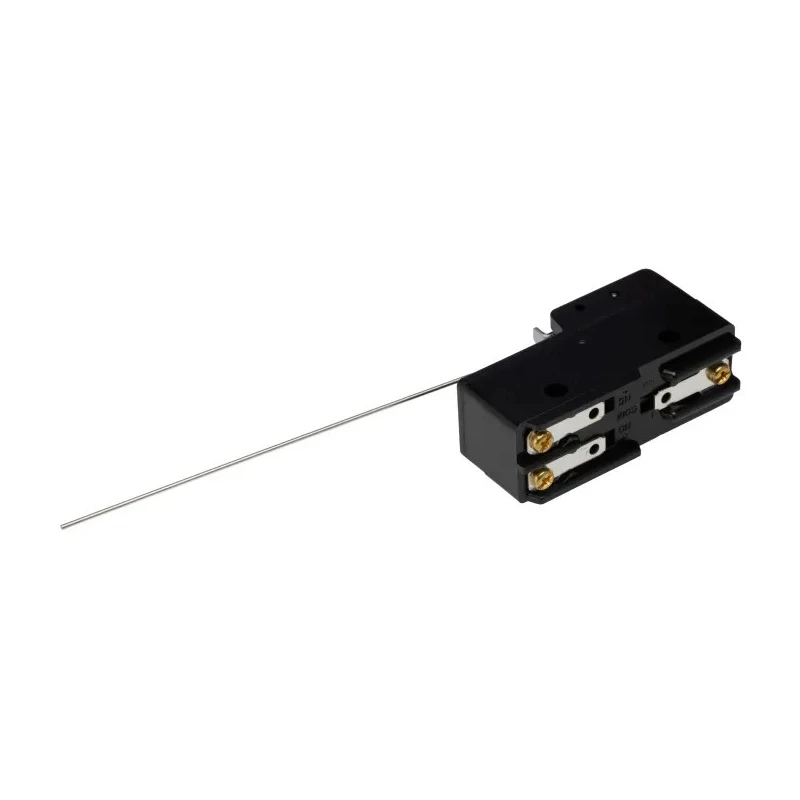

Omron Z Series Lever Limit Switch SPDT 15A 500V AC Thermosetting Resin Housing IP00
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Length | 49.2mm |
| Model | IP00 |
| Depth | 17.45mm |
| IP Rating | IP00 |
| Width | 32.4mm |
| Housing Material | Thermosetting Resin |
| Series | Z |
| Maximum Operating Temperature | 80°C |
| Mounting Orientation | Multi Directional |
| Contact Configuration | SPDT |
| Actuator Type | Lever |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 15A |
| Terminal type | Solder |
| Standards/Approvals | CE, CSA, UL, CCC |
| Operating Force | 2.45N |
| Mechanical Life | 20000000Operations |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 500V ac |
| Compliant with safety standards | CCC, CE, CSA, UL |
Key Features
- This limit switch features a lever actuator for reliable mechanical operation.
- SPDT contact configuration allows flexible switching control for diverse applications.
- Thermosetting resin housing ensures durability and electrical insulation.
- High switching current capacity of 15 amperes supports heavy-duty usage.
- Operates safely under voltage ratings of up to 500 volts AC and 250 volts DC.
- Wide operating temperature range from -25°C to +80°C.
- Snap action contacts provide quick and precise switching events.
- Mechanical lifespan of up to 20 million operations ensures long-term reliability.
Product Description
Omron's Z Series lever limit switch model Z-15HW78 is engineered for industrial automation applications requiring precise position and limit control. This multi-directionally mountable switch features a robust lever actuator constructed from thermosetting resin, offering excellent electrical insulation and mechanical durability.
Designed with SPDT (Single Pole Double Throw) contact configuration and snap action contact type, the switch supports high switching currents of 15 amperes at voltages up to 500 volts AC and 250 volts DC. Its protection rating is IP00, suitable for use in controlled, dry industrial environments.
Operating reliably in temperatures ranging from -25°C to 80°C, this limit switch is compliant with important safety standards including CE, CSA, UL, and CCC certifications. The mechanical life expectancy of 20 million operations guarantees durable performance for long-term automation projects.
The switch is ideal for use in automated machinery for precise limit detection, conveyor systems for positional feedback, robotic devices, and safety circuits requiring high precision switching. Its snap action mechanism ensures rapid and accurate switching response essential for industrial control systems.
This limit switch features a lever actuator for reliable mechanical operation. SPDT contact configuration allows flexible switching control for diverse applications. Thermosetting resin housing ensures durability and electrical insulation.
High switching current capacity of 15 amperes supports heavy-duty usage. Operates safely under voltage ratings of up to 500 volts AC and 250 volts DC. Wide operating temperature range from -25°C to +80°C. Snap action contacts provide quick and precise switching events.
Mechanical lifespan of up to 20 million operations ensures long-term reliability. Multi-directional mounting orientation for flexible installation. Certified compliant with CE, CSA, UL, and CCC safety standards.
Its design compliance and robust electrical specifications make it suitable for various industrial, manufacturing, and automation sectors requiring reliable limit switching solutions. Users should install the switch in dry environments protected from dust and liquids due to its IP00 rating.
Explore a wide range of Limit Switches and related industrial automation components on EnvMart for your projects and system requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The limit switch has a switching current capacity of 15 amperes.
It operates safely under voltage ratings of up to 500 volts AC and 250 volts DC.
This unit operates reliably in temperatures ranging from -25°C to 80°C.
It features a lever actuator for reliable mechanical operation.
The limit switch has a Single Pole Double Throw (SPDT) contact configuration.
The mechanical lifespan is rated for up to 20 million operations.
The housing is made from thermosetting resin, providing electrical insulation and durability.
The dimensions are 49.2mm in length, 32.4mm in width, and 17.45mm in depth.
Yes, it is compliant with CE, CSA, UL, and CCC safety standards.
It supports multi-directional mounting for flexible installation.
It uses snap action contacts, which provide quick and precise switching events.
The operating force required is 2.45N.
