Microchip PIC18F27J53-I/SP 8-Bit PIC18F Microcontroller 48 MHz 128kB FLASH 28-Pin SPDIP

Microchip PIC18F27J53-I/SP is an 8-bit PIC18F microcontroller designed for reliable performance and flexibility in industrial and embedded applications. Operating at a maximum clock frequency of 48 MHz, it features a robust 128kB FLASH program memory combined with 3.8kB of RAM, supporting complex code implementation and data storage.

The microcontroller incorporates 22 programmable I/O ports allowing extensive interfacing with external devices, complemented by 10 channels of 12-bit ADCs for precise analogue signal acquisition. Operating voltage ranges from 2.15 V to 3.6 V enable integration into both low and standard power designs, with a maximum power dissipation capped at 1 Watt to maintain thermal efficiency.

This device features eight timers and three analogue comparators, broadening its versatility in timing control and signal comparison tasks. The RISC instruction set architecture enhances execution speed, optimizing performance while minimizing power consumption.

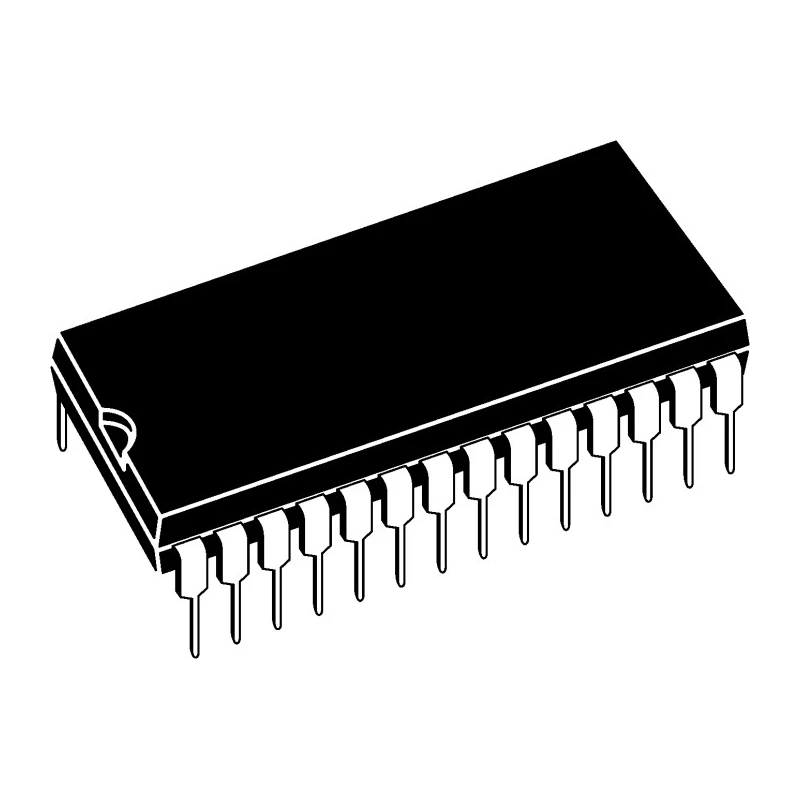

Housed in a 28-pin Shrink Plastic Dual In-line Package (SPDIP), the microcontroller is designed for through-hole mounting, facilitating easy assembly on a wide range of PCBs. The device's physical dimensions are 35.56 mm in length, 8.51 mm in width, and 3.81 mm in height, providing a compact footprint suitable for various embedded systems.

The product is compliant with RoHS standards, ensuring reduced environmental impact through restriction of hazardous substances. Its operating temperature range from -40°C to +85°C makes it well-suited for challenging industrial, automotive, and commercial environments.

Employs an 8-bit PIC core architecture suitable for embedded applications. Maximum clock frequency rated at 48 MHz ensuring high-speed processing. Equipped with 128kB FLASH program memory and 3.8kB RAM size for robust data handling.

Features 22 programmable I/O pins and 10 x 12-bit ADC channels for versatile interfacing. Operates between supply voltages 2.15V minimum to 3.6V maximum supporting low-power designs. Designed to dissipate a maximum power of 1 Watt for energy efficiency.

Complies with RoHS standards ensuring environmental compliance. Operational temperature range from -40°C to 85°C, suitable for industrial environments. Package type: 28-Pin SPDIP for easy through-hole assembly.

This microcontroller is ideal for use in industrial control systems, automotive electronics, consumer appliances, and general embedded applications requiring precise control and signal processing capabilities. Its robust operational range and comprehensive peripheral set enable deployment in harsh and demanding environments.
