Bourns Shielded Wirewound Surface Mount Inductor 15 μH ±20% 9 A Idc Carbonyl Powder Core SRP1265A

Free Delivery in India | Lowest Global Shipping Charges

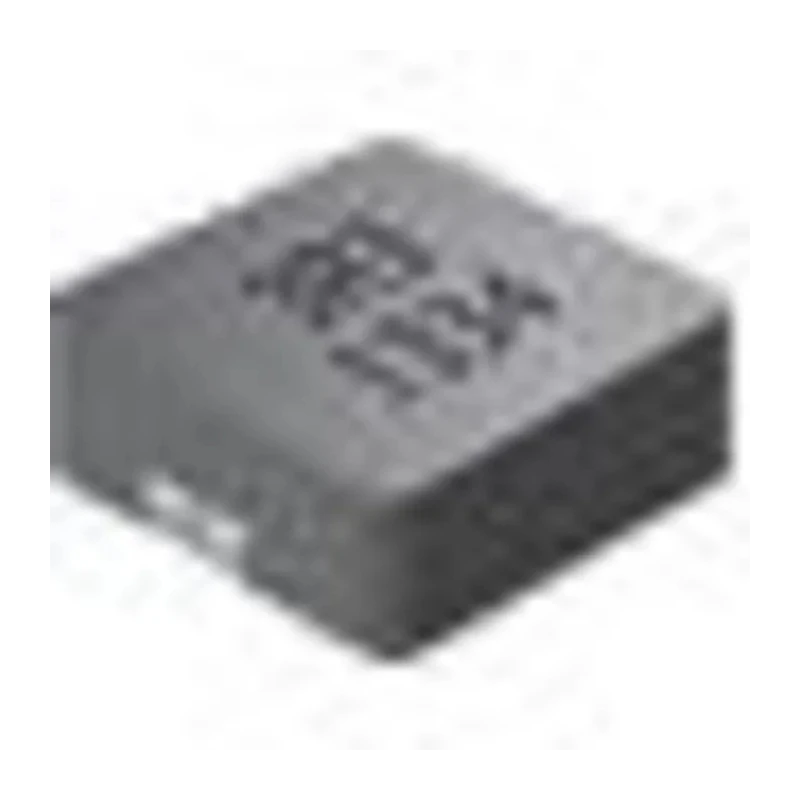

Bourns Shielded Wirewound Surface Mount Inductor 15 μH ±20% 9 A Idc Carbonyl Powder Core SRP1265A

Name: Bourns Shielded Wirewound Surface Mount Inductor 15 μH ±20% 9 A Idc Carbonyl Powder Core SRP1265A
Brand: BOURNS
SKU: 416368
Price: 1.64 USD
Availability: InStock



Category Surface Mount Inductor Brand BOURNS Condition New

Specifications

Country of Origin	India
Brand	Bourns
Height	6.2mm
Length	13.5mm
Model	SRP1265A
Depth	12.5mm
Packaging	Tape & Reel
Series	SRP1265A
Maximum Operating Temperature	150°C
Minimum Operating Temperature	-40°C
Core Material	Carbonyl Powder
Inductance Range	0.15 to 47 μH
Inductance	15μH
Standards/Approvals	RoHS
Package/Case	1265
Maximum DC Current	9A
Maximum DC Resistance	28Ω
Inductance Tolerance	±20 %
Termination Style	Solder
Maximum Self Resonant Frequency	7MHz
Minimum Quality Factor	20
Inductor Construction	Shielded
Automotive Standard	AEC-Q200

Key Features

Constructed with a carbonyl powder core providing high saturation current capacity.
Shielded design ensures low electromagnetic interference.
Inductance tolerance is ±20%, suitable for robust circuit requirements.
Maximum DC resistance is 28 Ω ensuring efficient performance.
Operates reliably within temperature range of -40°C to 150°C.
Mounting style is solder for secure surface mount application.
Complies with RoHS standards and automotive standard AEC-Q200.
Maximum self-resonant frequency is 7 MHz and minimum quality factor is 20 for stable operation.

Product Description

Bourns SRP1265A shielded wirewound surface mount inductor features a carbonyl powder core delivering 15 μH inductance with ±20% tolerance. It supports a maximum DC current of 9 A and offers a robust maximum DC resistance of 28 Ω, ensuring efficiency in high-current applications.

With a compact 1265 package size (13.5 mm length, 6.2 mm height, 12.5 mm depth), this inductor is designed for optimized surface mount installation using solder termination style. It conforms to automotive-grade AEC-Q200 standards and meets RoHS compliance, making it suited for automotive and industrial electronic circuits.

The shielded construction minimizes electromagnetic interference, improving circuit stability. Its operational temperature range of -40°C to 150°C allows reliable function in harsh environments. The inductor delivers a maximum self-resonant frequency of 7 MHz along with a minimum quality factor (Q) of 20, promoting consistent performance across frequencies.

Available in tape and reel packaging, this inductor is ideal for automated PCB assembly lines. Its inductance range spans 0.15 to 47 μH, providing flexibility for various design requirements. The carbonyl powder core supports high saturation current, enabling effective energy storage and filtering in power electronics.

Carbonyl powder core for high current saturation. Shielded construction reduces electromagnetic interference. Wide operational temperature from -40°C to 150°C for rugged use. Meets automotive standard AEC-Q200 and RoHS compliance.

Compact 1265 package size with solder termination. Inductance tolerance of ±20% for design reliability. Maximum DC current rating of 9 A. Minimum quality factor of 20 ensures frequency stability. Maximum self-resonant frequency of 7 MHz optimizes performance.

Packaged in tape and reel for efficient manufacturing integration.

This Bourns SRP1265A inductor is ideal for high-reliability applications in automotive, industrial, and power electronics systems requiring efficient energy storage and filtering. Explore more Surface Mount Inductors and electronic components on EnvMart for comprehensive solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Bourns SRP1265A inductor has an inductance value of 15 μH with a tolerance of ±20%.

This model supports a maximum DC current rating of 9 A, making it suitable for high-current applications.

The maximum DC resistance for the SRP1265A inductor is 28 Ω, ensuring efficient performance in circuits.

It operates reliably within a temperature range of -40°C to 150°C, suitable for harsh environments.

The maximum self-resonant frequency of the Bourns SRP1265A is 7 MHz, promoting stable operation across frequencies.

The minimum quality factor (Q) for this inductor is 20, which ensures frequency stability during operation.

This inductor utilizes a carbonyl powder core, which supports high saturation current capacity.

The package size for this inductor is 1265, with dimensions of 13.5 mm in length, 6.2 mm in height, and 12.5 mm in depth.

It features a solder termination style, designed for secure surface mount applications.

This inductor complies with RoHS standards and automotive standard AEC-Q200, making it suitable for automotive applications.

The Bourns SRP1265A inductor is available in tape and reel packaging, ideal for automated PCB assembly lines.

It is suitable for high-reliability applications in automotive, industrial, and power electronics systems requiring efficient energy storage and filtering.
