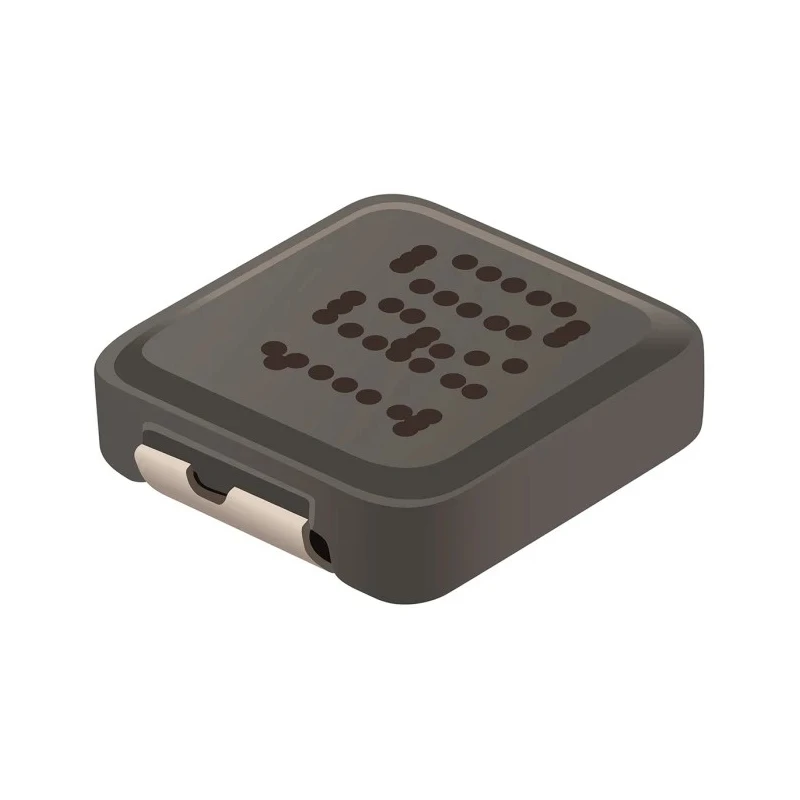

Bourns 5015 Shielded Surface Mount Inductor 8.2 μH ±20% 2.1 A Max DC Current Carbonyl Powder Core SRP5015TA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 5.2mm |
| Length | 5.7mm |
| Model | SRP5015TA |
| Depth | 1.3mm |
| Packaging | Reel |
| Series | SRP5015TA |
| Maximum Operating Temperature | 150°C |
| Wire | Enamelled copper |
| Minimum Operating Temperature | -40°C |
| Core Material | Carbonyl Powder |
| Inductance | 8.2μH |
| Standards/Approvals | RoHS |
| Package/Case | 5015 |
| Maximum DC Current | 2.1A |
| Pin Count | 2 |
| Maximum DC Resistance | 210mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 22MHz |
| Minimum Quality Factor | 10 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a carbonyl powder core for high saturation current.
- Shielded design minimizes magnetic radiation for reliable operation.
- Operating temperature range from -40°C to 150°C.
- Compliant with AEC-Q200 automotive standards.
- Features wirewound enamelled copper construction.
- Maximum DC resistance of 210 mΩ ensures efficient performance.
- Packaged in 5015 case and supplied on reel for automated assembly.
- Self-resonant frequency up to 22 MHz with a minimum quality factor of 10.
Product Description
Bourns SRP5015TA shielded surface mount inductor is a high-performance component engineered with a carbonyl powder core providing robust magnetic characteristics and a high saturation current capacity. This model delivers an inductance value of 8.2 μH with a tolerance of ±20%, making it suitable for applications that require stable inductive performance under varying electrical loads.
The inductor is designed with a shielded construction to significantly reduce electromagnetic interference and radiated magnetic fields, enhancing system reliability especially in automotive and industrial electronic environments. It adheres to the stringent AEC-Q200 qualification standard, endorsing its suitability for automotive applications including driver assistance systems, vehicle lighting, and information/entertainment electronics.
Designed for surface mounting with a compact 5015 case size, its dimensions measure 5.7 mm in length, 5.2 mm in height, and 1.3 mm in depth. The termination style is solder compatible, facilitating easy PCB assembly and integration. The wirewound enamelled copper construction and moulded encapsulation increase durability and electrical performance.
The device operates reliably within a temperature range of -40°C to 150°C, supporting a maximum DC current of 2.1 A and exhibiting a low DC resistance of 210 mΩ. This ensures minimal power losses and thermal stress during operation. Its maximum self-resonant frequency is rated at 22 MHz with a quality factor not less than 10, ensuring effectiveness in high-frequency power management circuits.
Carbonyl powder core enhances saturation current. Shielded to reduce magnetic emissions. Automotive standard AEC-Q200 compliant. Compact 5015 case suitable for surface mount technology. Wide operating temperature range supports various environmental conditions.
Low resistance for efficient power handling. Reel packaging compatible with automated assembly processes.
These characteristics make the Bourns SRP5015TA an excellent choice for demanding industrial, automotive, and power supply applications, including DC/DC converters and other electronic power systems. Explore more in Surface Mount Inductors category for compatible products and system solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 8.2 μH with a tolerance of ±20%.
It supports a maximum DC current of 2.1 A.
The inductor operates reliably within a temperature range of -40°C to 150°C.
The maximum self-resonant frequency is rated at 22 MHz with a minimum quality factor of 10.
The dimensions are 5.7 mm in length, 5.2 mm in height, and 1.3 mm in depth.
It is constructed with a carbonyl powder core, which enhances saturation current.
It is packaged in a reel, making it suitable for automated assembly processes.
The maximum DC resistance is 210 mΩ, ensuring efficient performance.
Yes, it is compliant with AEC-Q200 automotive standards and RoHS.
The termination style is solder compatible, facilitating easy PCB assembly.
This inductor is suitable for automotive applications, including driver assistance systems and electronic power systems.
It features wirewound enamelled copper construction, which enhances durability and performance.
